AMD Athlon II – 610e X4

CPU-Z

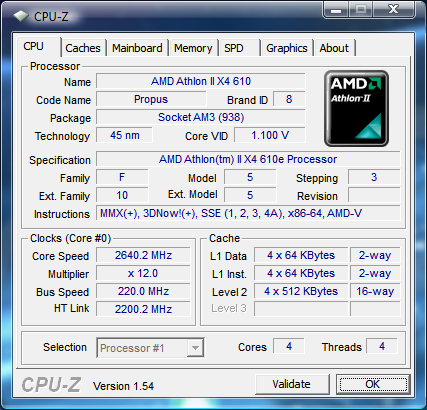

Above you can find the details for the processor obtained with the information tool: CPU-Z. On the left you will find the speed of the processor at stock setting equaling 2.4 GHz. On the right you will find overclocked speed of 2.64 GHz both achieved at stock processor voltage with modification of the core speed from 200 MHz to 220 MHz. All other settings we left intact.

Phenom II X4 810	2.4 GHz (Stock Speed)	2.640 GHz 10% Overclock

Testing Platform

• Motherboard: Jetway JNC84-LF
• Chassis: Chenboro ES36069 Mini-ITX Home Server/NAS Chassis with integrated power supply.
• Memory: OCZ 5400 2 GB
• Hard Drive: Patriot Warp 32 GB SSD
• Comparison Processor: Phenom II X4 810

Phenom II 810 X4 will be used as a comparison to the 610e. The processor was run at its default speed of 2.6 GHz at 95W – a little more than double than that of the 610e.

PCMark Vantage

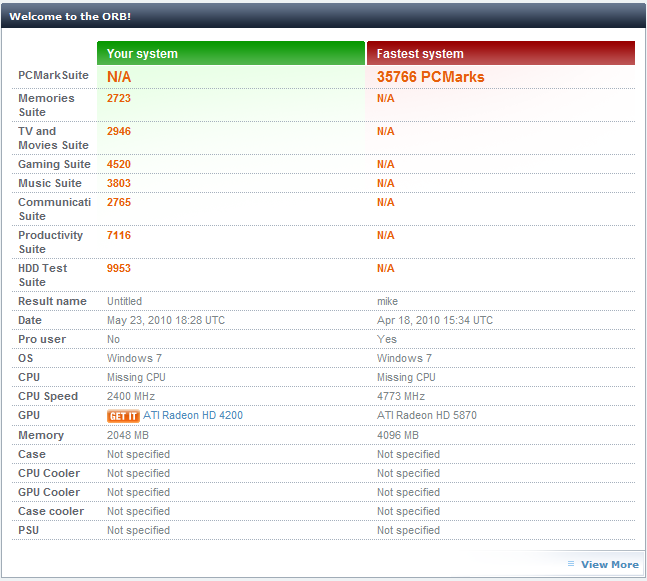

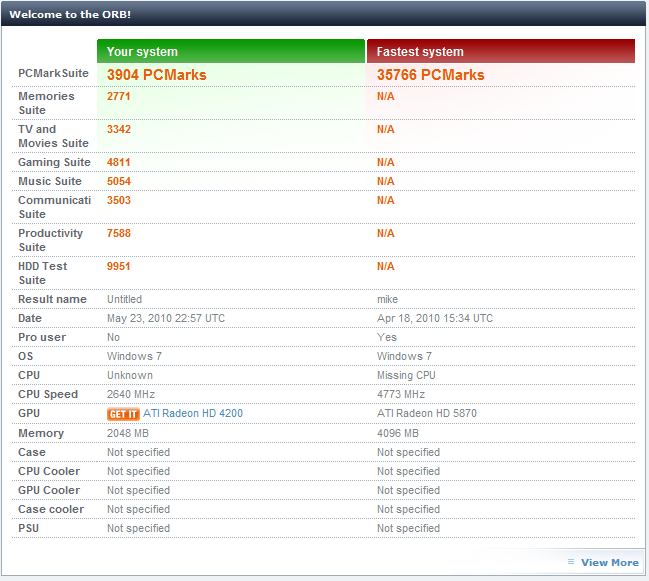

If the engine of a car is essentially its heart, the processor can also be referred to as the heart of a computer system. As such, the processor influences almost every aspect of that systems performance. This can be seen by the category scores in pictures below. A slight increase in clock speed translates into a signficat gain in almost any category. A good exmaple of tha can be seen in the music suite which jumped to 5000s range form the 2700s – almost a two fold increase. To put things slight more into perspective, the AMD 810 obtained ??? in the same test.

Phenom II X4 810	2.4 GHz (Stock Speed)	2.640 GHz 10% Overclock
