Products and Features as tested:
| Amplifier Type |
Class AB |
| Rated Output |
4 Ω |
| Wireless Receiver |
2.4GHz Frequency Hopping/Spread Spectrum Bandwidth 1.5 MBPS |
| Range |
150 feet (50m) |
| Power Supply |
Input – 100/240V switching type
Output – 15VDC/1.3A |
| Package Contents |
Eos Portable Stereo Wireless Speaker/Receiver
Integrated/removable power supply |
| Warranty |
One Year |
|
Portable Wireless speaker/Receiver
- Integrated amplifier 2.1 stereo Class AB amplifier
- Clean, powerful 2.1 stereo sound (2 neodymium tweeters & a ported back-firing subwoofer)
- Wi-Fi Friendly GigaWave® digital wireless audio receiver
- Auto-Link – connects automatically the Eos transmitter, right out of the box. No WiFi network required!
- 150 feet (50m) wireless range
- Wall mountable – patent pending design allows speaker to mount on wall power outlet without brackets
- Removable integrated power supply – for tabletop or bookshelf use
- Rugged enclosure – great for indoor or outdoor use
|
| Frequency Response |
70Hz-20kHz +/-3dB |
| Sensitivity |
83dB @ 2volts/1 meter |
| Nominal impedance |
4 Ω |
| Crossover frequency |
3.5kHz |
| Power handling |
25 watts (50 watts peak) |
| Drive components |
1 in. (2.5 cm) silk dome driver with 5.5 in. (14 cm) magnetically shielded polypropylene cone woofer |
| Dimensions |
9.8” x 7.5” x 7” (251mm x 192mm x 179mm) |
| Speaker Enclosure |
Bass Reflex |
| Weight |
8.25 Lbs. (3.74KG) for each speaker |
| Cabinet Finish |
Black Ash |
| Speaker cable |
10 ft. of 18-gauge cable provided for each speaker |
| Speaker Connectors |
Binding Posts |
| Package contents |
Two Loudspeakers
Two × 10′ (3m) 18-gauge speaker cable |
| Warranty |
One Year |
|
Eos Loudspeakers
- Acoustically matched to provide the optimum sound quality for the Converge Amplified Receiver
- Incredible Sound Quality – 5″ woofers, paired with 1″ silk tweeters produce deep bass, rich midrange and crystal clear highs
- Bass reflex speaker cabinet
- Rich looking black ash finish with removable black cloth grill
- Binding posts – for high quality speaker wire connection
- Two 10′ (3m) of high-quality 18-gauge speaker cable included
|
| Amplifier Type |
Class D |
| Rated Output |
4 Ω |
| Speaker Terminals |
Spring terminal type |
| Subwoofer Output |
RCA type |
| Audio Input Jack |
3.5mm stereo audio mini |
| Wireless Receiver |
2.4GHz Frequency Hopping/Spread Spectrum Bandwidth 1.5 MBPS |
| Range |
150 ft. (50m) |
| Power Supply |
Input – 100/240V switching type
Output – 24VDC/2.5A |
| Package Contents |
Amplified Wireless Receiver
Power Supply
3.5mm stereo mini cable |
| Warranty |
One Year |
|

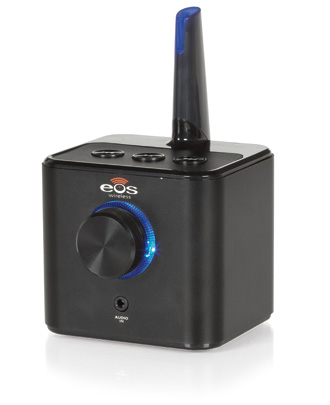

Eos Converge Amplified Receiver
- Clean & powerful, integrated Class D amplifier
- Wi-Fi Friendly GigaWave® digital wireless audio receiver
- Auto-Link – connects automatically the Eos transmitter, right out of the box…no WiFi network required
- 150 ft (50m) wireless range
- Wireless link status indicator LED
- Auxiliary input jack – connect an iPod or other audio source directly to the amplifier
- Speaker connection terminals – connect to any type of speakers or add the acoustically matched Eos Loudspeakers for an incredible sound experience
- Subwoofer output – connect a powered subwoofer for extra bass punch
- Remote control buttons – for controlling track forward/back & play/pause function in iTunes and other software based media players (when used with Converge TX connected via USB port to a computer)
|
| Line Output |
RCA type (stereo) |
| Wireless Receiver |
2.4GHz Frequency Hopping/Spread Spectrum |
| Bandwidth |
1.5 MBPS |
| Range |
150 ft. (50m) |
| Power Supply |
Input – 100/240V switching type
Output – 5VDC/2.5A |
| Package Contents |
Wireless Receiver
Stereo RCA Cable
Stereo “Y” Cable (RCA – 3.5mm stereo mini female)
Power Supply |
| Warranty |
One Year |
|
EOS Converge Receiver
- Wi-Fi Friendly GigaWave® digital wireless audio receiver
- Auto-Link – connects automatically the Eos transmitter, right out of the box…no WiFi network required
- 150 ft (50m) wireless range
- Wireless link status indicator LED
- Wireless transmit on/off button
- Line input jack – connect directly to your home music system
- Stereo “Y” Cable – connect directly to powered multi-media speakers
- Remote control buttons – for controlling track forward/back & play/pause function in iTunes and other software based media players (when used with Converge TX connected via USB port to a computer)
|
| Receivers Supported |
Up to 4 Eos Receivers |
| Computer Connection |
Mini USB |
| Line Input Jack |
3.5mm stereo mini |
| Line Output Jack |
3.5mm stereo mini |
| Wireless Transmitter |
2.4GHz Digital FHSS |
| Bandwidth |
1.5 MBPS |
| Range |
150 feet (50m) |
| Power Supply |
Input – 100/240V switching type |
| Output |
5VDC/350mA |
| Package Contents |
Wireless Transmitter
USB Cable
3.5mm stereo mini audio cable
Power Adapter
|
| Warranty |
One Year |
|

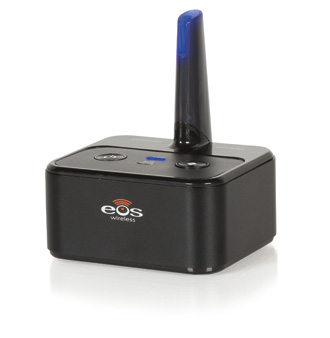

EOS Converge Transmitter
- USB Jack – Stream music directly from Mac or PC
- Line input – Stream audio from virtually any audio source
- Line Output – Connect to powered speakers or home stereo amplifier
- Auto-Link – connects automatically with Eos receivers, right out of the box, no WiFi network required.
- Wi-Fi Friendly GigaWave® digital wireless audio transmitter
- 150 ft (50m) wireless range
- Transmits to up to 4 Eos receivers
- Wireless link status indicator LED
- Source button – switch between USB and auxiliary inputs
- Source LED indicators (USB and Aux)
- Range Extender Switch – increases broadcast range
- Link button – to set unique ID for base and wireless speakers
|
All of these products can be found on the EOS homepage where they allow you to build your own system by selecting the connection type and components you want and need. This allows you to not only customize your system to your desire but it also allows you greater flexibility with your system, allows for expansion, and also helps you to maintain a budget much more easily. As you can see each of the receivers and transmitters has a maximum range of 150 ft (50m) and uses USB as its connection. The components go beyond your typical setup and have a selection of source, as well as line inputs, and indicator lights. It should also be noted that EOS has engineered these units to automatically connect to other units within range for ease of setup.
