In Win Allure – A Unique Computer Case

Closer Look Continued:

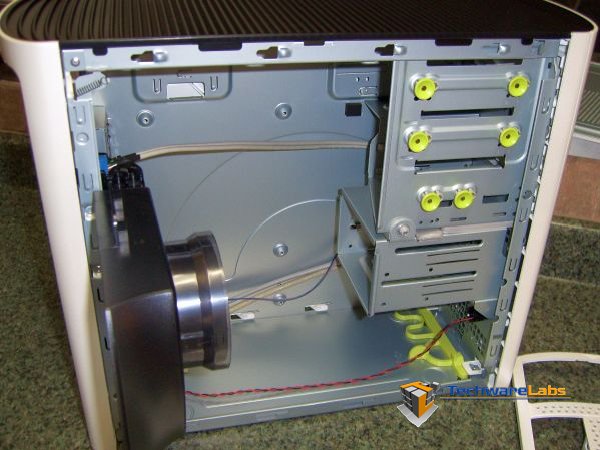

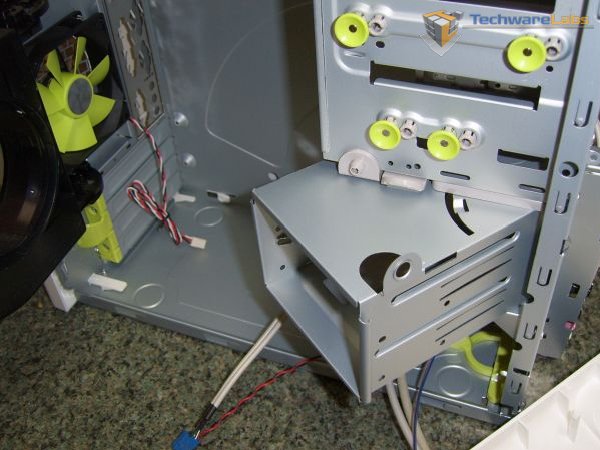

The inside of the Allure is very nicely engineered with the tool-free design.	The 3.5″ drive bay swings out for a quick access to two hard drive slots.

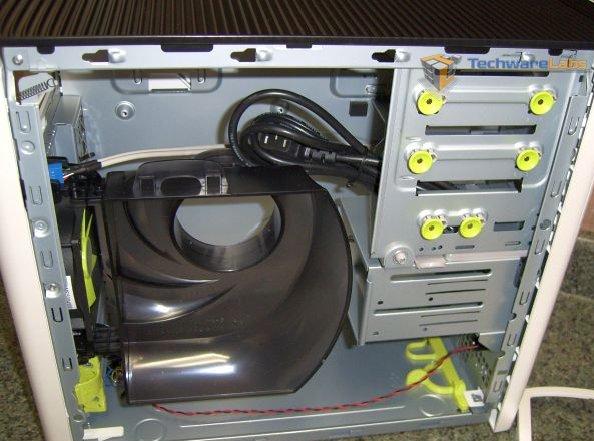

The front panel also comes off with a press of a button.	The cowling for channeling air from the side panel to the processor is on a hindge and swings out of the way.

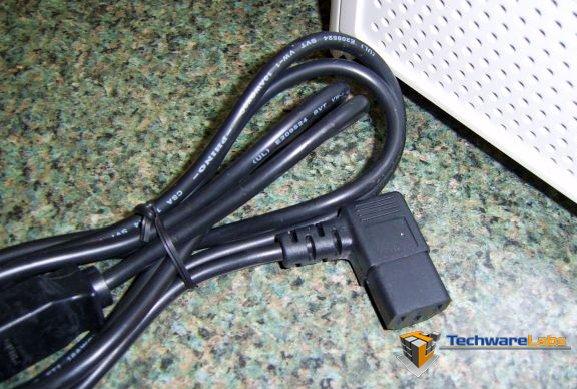

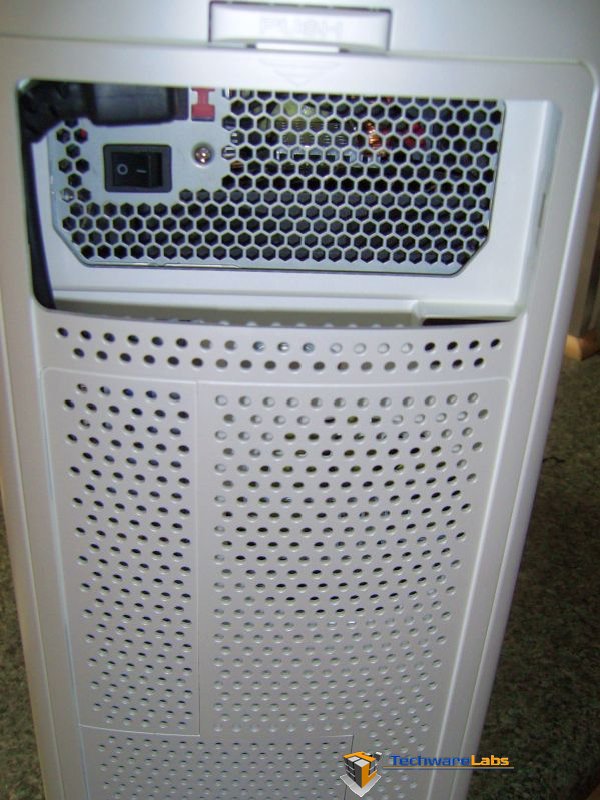

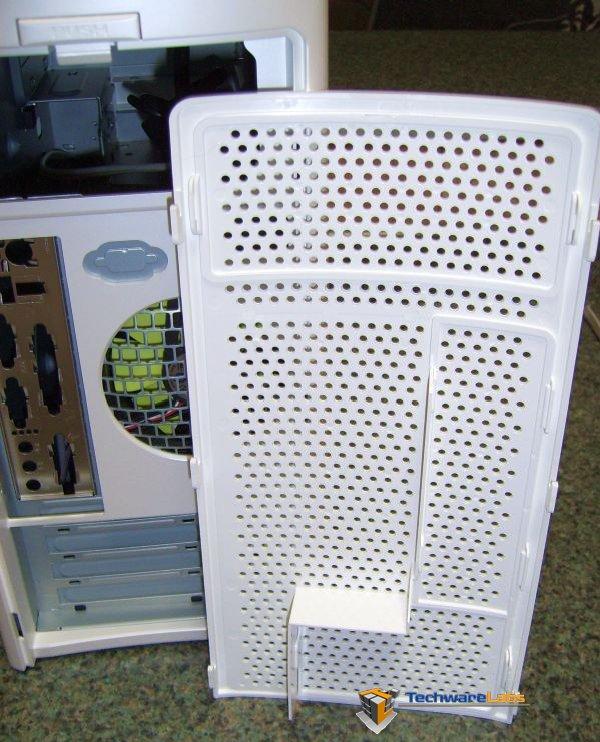

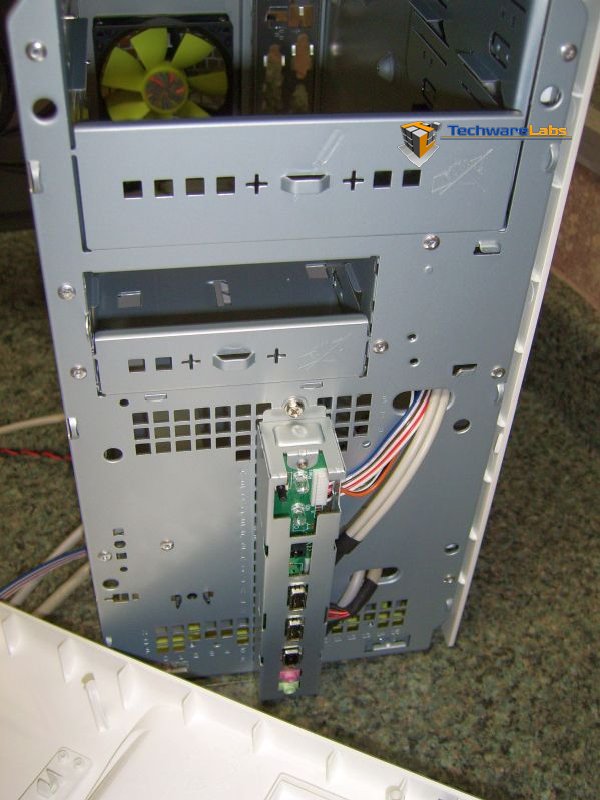

With the back panel removed, you can see the back of the case and what panels one may choose to remove if they need to.	Here we decided to remove the cover which hides the power supply. The case came with a 90 degree power cable which we installed and routed out the bottom of the panel.

After the PC was built and shipped to my niece. My brother purchased a mouse keyboard and a monitor which he tried to hook up all the cables to the PC and reinstall the back cover. Though several attempts were tried, in the end he simply left the rear cover off due to a monitor cable which refused to bend 90 degrees off the plug. This isn’t a huge deal, but a design flaw that we would have liked to see fixed in the design phase.
