Kingston SSDNow V+ 128GB Solid State Disk

A Closer Look

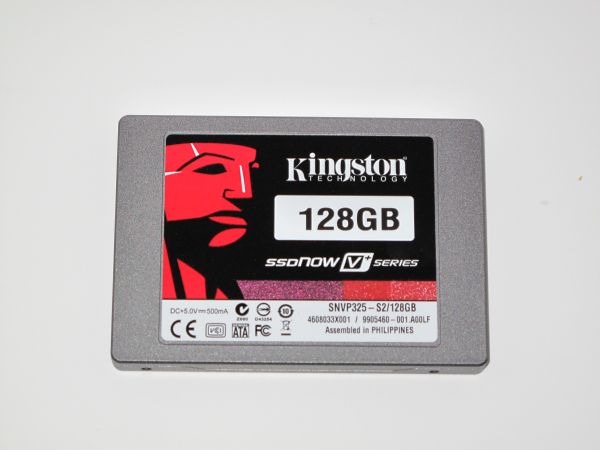

                               The top of the drive is fairly plain. all of the vital information is easy to read and out in the open, making identification easy.

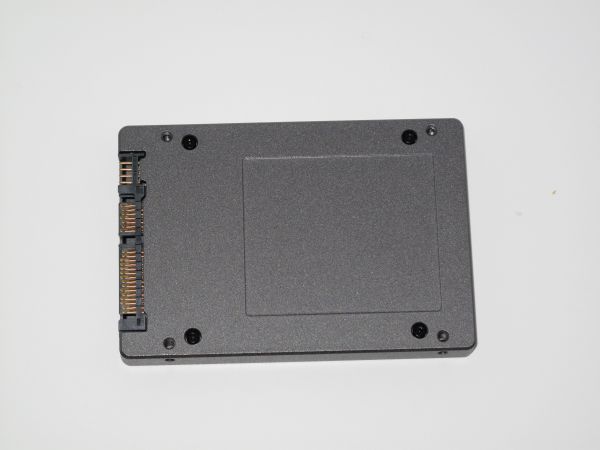

On the bottom of the drive, we see the screw holes that can be used to remove the back cover. if you do remove these and check the drive, you will see that Kingston paired up with Toshiba to make some of the parts, but also that it is solely a Kingston manufactured drive, rather than a re-branded patriot.

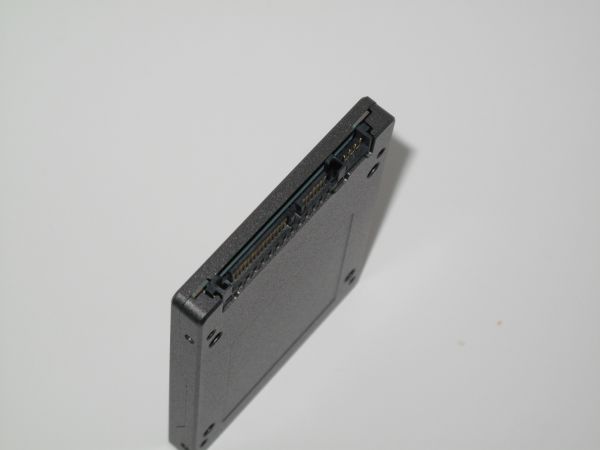

                               On the side of the drive, you can see the SATA cable and SATA power connector.

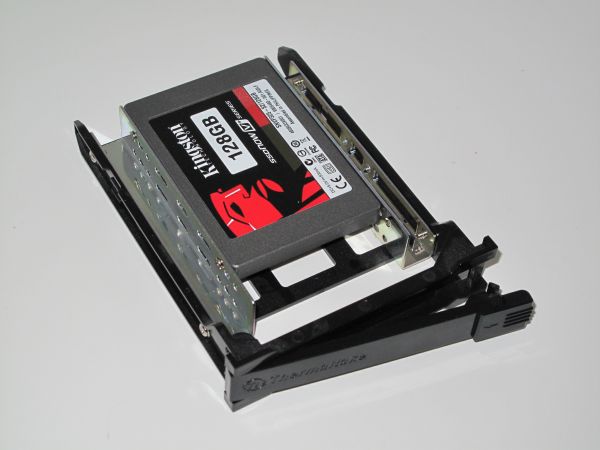

This is the drive mounted in the 3.5″ adapter, which is mounted to a standard Thermaltake HDD tray.


  • Innovative – Uses MLC NAND flash memory components.
  • Silent – Runs silent and cool with no moving mechanical parts.
  • Shock Proof – No moving mechanical parts so the SSD handles rougher conditions.
  • Supports S.M.A.R.T. – Self-Monitoring, Analysis and Reporting Technology tells the user when a drive is about to fail
  • Guaranteed – 3 year legendary Kingston warranty, 24/7 tech support


  • Capacity* – 64GB, 128GB, 256GB, 512GB
  • Storage temperatures – -40 – 85°C
  • Operating temperatures – 0 – 70°C
  • Dimensions – 69.85 x 100 x 9.5 mm
  • Weight – 84 grams
  • Vibration operating – 2.7G (7-800Hz)
  • Vibration non-operating – 20G (10-2000Hz)
  • Sequential Read Throughput – 230MB/s
  • Sequential Write Throughput – 180MB/s
  • PCMark HDD 2005 Score+

64GB – 38,177
128GB – 38,065
256GB – 38,272
512GB – 37,974

  • Form Factor – 2.5″
  • Interface – SATA 1.5 Gb/sec. and 3.0 Gb/sec
  • Power specs – 2.6 W – active / 0.15W Idle
  • Life expectancy** – 1,000,000 Hrs mean time before failure
  • Operating shock – 1500G
