Testing:
Test Rig:
- Motherboard: Gigabyte H-55N-USB3.0
- Processor: Intel Core i5-750 2.66 GHz
- Drive: 64Gb OCZ Agility 2 SSD
- Video Card: Sparkle GTX 480+
- PSU: OCZ Mod X Stream 700Watt Modular
- Case: Thermaltake Lanbox-Lite

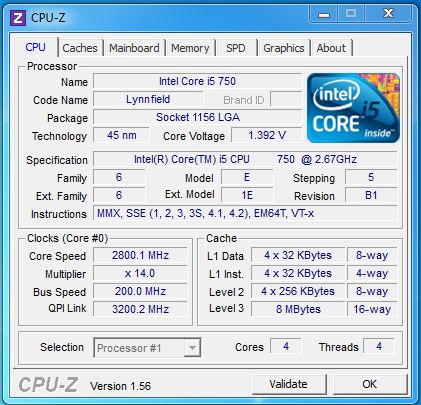

CPU-Z
 |
 |

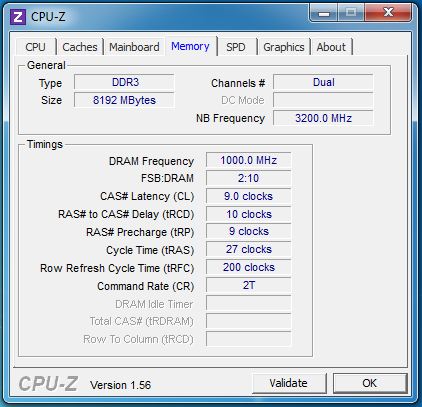

Cpu-z gives you the bare bones information about your system. You can see that the XMP profile has configured my processor up to 2.8GHz with a fourteen multiplier, using a 200 FSB to give us the target memory frequency of 2000MHz.
 |
 |

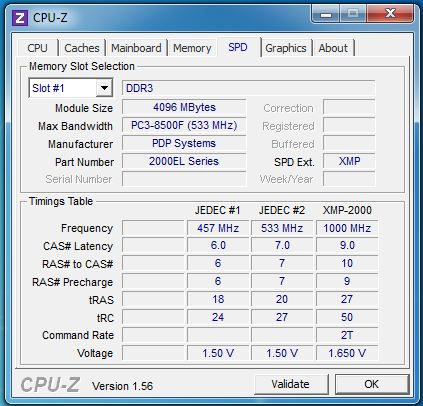

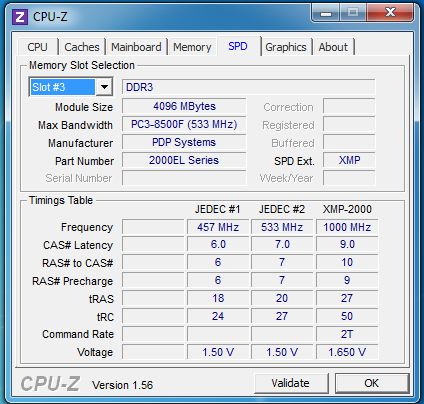

The SPD screens give us the detailed specifications for the dimms, we can see that the CAS latency is exactly as manufacturer specified for the speeds listed.
AIDA64:
 |
 |

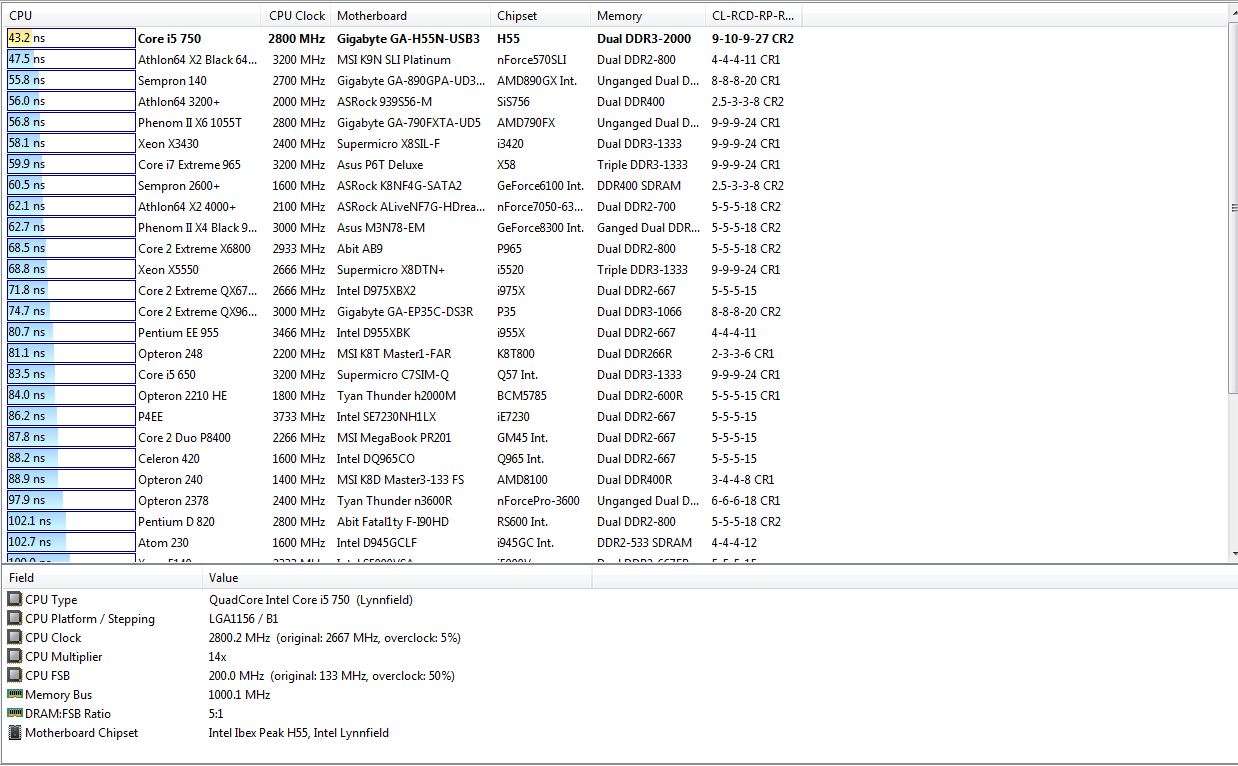

Here we have AIDA’s analysis of the memory allocation and space usage, as well as the Latency benchmark. The results of this memory are very impressive, the latency is significantly lower with this system configuration than even the triple channel kits. The score here is aided by the clock frequency of 2000Mhz, it is important to remember that CAS latency speeds are a relative score, for example, CAS latency 4 on 900MHz ram is still significantly slower than CAS latency 9 at 2000MHz.
 |
 |
 |

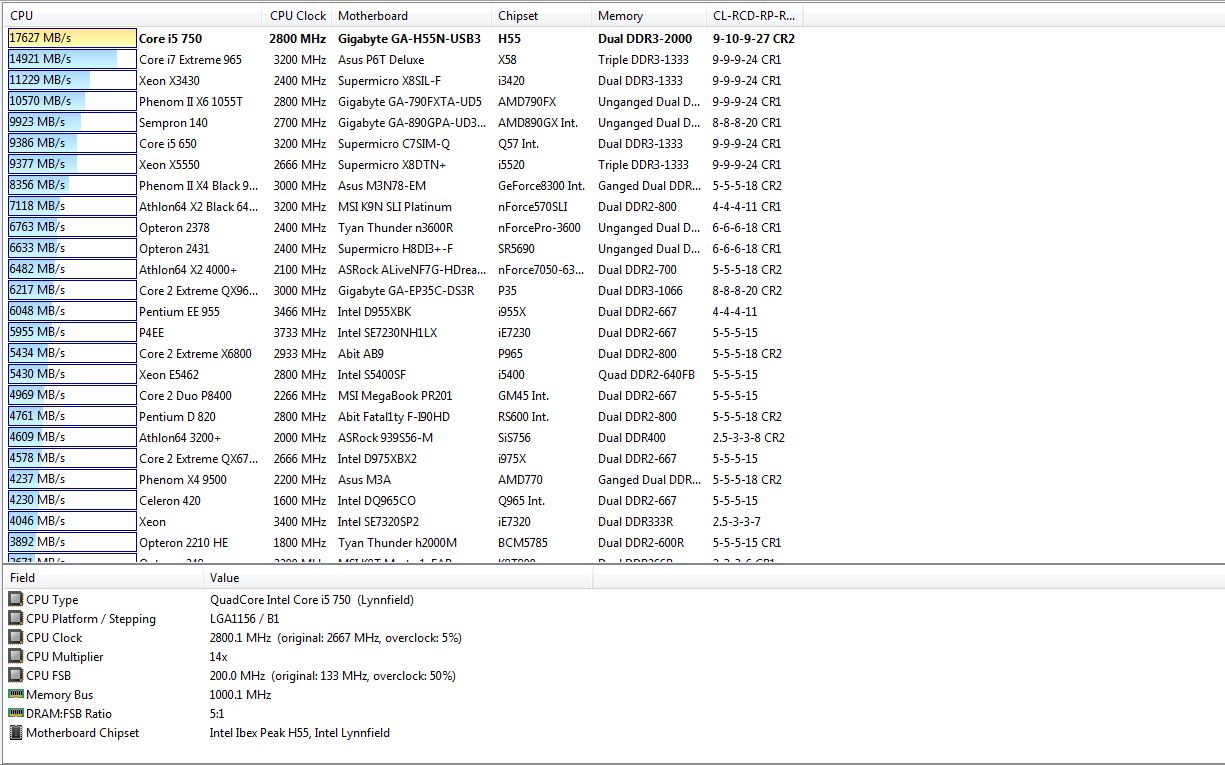

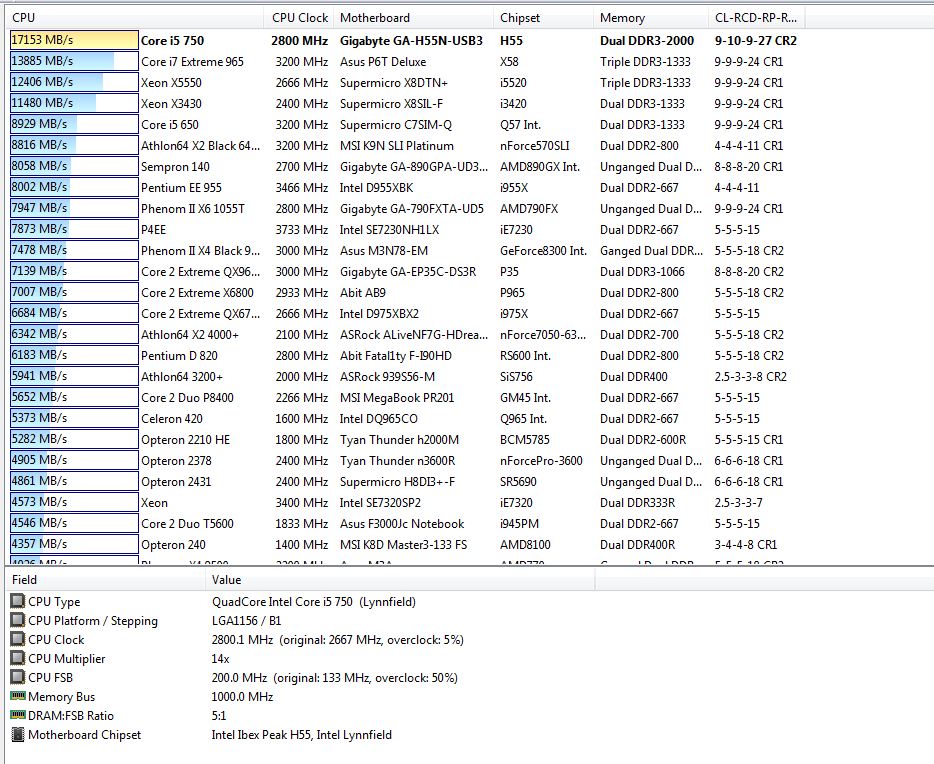

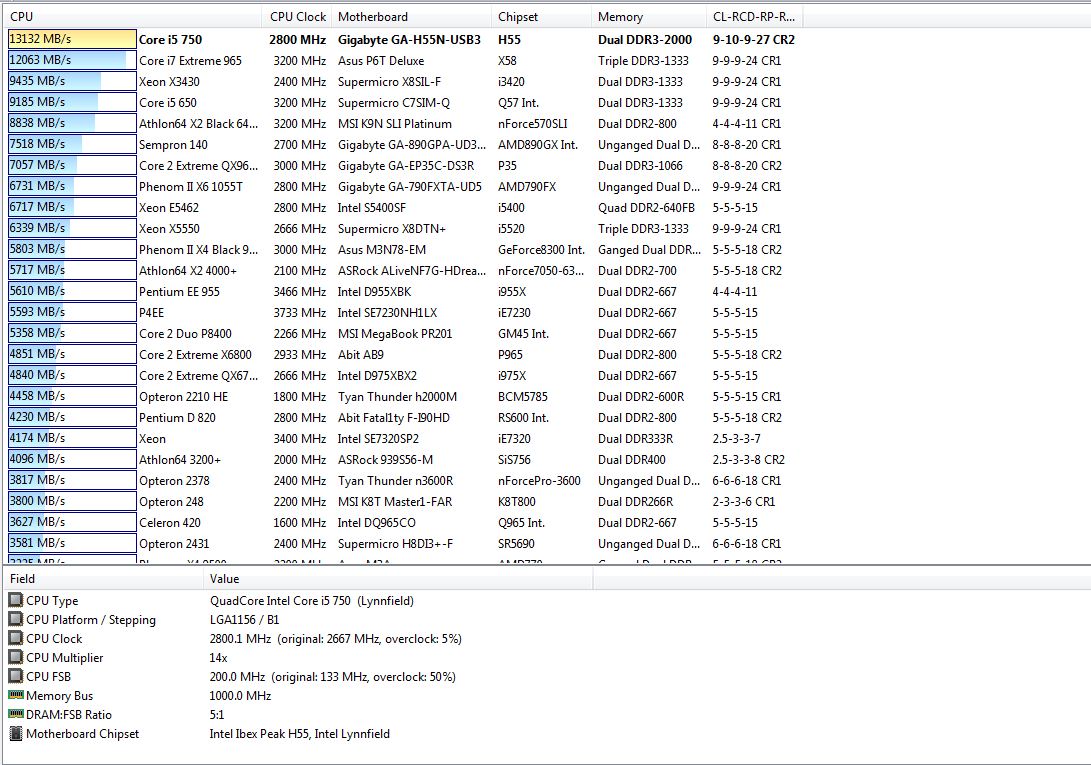

With an 8Gb memory kit at 2000MHz kit, there is no surprise that out scores are at the top of the sheet for all three of the above benchmarks. The read, write, and copy benchmarks give you the raw speed capabilities of the ram.

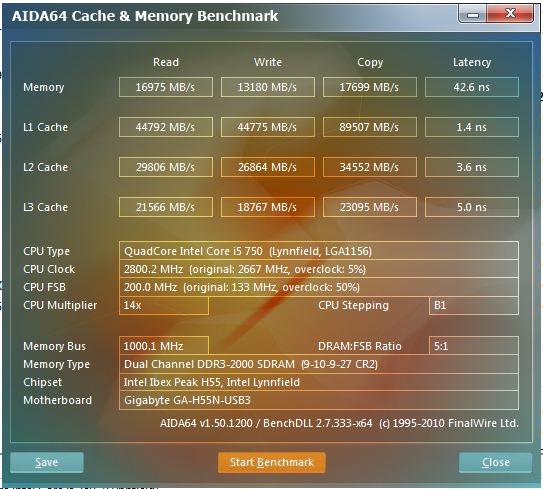

The Memory and Cache benchmark from AIDA provides a graphical representation of the data from the other benchmarks. you can see the read, write, copy, and latency scores directly next to the processor specifications.
