First things first, the Spec’s.
Connectivity:
- Bonjour
- UPnP SSDP
- UPnP AV
- Windows Media Connect
- Windows Media Player NSS
- Samba
- NFS
- Media Servers: myiHome, myiHomeLite, myiHomeMS (UPnP), MSP Portal
- Third-party media servers: WizD, SwissCenter, Llink, GB-PVR
- BitTorrent P2P
- Usenet downloader
- NAS Access : SMB, NFS, FTP
- Casgle iDVR RSS feed downloader
Web Services*
Video :
- YouTube, Vuze, Revision 3, Videocast, CNET TV, Mediafly, Veoh, Mevio, Bliptv, Break Podcast, CBS Evening News, CNN Anderson Cooper 360 Daily, CNN The Larry King Podcast, NBC Today Show, The CNN Daily, CNN In Case You Missed It, NBC Nightly News, NBC Meet The Press, CBS Face the Nation, Podfinder UK, Motorz
Audio:
- Jamendo, iPodcast, BBC Podcast, Indiefeed, CNN News, ABC News
Photos :
- Flickr, Picasaweb, Pikeo, 23, Photobucket, SmugMug
RSS feed :
- Yahoo! Weather, NMT Forum, Bloglines, Cinecast, MSNBC News, Traffice Condition, Yahoo! Traffic Alerts, Yahoo! News, Weather Bug
Peer-to-peer TV :
- SayaTV
Internet Radio :
- Radiobox, Live365 Radio
Supported Media File Formats
Video containers:
- MPEG1/2/4 Elementary (M1V, M2V, M4V)
- MPEG1/2 PS (M2P, MPG, DAT, VOB)
- MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS)
- AVI, ASF, WMV
- Matroska (MKV)
- MOV (H.264), MP4, RMP4
Video Decoders:
- XVID SD/HD
- MPEG-1
- MPEG-2 MP@HL
- MPEG-4.2 ASP@L5, 720p, 1-point GMC
- MPEG-4.10 (H.264) : BP@L3, MP@L4.0, HP@L4.0, HP@L4.1
- WMV9 : MP@HL
- SMPTE 421M (VC-1) : MP@HL, AP@L3
Audio Containers / Decoders:
- AAC, M4A
- MPEG audio (MP1, MP2, MP3, MPA)
- WAV
- WMA
- FLAC
- OGG
- Dolby Digital
- DTS
- WMA, WMA Pro
- MPEG-1 Layer 1, 2, 3
- MPEG-4 AAC-LC
- MPEG-4 HE-AAC
- MPEG-4 BSAC
- LPCM
- FLAC
- Vorbis
Audio Pass-Through:
- DTS, DTS-HD HR, DTS-HD MA
- Dolby Digital, Dolby Digital Plus, Dolby True HD
Other Formats:
- ISO, IFO navigation
- AVCHD navigation
- Blu-ray** ready (requires addition of compatible BD-ROM and at least 2GB USB memory stick)
Photo Formats:
- JPEG, BMP, PNG, GIF, TIFF
Subtitle Formats:
- SRT, MicroDVD SUB, SSA, SUB/IDX
DRM
- Cardea DRM (WMDRM-ND)
- Janus DRM (WMDRM-PD)
Chipset
- Sigma Designs SMP8643, 667MHz CPU with floating point coprocessor.
Memory
- 512MB DDR2 DRAM, 256MB NAND Flash

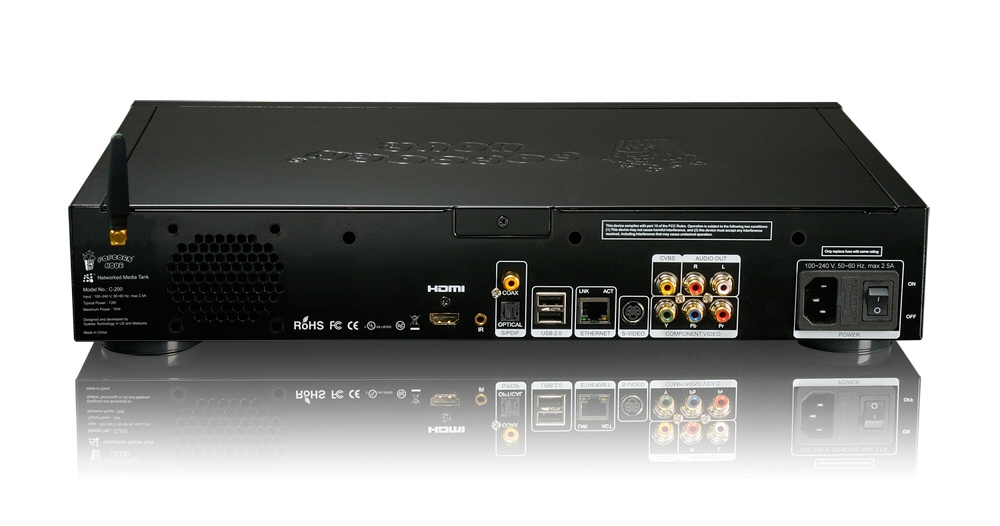

Other Interface
- 192×64 dots white text on blue background LCD display, with software adjustable brightness
- Power button with standby, reset and full power down
- 2x USB 2.0 host at the front
- 2x USB 2.0 host at the back
- 1x USB 2.0 internal
- 2x SATA (one occupied by HDD tray)
- 3.5″ HDD tray
- Internal mounting for 2.5″ HDD
- 2.4GHz RF Remote Control
- Infra-Red Remote Control port (Infra-Red Remote Control optional)
Network
- Ethernet 10/100/1000
- miniPCI MII interface for 11n WiFi card (optional)
Power
- 100~240V AC, 50~60 Hz, max 2.5A
typical: 13 W (no additional device installed/attached)
maximum: 70 W
Footprint
- Width x Depth x Height : 425mm x 290mm x 80mm (16.73″ x 11.42″ x 3.15″)
Weight
- 3.7kg (8lbs 3oz)
