Cooler Master Real Power Pro 550W
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
The power supply is nothing out of the ordinary when it comes to looks; it is simply decked out in a semi-gloss black paint and has a large 120mm blue LED fan. Since this PSU has the EPS12V specification which requires Active PFC, there is no 115/230v switch on the back of the supply. There is an ON/OFF switch for those times the ATX Power button doesn’t respond.

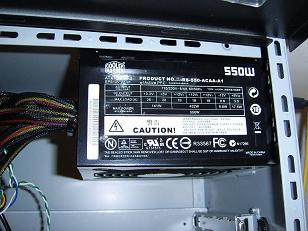

 The PSU is installed in our NZXT case which ends up installed at the bottom of the case upsidedown. |
 With the camera turned upsidedown, the PSU specs can be read off the side of the unit. |
Click on Photos for larger view
| Model | RS-550-ACAA-A1 |
| Type | ATX Form Factor 12V V2.3 / SSI Standard EPS 12V V2.91 |
| Input Voltage | 90~264V (Auto Range) |
| Input Current | 8A @ 115 Vac / 4A @ 230 Vac |
| Input Frequency Range | 47~63 Hz |
| PFC | Active PFC (0.99) |
| Power Good Signal | 100~500 ms |
| Hold Up Time | >17ms |
| Efficiency | >80% Typically |
| MTBF | >100,000 hrs |
| Protection | OVP / UVP / OTP / OCP / OLP / OPP / SCP |
| Output Capacity | 550 Watts Continuous |
| Max. Output Capacity | 660 Watts |
| Dimension (inches) | Standard ATX 150 x 140 x 86 mm |
| Operation Temperature | 0~40℃ |
| Safety | Nemko / TUV / cUL / CE / BSMI / FCC / CCC |
| UPC Code | 870423005216 |
| Warranty | 5 Years |
| AC INPUT | 115/230V ~ 8/4A 60/50Hz "220V~,4A,50Hz" |
||||||
| DC OUTPUT | +3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
-12V |
+5VSB |
| MAX LOAD (A) | 25 |
20 |
19 |
19 |
19 |
.8 |
3.5 |
| MAX Power | 141W |
432W |
9.6W |
17.5W |
|||
550W |
|||||||
 |
 |
 |
 |
4 Pin + 12V CPU x1 |
6 Pin PCI-e x2 |
8 Pin +12V CPU x1 |
4 Pin Floppy x1 |
 |
 |
 |
S-ATA x6 |
4 Pin Peripheral x5 |
24 Pin Motherboard x1 |
