FSP Group Everest 80PLUS 700 Watt PSU

Author:	Mike Santini
Date:	2008.09.30
Topic:	PowerSupply
Provider:	FSP Group
Manufacturer:	FSP Group

FSP Group Everest 80PLUS 700 Watt PSU

Specifications

Here are the specifications for the Everest 80 Plus 700.

Brand	FSP Group
Model	EVEREST 80PLUS 700
Type	ATX12V / EPS12V
Maximum Power	700W
Fans	1
PFC	Active
Main Connector	20+4Pin
+12V Rails	4
PCI-E Connectors	1 x 6Pin, 2 x 6+2Pin
NVIDIA SLI Support	Yes
ATI CrossFire Support	Yes
Modular Cabling Support	Yes
Efficiency	> 85%
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	11 - 5A
Output	+3.3V@36A,+5V@30A,+12V1@18A,+12V2@18A, +12V3@18A, +12V4@18A,-12V@0.8A,+5VSB@3.0A
MTBF	>100,000 Hours
Approvals	UL, CE, CB, FCC, CSA, RoHS
Features	Supports Multi.core CPU System Active.PFC Ultra-high Efficiency Modular Cable Management Thermal Control System Linked To Fan Energy Saver 1.watt Standby Mode Thermal Coating Casing LED Switch
Manufacturer Warranty	Parts: 5 years limited Labor: 5 years limited

Our Test Rig

Gigabyte Poseidon 310
Windows Vista Ultimate x64 -SP1
Gigabyte S-Series MA78GPM-DS2H
AMD X4 9600 Black
4GB of Kingston DDR2-1066 memory
ATI Radeon HD 4850 512MB
ThermalTake Max Orb
Samsung DVD-R/RW

Testing

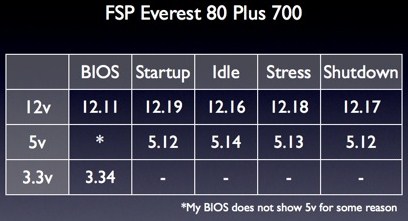

The Everest 80 Plus 700 faired well in it's testing. Tests showed about 1% deviation overall falls well into the specified conditions. ATX standards allow for a -/+5% deviation from specifications, but you want as little deviation as possible. With only a -/+1% deviation, the Everest 80 Plus 700 receives a good rating. The Everest 80 Plus 700 has proven itself to be very stable. While monitoring, we found little swagger from the results shown. A stable power supply will be easier on your components and will probably last longer. For some reason, our BIOS did not show the 5V value.

We used Orthos for stress testing and a digital multi meter for voltage testing.
