NESTEQ ECS7001 700W POWER SUPPLY UNIT

Author:	Rafael Rios
Date:	2008.05.07
Topic:	PowerSupply
Provider:	NESTEQ
Manufacturer:	NESTEQ

NESTEQ ECS7001 700W POWER SUPPLY UNIT

Specifications:

The ECS 7001 is a 700W Quadro or Four Rail 12V power supply unit. In layman's terms what this means is that this power supply will have ultra smooth and consistent 12V power to your system via the four +12V rails within this unit. The cooling is done with a 120 mm Silent-Fan, which is controlled by way of an integrated thermo electronic device. This power supply is an ATX12V 2.2 version with an efficiency rating of 86%, which is why they have the 80Plus+ rating listed on the packaging. The unit comes with a 36-month manufacturer's warranty, and has an active PFC of 0.96 .

Connector Outputs

Connector Output	Watts	4-Pin IDE	SATA	FDD	PCI Express	P4 4-Pin	EPS 8-Pin	ATX 20 +4 Pin
ECS 7001	700W	10	10	4	4	1	1	1

Cable Package

Cable Package	4-Pin IDE 400mm	SATA 400mm	FDD 50mm	Exp. Cables 400mm	PCI Express 500mm
ECS 7001	10	10	4	4	1

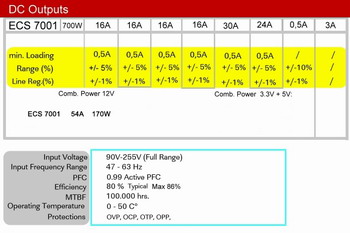

DC Voltage Outputs
