Killer Notebooks Uchigatana

A quick look at the Uchigatana Specifications:

Processor & Cache Memory	Supports Intel® Core™ 2 Extreme processor up to X6800, 4MB L2 Cache, 2.93GHz, 1066 MHz FSB
Operating System	Genuine Windows Vista® Home Premium, Genuine Windows Vista® Ultimate, Genuine Windows Vista® Business *Pre-installed Operating system varies in each region, some may not even have an OS pre-installed.
Chipset	Intel® 945 G Chipset + ICH7
Main Memory	2 SO-DIMM Sockets for Expansion Up to 3GB Support up to 3GB Dual Channel DDRII 800MHz SDRAM
Video Graphics & Memory	NVIDIA Mobile PCI Express Module up to GeForce 8600M GT 256MB/512MB
Display	Up to WSXGA+(1680x1050) Color Shine 15.4'' LCD
Hard Drive	Supports 2.5" 9.5mm SATA HDD 80/100/120/160GB: supports 5400/7200RPM
Thermal	fan-control & multi-heat pipe thermal module
Optical Drive	5.25” 12.7 mm 8X / 24x24x10x(max.), support DVD Combo, DVD Super-Multi, HD DVD and Blu-ray Drive
Video Camera	2.0 Mega pixels rotate CMOS Camera with Face tracking function
Card Reader	8-in-1 MMC/SD/Mini-SD/XD/MS/MS-Pro/MS-Duo/MS-Pro-Duo
Fax/Modem/LAN/WLAN	Built-in 10/100/1000 Mbps LAN Integrated V.92 MDC Fax/Modem w/ Azalia Ver 2.1 compliant 802.11 a/b/g/n Optional built-in Bluetooth® V2.0+EDR
Interface	1* e-SATA Connector 1HDMI 1 D-Sub VGA Port 1* Headphone-out Jack(SPDIF) 1* Microphone-in Jack 1* RJ11 Modem Jack 1* RJ45 LAN Jack 3* USB 2.0 Ports 1* TV-Out (S-video/Composite Video) 1* IEEE 1394 1MCX connector for TV-RF 1Express Card 34 / 54 Support
Audio	Built-in Azalia Compliant Audio Chip Built-in high quality speakers and 2 internal microphones
Keyboard	19 mm full size with MS-Windows function keys 2.5mm travel Vista K/B Start Button
Hot Keys	Power, Turbo Gear, Internet, Email, Touchpad Lock
AC Adapter	Output : 19V DC, 4.73A, 90W Input : 100~240V AC, 50/60Hz Universal
Battery Pack & Life	Li-Ion 6 cells: 4800mAh, 53W (removable): 100 minutes run-down life Smart Battery, 2.5hrs Quick charge 95% (Power Off) / 4hrs (Power On)
Dimension & Weight	367 mm x 268 mm x 34~44 mm (W x D x H), ~3.1 kg (W/6 cell battery)
Supplied Accessories	Built-in Bluetooth V2.0+EDR Finger Print Recognition+TPM 1.2 (Trust Platform Module) Hybrid TV Tuner (Minicard interface)

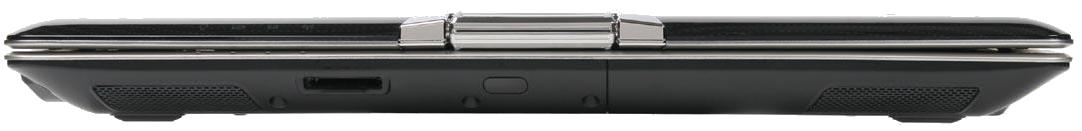

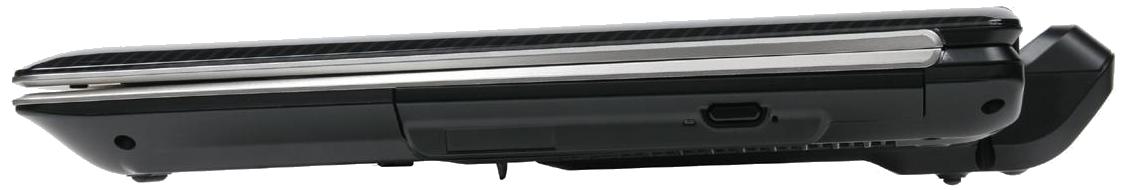

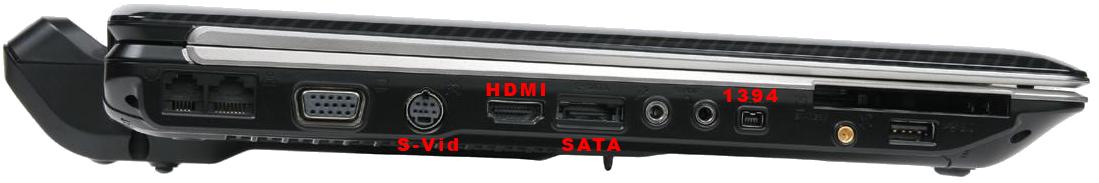

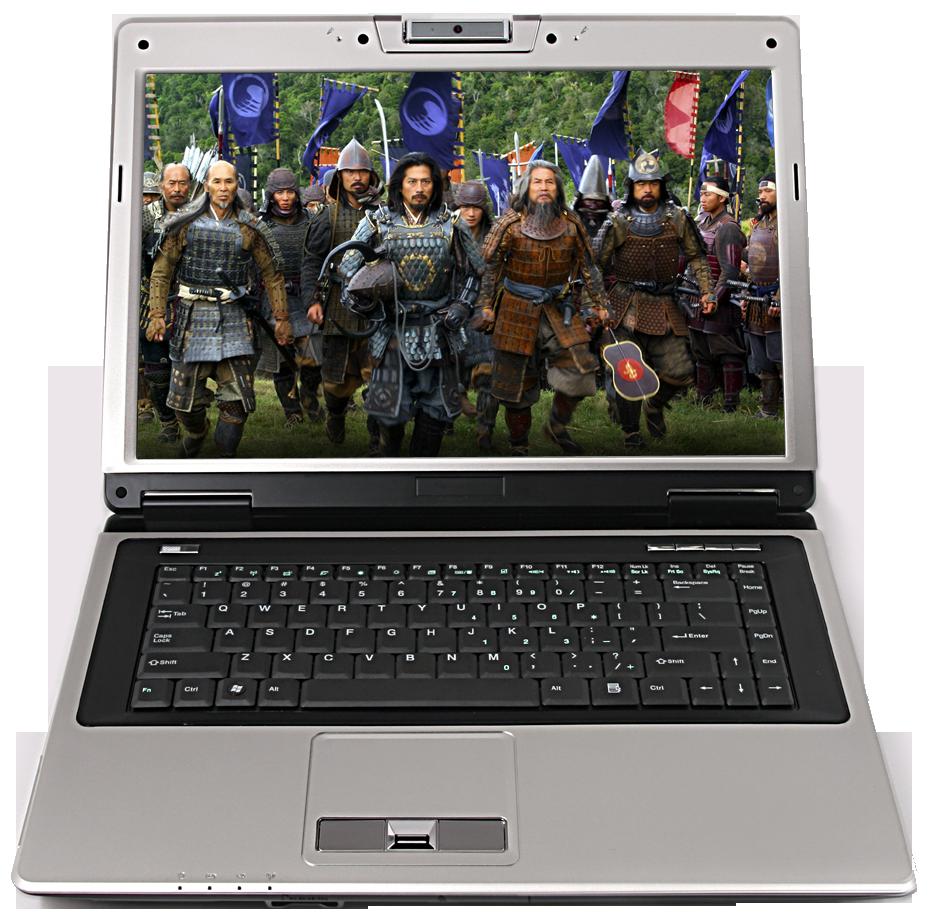

Click on the Thumbnail for a Larger Image

As you can see the Uchigatana boasts desktop style specifications which include the Intel 945G chipset, Socket 775 Support up to the X6800, and even an e-SATA port.

Other benefits of the Uchigatana are the 2.0 Mega Pixel Webcam, built in fingerprint reader, HDMI, and Hybrid TV tuner.

These in addition to a full compliment of other standard ports make this laptop a one stop shop for all your computing needs. Its starting to look like the Uchigatana is more of a 15.4 inch desktop replacement than a portable standard form factor notebook.

What does all this mean for you as a consumer? It means your getting the support from not only Killer Notebooks but your system is based on an Asus chassis so you can look for drivers and support from a large manufacturer and user base.

The inclusion of the 8600 GT video card means that this laptop is also DX 10 compatible and should be fully capable of playing today's games. We will be testing this out in our benchmarks section.
