Sapphire Edge HD2 Mini PC

Sapphire
Whats Under the Hood

Lets take a look at what Sapphire has chosen to put into the Edge HD2.
Motherboard: Pegatron IPPPV-D3G
Guts

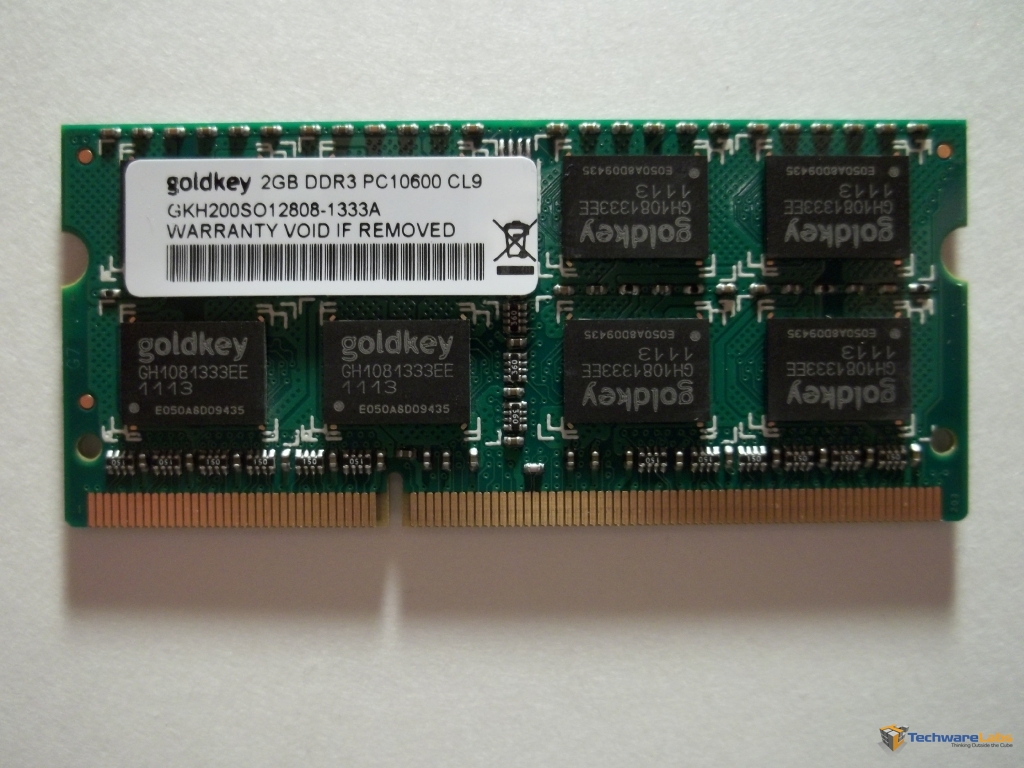

RAM: Goldkey DDR3-10600 2GB on 1x SO-DIMMSapphire lists the included ram to be DDR3-800. Sapphire has included better RAM than listed on the box.  Nice…
RAM

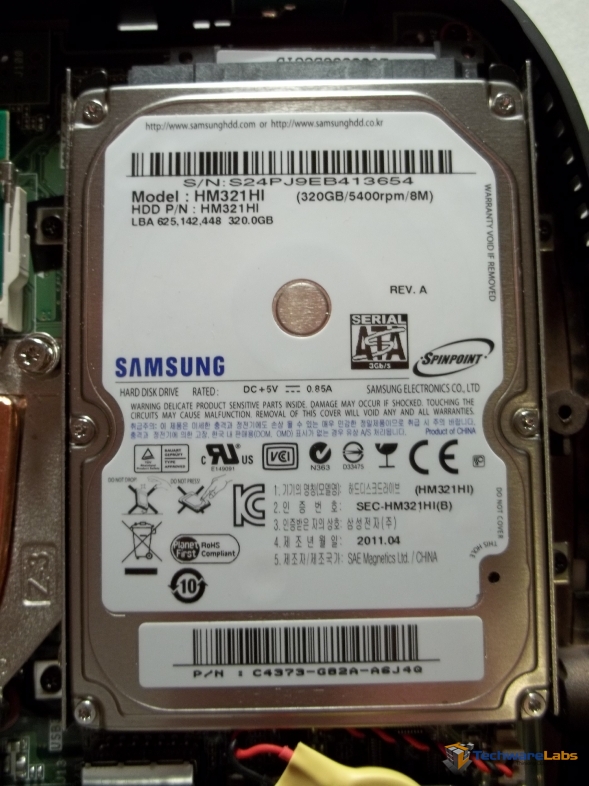

HDD: Samsung Spinpoint 320GB @ 5400 rpm. Nice Name brand.  Plenty of size.  Low rpm means low power consumption.  We’ll Test this drive in benchmarking.
hdd

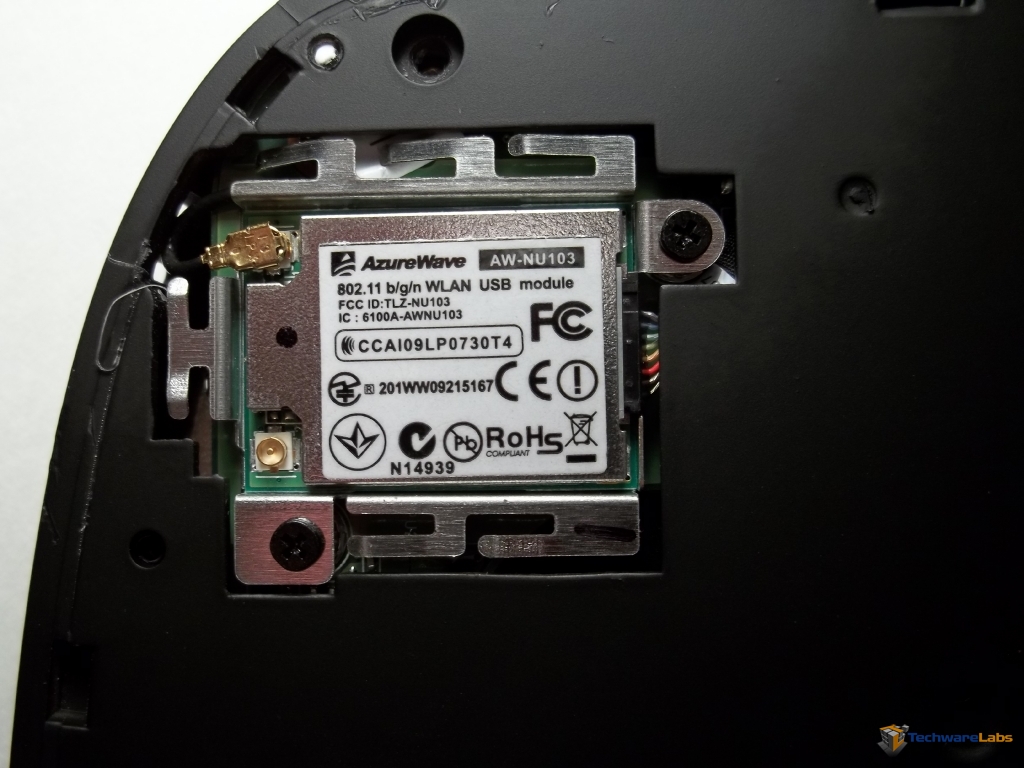

WLAN Adapter: AzureWave 802.11 B/G/N.  Further research shows this card to be a 150Mbps card.  While this is plenty for almost any application, it isn’t enough to stream 1080p HD video.  A “Make or Break” for people looking to use this as a networked media front end.
WLAN

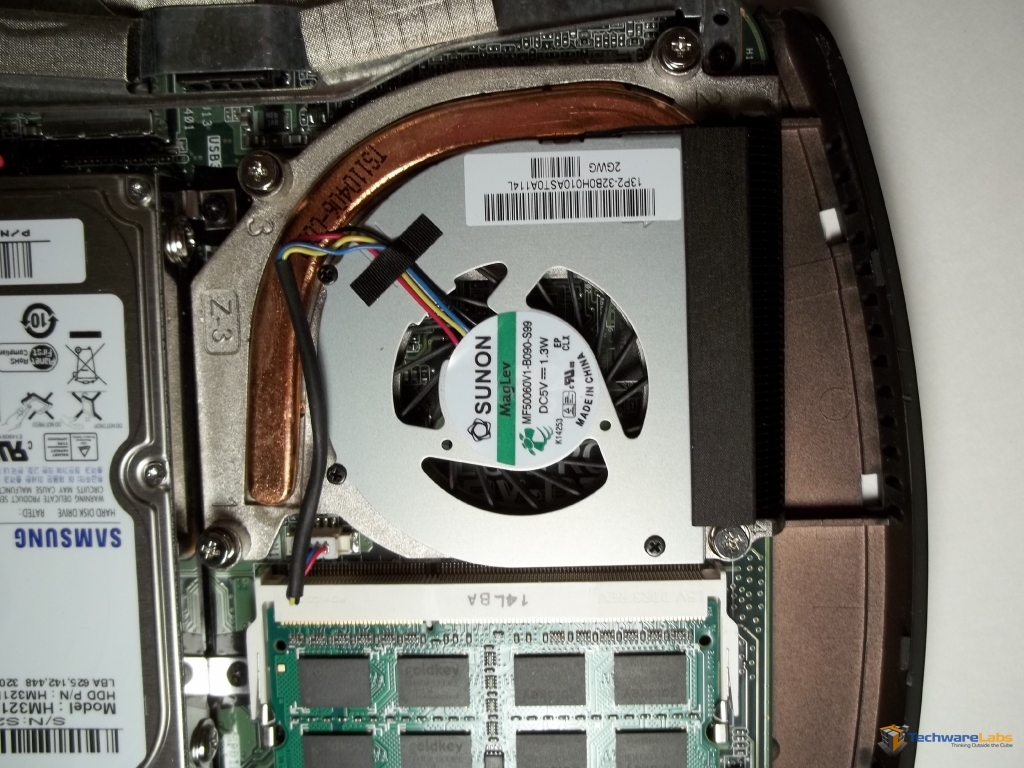

CPU Cooler: Sunon Maglev.  While this cooler looks small it does it’s job.  Check out the tests on the Benchmarking page.
cooler

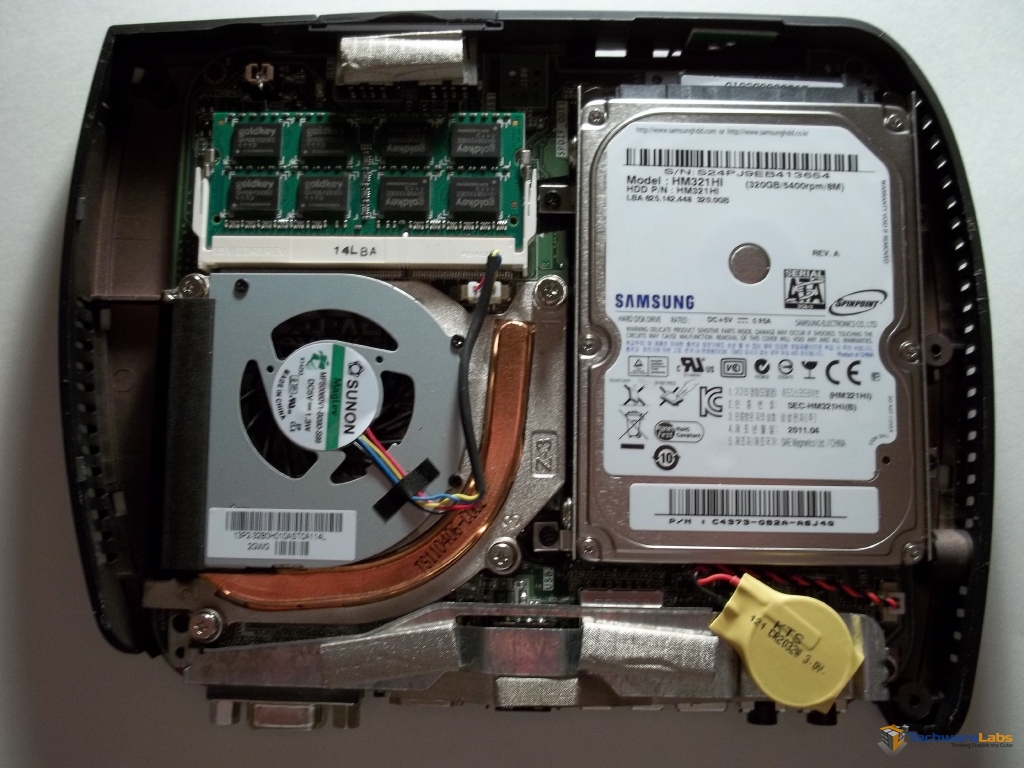

While actually opening the Edge HD2 can present it’s challenges, the internal layout is quite friendly for future upgrades.  Removing the RAM and HDD is no different than upgrading a laptop.
left arrow  Previous Page                  Next Page  right arrow
