Sapphire HD 7850 OC Radeon Review

Specifications:

Output 1 x Dual-Link DVI
1 x HDMI (with 3D)
2 x Mini-DisplayPort
DisplayPort 1.2
GPU 860 MHz Core Clock
28 nm Chip
1024 x Stream Processors
Memory 2048 MB Size
256 -bit GDDR5
4800 MHz Effective
Dimension 210(L)x105(W)x35(H) mm Size.
Software Driver CD
Accessory CrossFire™ Bridge Interconnect Cable
DVI to VGA Adapter
Mini-DP to DP Cable
6 PIN to 4 PIN Power Cable
HDMI to SL-DVI Adapter(Full Retail SKU only)
HDMI 1.4a high speed 1.8 meter cable(Full Retail SKU only)

Test Platform:



Opening the box:

 Sapphire 7850 OC  Sapphire 7850 OC

This is the standard look for Sapphire boxes lately. The little bit of eye candy mixed with a beautiful woman. The back of the box lays out the major features about the HD 7850 OC.  Most notable about the HD 7850 by Sapphire are the items as follows:

  • GCN 28nm architecture
  • GDDR 5 Memory
  • AMD Eyefinity 2.0
  • AMD CrossfireX ™
  • PCI Express ™
  • AMD APP Acceleration
  • Microsoft ® DirectX® 11
  • HDMI (with 3D) and Audio support
  • AMD HD3D technology



Sapphire HD 7850 OC Sapphire HD 7850 OC

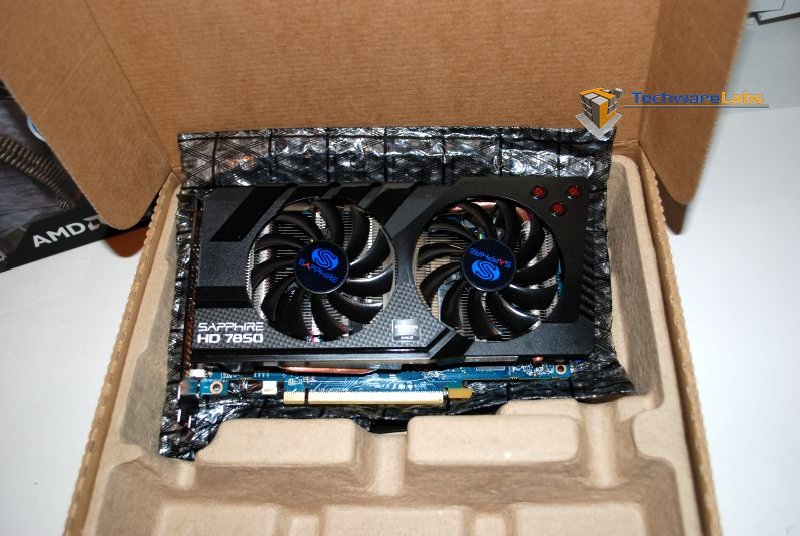

The HD 7850 OC was packed in a really thick padded electrostatic bag and tightly shoe horned into a form fitted box for shipment. There was no damage to our HD 7850 OC card. There were quite a few additional items that were also included in the box, but we will get to them in a bit.

Sapphire HD 7850 OC Sapphire HD 7850 OC

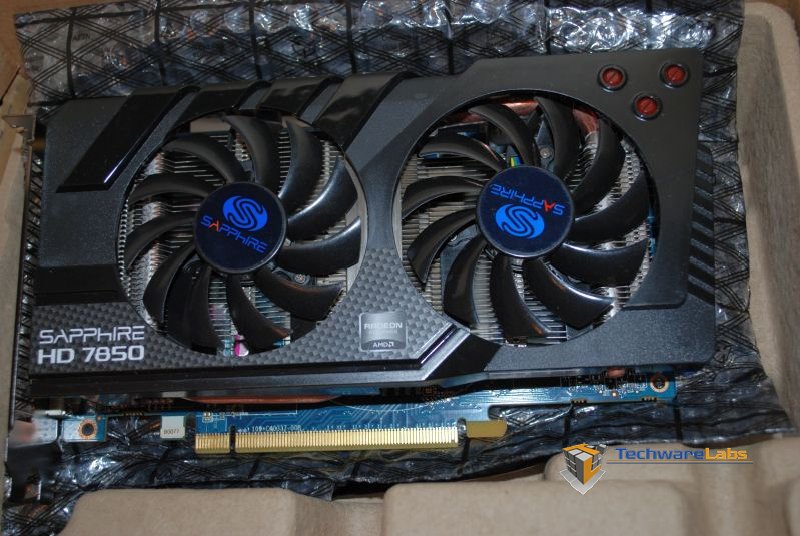

The first looks at the HD 7850 OC we have twin fans which we discovered through benchmarking were actually pretty quiet under load. The black cover is just like the HD 7950 OC just a smaller card with smaller fans.

Sapphire HD 7850 OC Sapphire HD 7850 OC

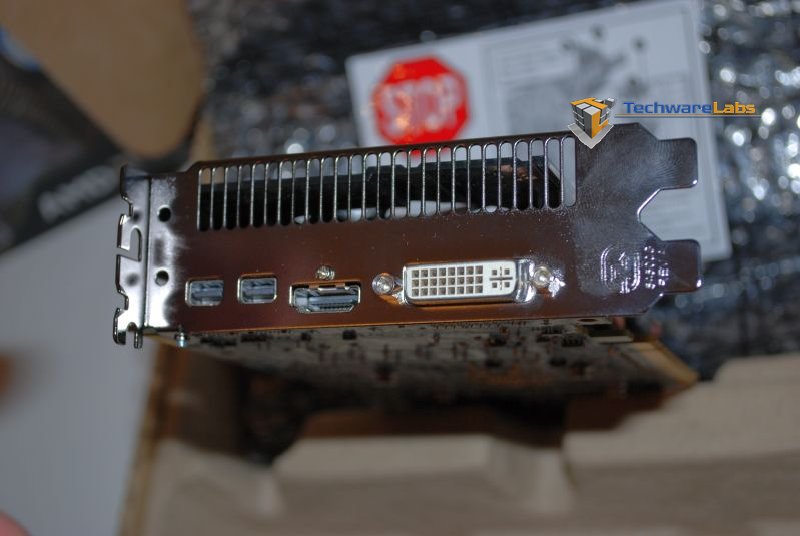

The HD 7850 OC has two mini displayports , one HDMI and one DVI port which are quite the norm with Radeon cards. Since the introduction of eyefinity the addition of mini display ports have been added for the additional monitors. Looking at the other end of the card we see there is only one 6pin power to the card.

Sapphire HD 7850 OC Sapphire HD 7850 OC

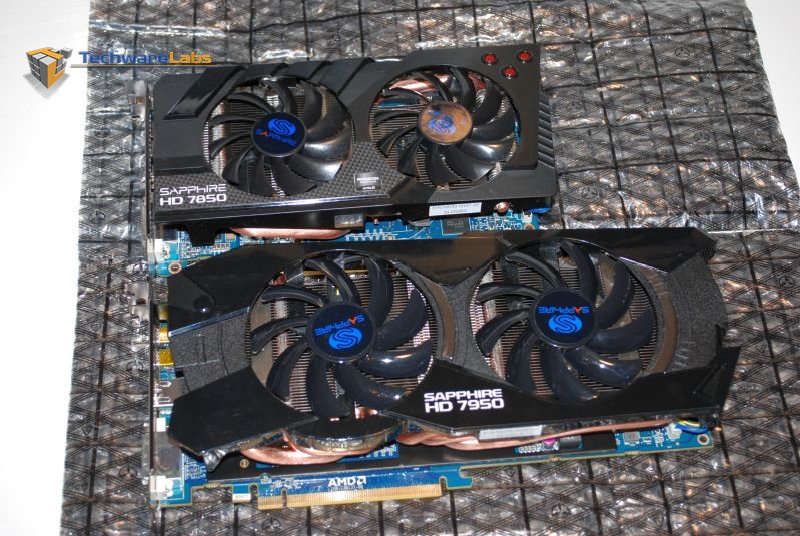

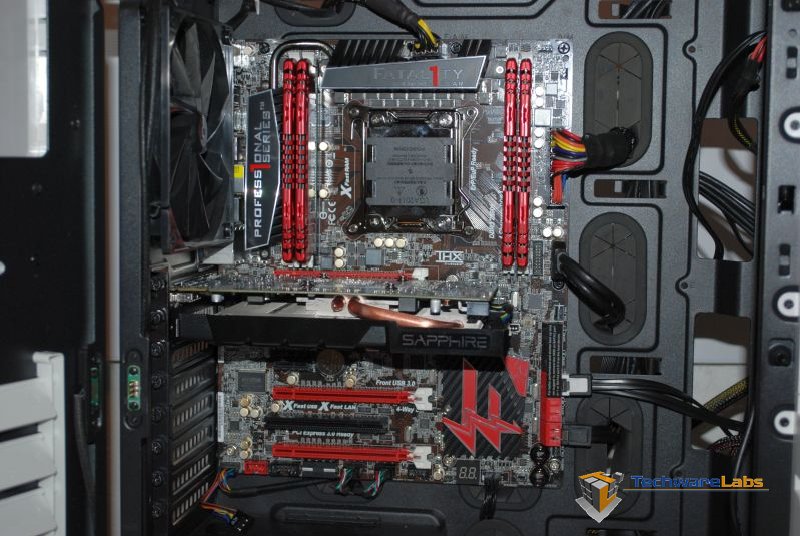

We laid out the HD7850 next to the big brother HD7900 to give you a perspective of the difference in size. We then installed the HD7850 in our test rig which features the ASRock Fatal1ty x79 Professional motherboard where all the benchmarks below were done.
