Silicon Power A80 USB3.0 Portable Hard Drive

A Closer Look

SiliconPowerA80 TechwareLabs

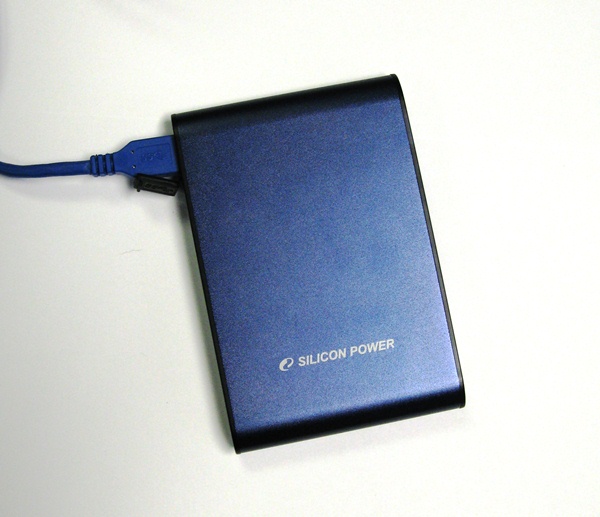

 Sleek blue exterior of the Armor A80 from Silicon Power

Features USB 3.0 connectivity – the latest Universal Serial Bus standard increases maximum transfer rate to 4.8 Gbps. Thats 10x USB 2.0!

SiliconPowerA80 TechwareLabs

SiliconPowerA80 TechwareLabs

 Meets the U.S. military drop-test standard
Waterproof and Shockproof design, includes sturdy dust cover for USB port

SiliconPowerA80 TechwareLabs

SiliconPowerA80 TechwareLabs

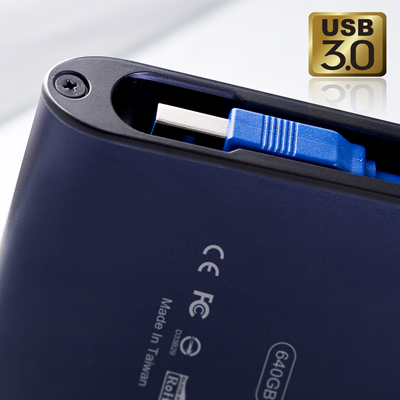

 Drive conveniently stores a short USB 3.0 Cable

Testing

So now lets put this portable drive to the test.  First the drive is connected to a USB 3.0 host controller featured on many of today’s newer motherboards (and available via add-in PCIe cards).  Our test tool of choice is a software application called CrystalDiskMark. It is a synthetic disk benchmark utility that measures the sequential reads/writes speed and random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed.  The results of these tests provide a good indication of disk performance.

Test Rig:

  • AMD Phenom II X4 965 Processor
  • GIGABYTE GA-785GMT-USB3 AM3 785G USB 3.0 Motherboard
  • OCZ AMD Black Edition 4GB (2 x 2GB) DDR3 1600 Memory
  • Western Digital Black Edition Hard Drive 500GB
  • NEC Electronics USB 3.0 Host Controller
  • Windows 7 Ultimate x64 with all latest updates and drivers

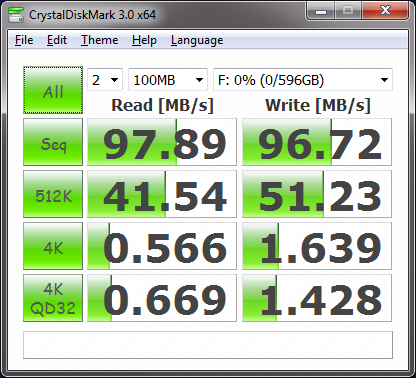

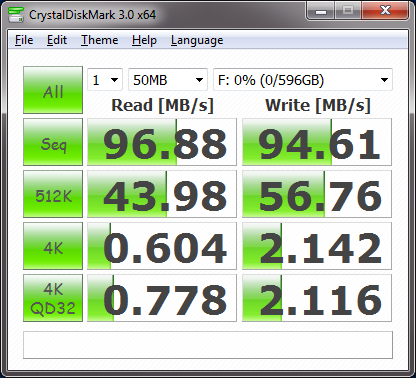

crystaldiskmark_50 crystaldiskmark_100
Test 1: 1 Pass / 50MB Test 1: 2 Pass / 100MB

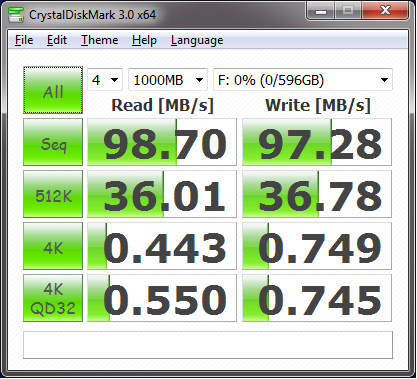

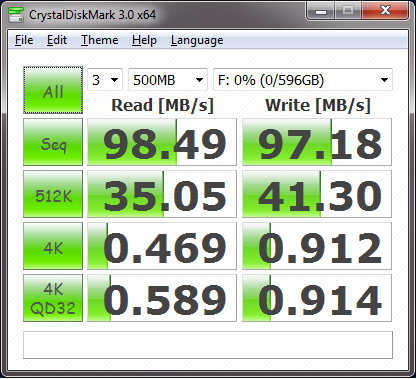

crystaldiskmark_500 crystaldiskmark_1000
Test 1: 3 Pass / 500MB Test 1: 4 Pass / 1000MB

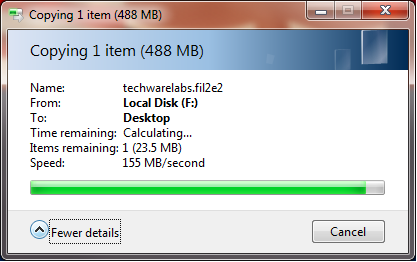

read_from_armora80

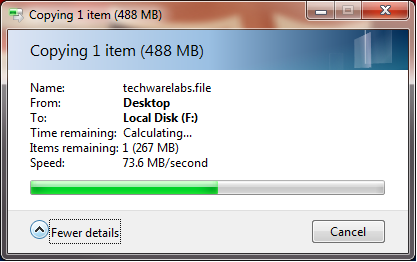

write_2_armora80

For a 2.5″ portable drive that is not limited by the interface connecting the external drive to the desktop system, performance is great. As for utilizing the 5Gbps of USB 3.0 bandwidth, not so much. With the use of a faster drive or better yet a Solid State Drive (SSD) this device’s combination of portability, USB 3.0, and rugged features would really shine. For the device as in, the performance is very good for the cost/GB and when considering all the extra features not readily available with many other competitors portable hard drives.
