TRENDnet TEW-691GR Wireless 450Mbps Gigabit Router

Packaging:

OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



The outer packaging is very standard it highlights the key features, and offers some of the specifications and compliance information.

OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA



OLYMPUS DIGITAL CAMERA

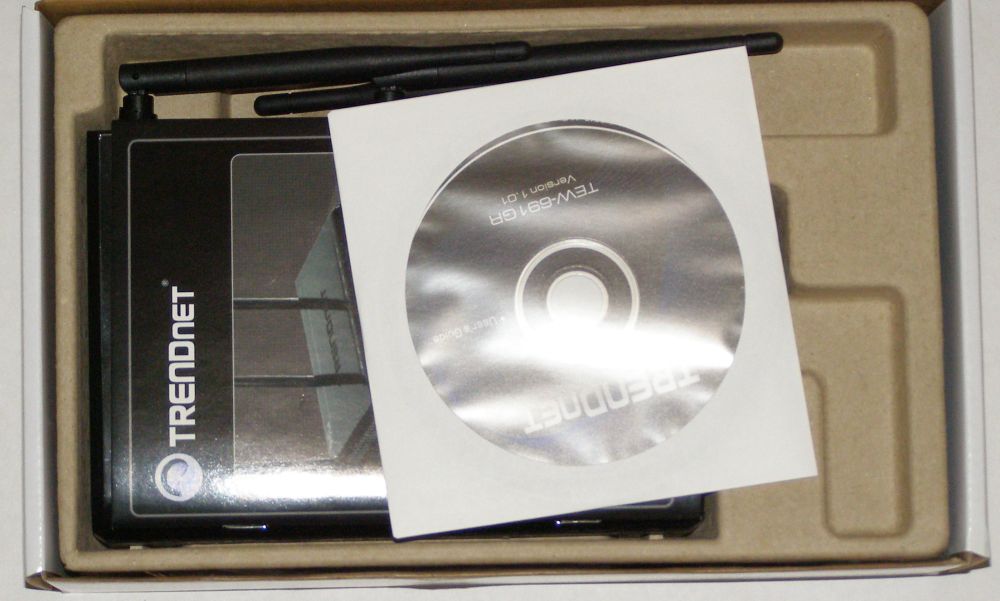

The box contents are pretty standard: router installation disk, router, network patch cable, and power supply. Take note of the IO paenl. They have CLEARLY labeled the wan port with easy to understand color code. IN addition to the color coded ports and the traditional on off switch. They have a hardware WiFi switch. This is nice for those of you who are supremely paranoid. or like tormenting family members. I would like to take this opportunity to applaud TRENDnet for stepping up their design game. This product is significantly more appealing than their legacy “blue boxes”

Features:

  • High-speed data rates of up to 450Mbps using an IEEE 802.11n connection
  • IEEE 802.11n/b/g compliant
  • 4 x 10/100/1000Mbps Auto-MDIX LAN ports
  • 1 x 10/100/1000Mbps WAN port (Internet)
  • On/off power switch
  • On/off wireless network switch
  • 1 x Wi-Fi Protected Setup (WPS) button
  • One touch wireless connection using the WPS button
  • Compatible with most popular cable/DSL Internet Service Providers using Dynamic/Static IP, PPPoE, L2TP, and PPTP connection
  • Advanced firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
  • Access restriction with Internet Access Control: MAC, Protocol, and Domain filtering
  • Virtual server and Application Level Gateway (ALG) services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications like RTP/RTSP, SIP, FTP, TFTP, NTP, and SMTP
  • Multiple pass-through sessions for popular VPN applications (IPSec, L2TP, and PPTP)
  • Advanced QoS support includes: Uplink speed control, IP prioritization, and Wi-Fi Multimedia (WMM)
  • Complete wireless security with WPA/WPA2-RADIUS, WPA /WPA2-PSK, and WEP
  • 3- year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cover-age will vary depending on interference, network traffic, building materials and other conditions.

Specifications:

Hardware
Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)
  • Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
LAN 4 x 10/100/1000Mbps Auto-MDIX port
WAN 1 x 10/100/1000Mbps Auto-MDIX port
WPS Button Wi-Fi Protected Setup (WPS) connects with other WPS compliant devices
WDS Enable/disable Wireless Distribution System support
LED Indicator Power, WLAN, LAN, WPS
Power Adapter 12V DC, 1A external power adapter
Power Consumption 450mA (max.)
Dimension (L x W x H) 148x 180 x 32mm (6.2 x 7.1 x 1.0in.)
Weight 289g (10 oz)
Temperature Operation: 0°~ 40°C (32°F~ 104°F)
Storage: -20°~ 60°C (-4°F~140 °F)
Humidity Max. 90% (non-condensing)
Certifications CE, FCC
Wireless
Frequency 2.412 ~ 2.472 GHz
Antenna 3 x 4dBi fixed dipole antennas
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Data Rate
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 450Mbps
Security 64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Multiple SSID
Output Power
  • 802.11b: 11dBm (typical)
  • 802.11g: 15dBm (typical) 802.11n: 15dBm (typical)
Receiving Sensitivity
  • 802.11b: -84dBm (typical)
  • 802.11g: -72dBm (typical)
  • 802.11n: -69dBm (typical)
Channels 2.4GHz : 1~11 (FCC), 1~13 (ETSI)

This is a serious pile of information, here are the highlights

  • 4 x 1000Mbps Lan ports
  • Wireless B/G/N compatible
  • Supports multiple simultaneous WiFi networks (guest/DMZ/etc.)
  • advanced software features.

Lets take a look at the Interface, and see what options it really has.
