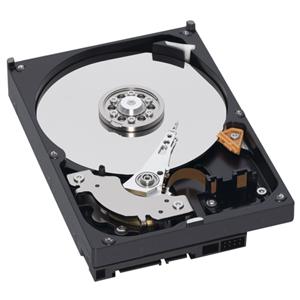

Western Digital Caviar Green 1TB SATA HDD


Performance Specifications

Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 1,000,204 MB
Capacity 1 TB
Interface SATA 3 Gb/s
User Sectors Per Drive 1,953,525,168
Physical Dimensions
Height 1.028 Inches (Max)
Length 5.787 Inches (Max)
Width 4.00 Inches (+/- 0.010 inch)
Weight 1.39 Pounds
Height 26.1 mm (Max)
Length 147 mm (Max)
Width 101.6 mm
Weight 0.63 kg
Environmental Specifications
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 250G, 2 ms
Idle Mode 25 dBA (average)
Seek Mode 0 27 dBA (average)
Seek Mode 3 25 dBA (average)
Linear 20-300 Hz, .75G (0 to peak)
Random 10-300 Hz, 0.008 g² / Hz
Low Frequency 5-20 Hz, 0.195 inches (double amplitude)
High Frequency 20-500 Hz, 4.0G (0 to peak)
Electrical Specifications
Current Requirements
Power Dissipation
Read/Write 5.4 Watts
Idle 2.8 Watts
Standby 0.40 Watts
Sleep 0.40 Watts
As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second.

Western Digital Caviar Green 1TB Drive
