Kingwin 700W Mach 1 Power Supply


Author:  Artiom
Date:  2008.05.14
Topic:  PowerSupply
Provider:  Kingwin
Manufacturer:  Kingwin

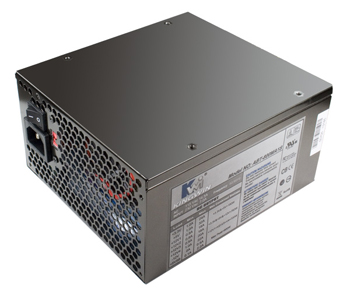

Kingwin 700 Watt Power Supply

Kingwin

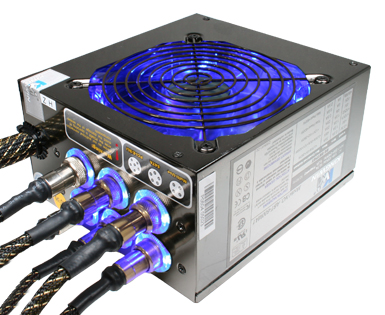

Kingwin Mach 700W PSU

Introduction:

It is another fine day here at TechwareLabs, and today I would like to introduce you to the Kingwin MACH 1 700 Watt power supply. This baby is neat, tidy, and screams out: "I make your awesome case look even better." This power supply has everything: quiet operation, LEDs, and Kingwin even threw a 140 x 140 mm fan into the mix to keep it nice and cool. Looks aside, the question still remains: Does it perform as well as it looks? Read on to find out.

Features:

1
Special cable management system.
2
Comply with Intel ATX/BTX standard.
3
Four PCI express connectors.
4
Six SATA connectors.
5
One bottom blue led fan (140 x 140 mm).
6
Support EPS & Intel 945/955/975x chipset.
7
ATX 12V Ver.2.91
8
AC Input 115 & 230V.
9
Output gold-coated connector
10
Output over / under voltage protection.
11
Output short protection.
12
Over load protection.
13
Nickel-Plated.
14
Quad 12V rails.
15
Nvidia SLI certified.
16
Aircraft style modular connectors.
17
Built in auto fan-speed sensor.
18
NVIDIA® SLI™-ready certified



Specifications:

Maximum power: 700 Watts.
Frequency range: 47 ~ 63Hz.
Input waveform: Sine wave, modified sine wave or square wave.
Input maximum current: 10.7A@115V.
6.2A@230V.
Withstand voltage: Input to output 1800Vac 3 sec.
Input to ground 1800Vac 3 sec.
Efficiency: 70% minimum at full-load.
Overpower protection: 105%~150%
Over voltage protection: +5V output is between 5.7V to 6.5V.
+12V output is between 13.2V to 14.4V.
+3.3V output is between 3.7V to 4.1V.
Under voltage protection: +5V output is between 3.3V to 3.7V.
+12V output is between 8.5V to 9.5V.
+3.3V output is between 2.0V to 2.4V.
Unit dimension: 6 3/8"(161 mm) L x 5 7/8"(150 mm) W x 3 3/8"(85 mm) H
Unit weight: 6 lbs.
MTBF: 100,000 hours under the following conditions full-rated load, 120Vac input, and 25C ambient.
Switches: ATX Logic power rocker switch.
Fan size: 1 - 140 mm x 140 mm x 25 mm bottom fan.



DC OUTPUT
Output Voltage
+3.3V
+5V
+12V1
+12V2
+12V3
+12V4
-12V
+5VSB
Max. Load
24A
30A
18A
18A
18A
20A
0.5A
2.2A
Min. Load
1.0A
1.0A
0.8A
0.8A
0.5A
1.0A
0A
0.1A
Regulation
±5%
±5%
-0.71428571
-0.71428571
-0.71428571
-0.71428571
±10%
±5%
Ripple & Noise(mV)
50
50
120
120
120
120
120
50
Total Power
700W continuous output @ 50C ambient temperature
