Thermaltake Kandalf LCS case

Author:  Jason Dumbaugh
Date:  2008.05.20
Topic:  Cases
Provider:  Thermaltake
Manufacturer:  Thermaltake

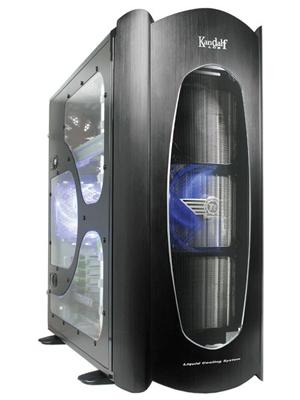

Thermaltake Kandalf Case



Thermaltake Kandalf LCS chassis


With processors having such aggressive speeds these days, there is sure to be a build-up of heat. Heatsinks are increasing in size and using better material, but for the overclockers of the world, liquid cooling is still a necessity. Some cases are so small that a custom liquid cooling system could take up 50% of the case, leaving close to no room for components or cables. Someone shoud just come up with an extremely roomy case that has a built in liquid cooling system. Thermaltake says "We should." I introduce to you, the Kandalf LCS.

Towering at approximately 21.25 inches tall, the Kandalf LCS case comes in either black or white. The front of the case is made of a thick brushed aluminum.



  • All aluminum front door
  • Full tower case with building liquid cooling system
  • Utilize thermal concept of automobile and place radiator in front of computer chassis
  • Offers more extra space within case while radiator in the front door
  • Minimize installation time with partial pre-assembled liquid cooling components
  • ATX/BTX compatible (BTX upgrade kit is optional)




Case Type Super Tower
Side Panel Transparent Window
Net Weight 21.92 kg
Dimension (H*W*D) 540.0 mm x 220.0 mm x 640.0 mm
Cooling System ‧Rear (exhaust) :
120x120x25mm blue LED fan, 1300rpm, 17dBA;
90x90x25mm, 1800rpm, 19dBA
‧Top (exhaust) : 90x90x25mm, 1800rpm, 19dBA
Drive Bays
-Front accessible
Up to 9 x 5.25”, 2 x 3.5”, 6 x 3.5"
Material Chassis:1.0mm SECC
Front door: Aluminum
Color Black
Expansion Slots 7
Motherboards Micro ATX, ATX, Extend ATX, BTX
I/O Ports USB 2.0 x 2, IEEE 1394 x 1, Audio & Speaker ports
BTX Upgrade Kit SRM/Rear plate(option: A9358)
Liquid Cooling System ‧All-in-one waterblock : For Intel BTX platform, P4 775 and AMD K8
‧Performance radiator :
(A) Dimension of radiator : H 407 x W 120 x D 35 mm
(B) Three 1300RPM 120mm fans
‧P500 liquid pump : Power DC 12V liquid pump (500L/hr)
‧Reservoir : Contains 350 c.c. of liquid capacity, easy to refill
‧Water tube : Transparent UV tube (3/8”) & industrial-grade rubber tube.
Container Load 20’-172,40’-361,40’HQ-412
