| CoolerMaster Mini AquaGate |
|
What the kit comes with:

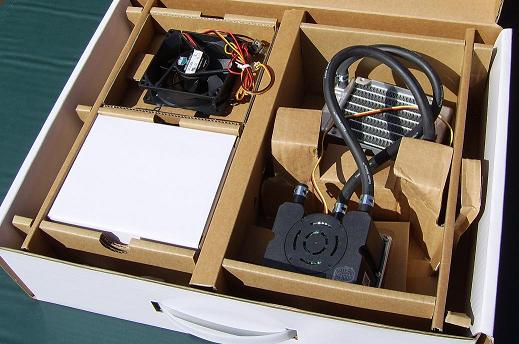

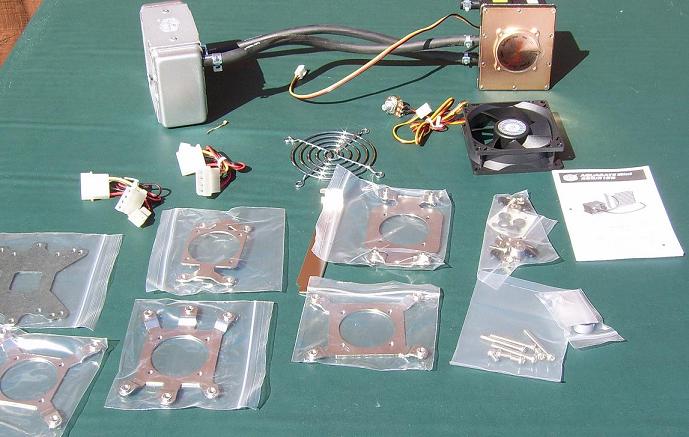

The kit comes with a wate block, piping and radiator preassembled and filled
with coolant. There are a large assortment of mounting bracket to fit all system
processors and motherboards. Finally there a small bag of mounting screws that
to be used to mount the radiator to your case with the 80mm fan. That is pretty
much it. The one part that we did not see and had to obtain is thermal grease.
You will need some fresh thermal grease on the processor after removing your
present heat sink to continue good heat transfer between the processor and the
new water block.
Click on all photos for a larger picture
Specs:
| Material of Base |
Cu. Stacked Fin + Cu. Base |
| Dimension of Base |
70 x 85 x 23 mm |
| Bearing of Pump |
NCB (Nano-millimeter Ceramic Bearing) |
| Fan Dimension |
R80: 80 x 80 x 25 mm |
| |
R120: 120 x 120 x 25 mm |
| Fan Speed |
R80: 1,800 ~ 3,800 R.P.M. |
| |
R120: 800 ~ 2,800 R.P.M. |
| Air flow |
R80: 53.499 CFM |
| |
R120: 106.917 CFM |
| Air pressure |
R80: 8.658 mm-H2O |
| |
R120: 5.604 mm-H2O |
| Fan Noise |
R80: 24.4 ~37.9 dBA |
| |
R120: 21.3 ~ 35.32 dBA |
| Fan Bearing Type |
Long life sleeve bearing |
| Radiator Material |
Aluminum Alloy |
| Radiator Dimension |
R80: 80 x 120 x 45 mm |
| |
R120: 120 x 160 x 35 mm |
| Pipe Dimension |
300 mm x 2 |
| Application |
Intel® Pentium® 4 (Socket 478/LGA 775) processors |
| |
Intel® Pentium® Xeon® (Socket 603/604) processors |
| |
Intel® Celeron® (Socket 478) processors |
| |
Intel® Celeron® D Socket 478/LGA775) processors |
| |
AMD Sempron™ (Socket A/754) processors |
| |
AMD Athlon™ XP (Socket A) processors |
| |
AMD Athlon™ 64 (Socket 754/939/940) processors |
|
|
|
