Coolink's ChipChilla Chipset Cooler Heatsink


Author:  Jason Dumbaugh
Date:  2008.03.05
Topic:  Cooling
Provider:  Coolink
Manufacturer:  Coolink






Coolink's ChipChilla Chipset Cooler Heatsink

Coolink

Most of us spend so much time swooning over our precious CPU coolers and elegant video cards, we always tend to neglect the poor old Chipset. They get hot too! This is why Coolink has invented the new ChipChilla chipset cooler. Standing only 94mm tall, can this chipset cooler stand up to the harsh conditions of the standard chipset? Let's find out!

Your chipset can be responsible for many tasks ranging from communications with your SATA and ethernet to your sound card, south bridge, and busses. Cooling the chipset can be very important and help reduce the stress on this important chip.



Coolink's take:

"Is your chipset overheating? Featuring a large 6mm Dual-Heatpipe and a quiet 60mm fan, the ChipChilla easily chills today's hot & overclocked chipsets while keeping noise at a minimum. Thanks to the asymmetrical design and the flexible mounting system for mainboards with push-pins and mounting-hooks, the ChipChilla offers broad compatibility with Intel & AMD motherboards."



Packaging and Contents:
(click to enlarge)
Coolink ChipChilla Chipset Cooler
Coolink ChipChilla Chipset Cooler
Coolink ChipChilla Chipset Cooler
Gallery picture

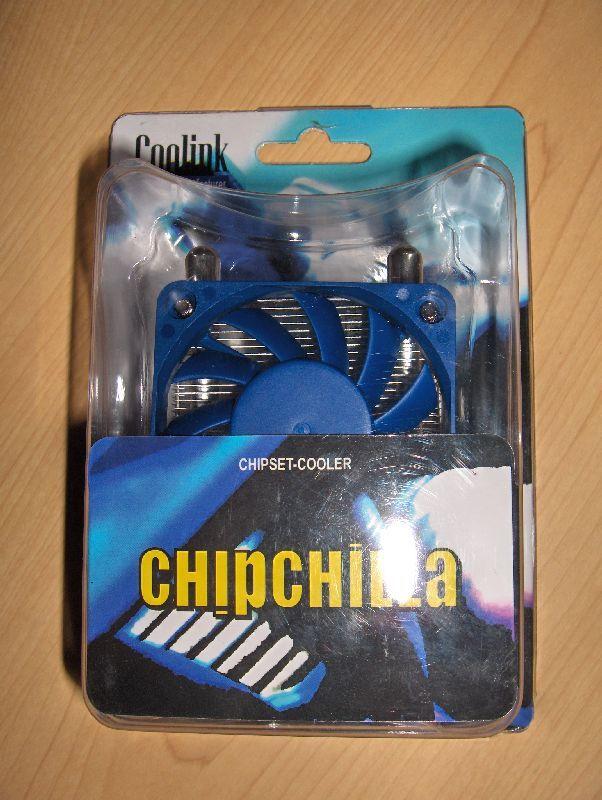

All Boxed Up

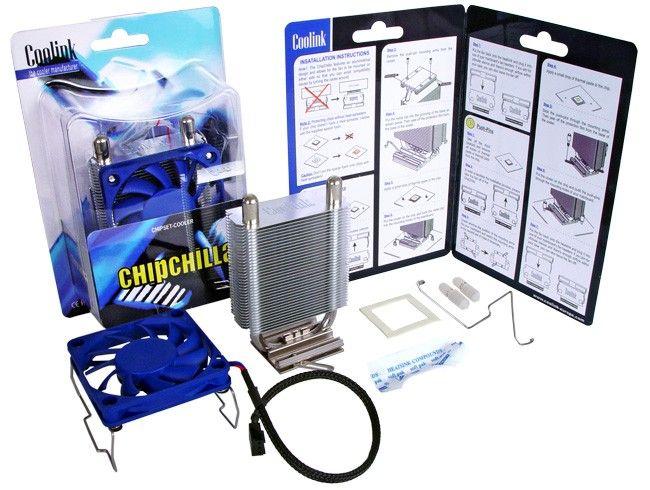

Parts Spread Out
Coolink ChipChilla Chipset Cooler
Coolink ChipChilla Chipset Cooler
Coolink ChipChilla Chipset Cooler
Manual is secretly hidden in the cardboard insert

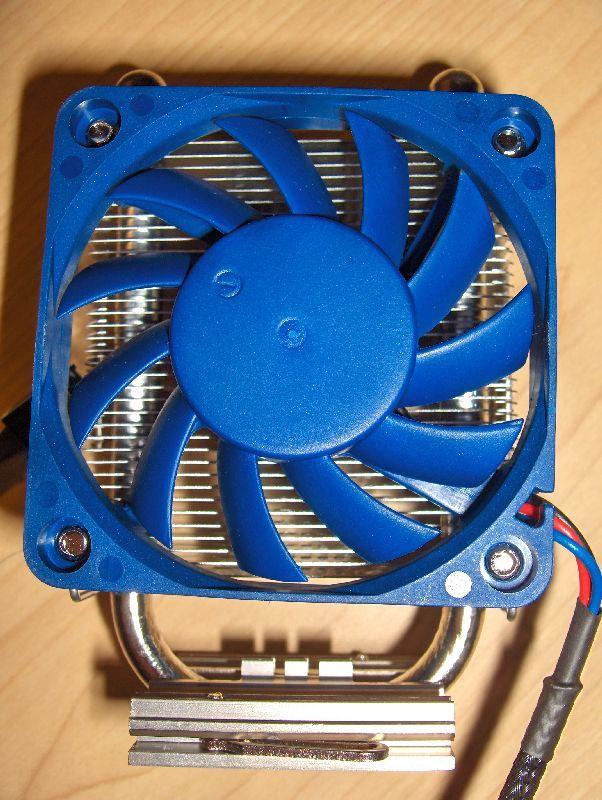

Close-up Front

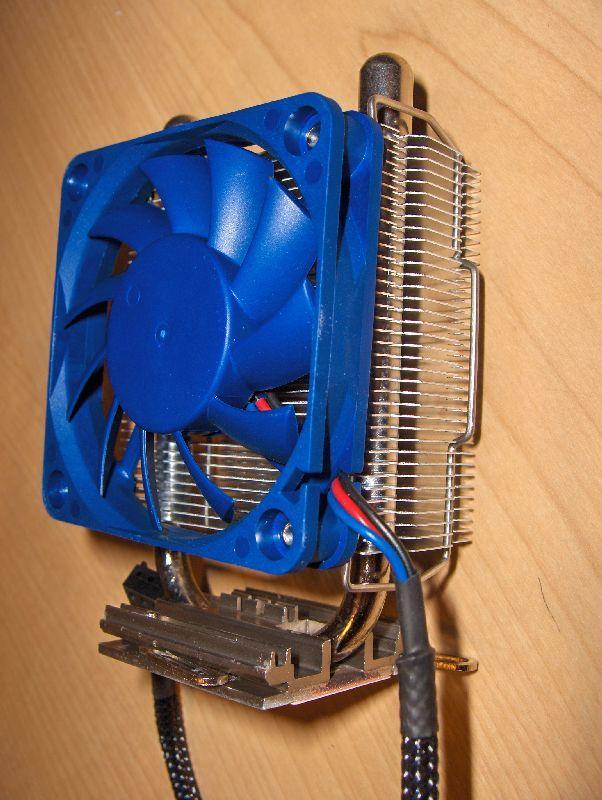

Close-up Side

The ChipChilla comes packaged with thermal compound, a chipset cushion, push-pin mounts, and mounting hooks. The mounting pad is only needed for older chipsets, which do not come pre-installed on the board.



Features:

  • Large 6mm Dual-Heatpipe for maximum cooling performance
  • Quiet 60mm fan for faster heat dissipation at minimum noise levels (19dB)
  • Asymmetrical design ensures optimal compatibility
  • Flexible, easy-to-use mounting system for Intel and AMD mainboards with push-pins & mounting-hooks



Specifications:

Height (without fan) 94mm

Width (without fan)
60mm
Depth (without fan) 32mm
Height (with fan) 94mm
Width (with fan) 60mm
Depth (with fan) 37mm
Weight 130g
Material Copper (base and heat-pipes), aluminium (cooling fins)
Mounting Push-Pins & Mounting-Hooks
Fan 60x60x10mm
Rotational Speed (+/- 10%) 2200rpm
Acoustical Noise 19dB(A)

Scope of Delivery
Cooler, Fan, Mounting Parts, Thermal Paste, Installation Manual

Warranty
3 Years
MSRP € 16,90 ~($25.6613)

Coolink ChipChilla Chipset Cooler
(click to enlarge)
