Scythe Ninja Plus and Scythe Ninja Mini CPU Heatsinks


Author:  Jerry Ashcroft
Date:  2008.02.11
Topic:  Cooling
Provider:  Scythe
Manufacturer:  Scythe






Scythe Ninja Plus and Scythe Ninja Mini

Specifications: Ninja Plus

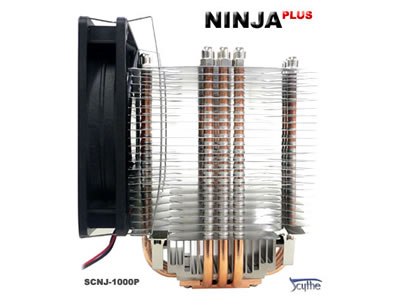

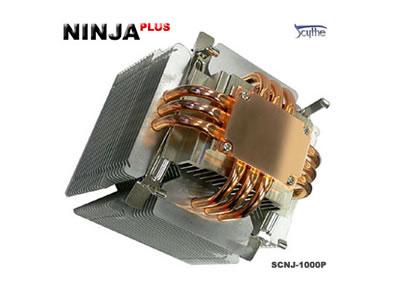

The Scythe Nina is a well known heatsink with a unique take on an already popular design. The concept of a heatsink utiliing heatpipes is not a new one. Where the Scythe differs is in the implementation of this design element. Scythe has adopted a more is better approach with regards to the heatpipes and integrated more heatpipes in a crosshatch design. The heat is carried away from the copper base in both directions instead of one simple U shape which most other heatsinks employ. As you will see below the Scythe uses an X design with 6 total heatpipes. Additionally Scythe has cut the fins that rise from the design in an X fashion to possibly increase airflow and surface area. They have also left a wider gap between fin placement, a design break with traditional heatsinks which results in less fins but may also results in more airflow across the fins. We shall see if this hurts or helps its performance. What Scythe probably intends as the result is a more even distribution of heat across the fins, more airflow, and thus more heat dissipation.

Model Name: SCNJ-1000P
Manufacturer: Scythe Co., Ltd. Japan

Compatibility:
Intel® LGA775 (SocketT) Proessor
Intel® Xeon® Processor (32x0 Series)
Intel® Xeon® Processor (30x0 Series)
Intel® Core™2 Extreme QX6700 processor (Kentsfield =Quad Core)
Intel® Core™2 Quad (Kentsfield Q6600 processor (Kentsfield = Quad Core)

Intel® Core™2 Extreme processor (Conroe)
Intel® Core™2 Duo processor (Conroe)
Intel® Pentium® Processor Extreme Edition
Intel® Pentium® D Processor
Intel® Pentium® 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel® Pentium® 4 Processor supporting Hyper-threading Technology
Intel® Celeron® D Processor
Intel® Socket478 Proessor
Intel® Pentium® 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel® Pentium® 4 Processor supporting Hyper-threading Technology
Intel® Pentium® 4 Processor
Intel® Celeron® D Processor
Intel® Celeron® Processor
AMD Socket940 Proessor
Dual-Core AMD Opteron™ Processor
AMD Opteron™ Processor
AMD Socket939 Proessor
AMD Athlon™ 64 Processor
AMD Athlon™ 64 FX Processor
AMD Athlon™ 64 X2 Dual-Core Processor
AMD Socket754 Proessor
AMD Athlon™ 64 Proessor
AMD Sempron™ Processor



Heatsink Dimensions:
110 x 110 x 150mm
Weight:
815g

Fan
Dimensions: 120 x 120 x 25mm
Speed: 1,200rpm



Specifications: Ninja Mini

Model Name: SCMNJ-1000
Manufacturer: Scythe Co., Ltd. Japan

Compatibility:
Intel® LGA775 (SocketT) Proessor
Intel® Xeon® Processor (32x0 Series)
Intel® Xeon® Processor (30x0 Series)
Intel® Core™2 Extreme QX6700 processor (Kentsfield =Quad Core)
Intel® Core™2 Quad (Kentsfield Q6600 processor (Kentsfield = Quad Core)

Intel® Core™2 Extreme processor (Conroe)
Intel® Core™2 Duo processor (Conroe)
Intel® Pentium® Processor Extreme Edition
Intel® Pentium® D Processor
Intel® Pentium® 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel® Pentium® 4 Processor supporting Hyper-threading Technology
Intel® Celeron® D Processor
Intel® Socket478 Proessor
Intel® Pentium® 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel® Pentium® 4 Processor supporting Hyper-threading Technology
Intel® Pentium® 4 Processor
Intel® Celeron® D Processor
Intel® Celeron® Processor
AMD Socket940 Proessor
Dual-Core AMD Opteron™ Processor
AMD Opteron™ Processor
AMD Socket939 Proessor
AMD Athlon™ 64 Processor
AMD Athlon™ 64 FX Processor
AMD Athlon™ 64 X2 Dual-Core Processor
AMD Socket754 Proessor
AMD Athlon™ 64 Proessor
AMD Sempron™ Processor



Heatsink Dimensions:
110 x 110 x 115mm
Weight: 580 g
Material: x6 Heat Pipes
Aluminum
Copper

Fan
Dimensions: 80 x 80 x 25mm
Speed: 2,300rpm
Bearing Type: Sleeve Bearing
