PQI Turbo 4GB DDR3-1600 kit - Immortality Edition


Author:  Jason Dumbaugh
Date:  2008.08.14
Topic:  Memory
Provider:  PQI
Manufacturer:  PQI






PQI Turbo 4GB DDR3-1600 kit - Immortality Edition

PQI

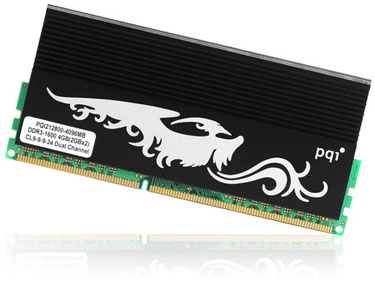

PQI Turbo Immortality DDR3-1600 kit

Introduction:

Today, TechwareLabs takes a look at the new PQI Turbo Immortality Edition 4GB DDR3-1600 kit. With its smooth black finish and heavy duty heatsinks, how will it stand up to other DDR3-1600 kits on the market?



Features:

‧ In compliance to JEDEC standards and compatible with Intel’s X38 chipset, PQI’s Phoenix Series ~ Turbo Immortality Edition DDR3-1600 memory is made of Elpida’s 70nm 128M*8 modules

‧ When working in dual channel, a maximum theoretical bandwidth of 25.6GB/Sec can be reached. Utilizing Intel’s latest XMP (Extreme Memory Profiles) motherboards, the chipset will automatically overclock the modules to boost system performance.

‧ Using high profile heatsinks with increased heat dissipation area (effective up to removing 20% heat), PQI’s Phoenix Series ~ Turbo Immortality Edition DDR3-1600 4GB dual channel kit modules can be cooled effectively when working under extreme speeds and conditions.



Specifications:

Description
  DDR3-1600 4GB (2G x2)
Interface
  240 Pin DIMM
Capacity
  2GB x 2
Data Transfer Rate
  25.6GB/Sec
Write Protect
  Yes
Power Consumption
  1.54V
Dimensions
  133.5 x 30 x 6.2 mm (5.26 x 1.18 x 0.24 in)
Other Information

‧  Chip : 128*8 with 70nm process
‧  Working Voltage : 1.54V
‧  CL : 8-8-8-24
‧  The maximum working frequency : 1688 MHz (1.54V)
‧  Dimension: 133.35 x 30 x 4 mm
‧  Platform Chipset : X38



Real Time Pricing:
