Ultra Stackables: Your Every External Solution Author:  Jerry Ashcroft Date:  2007.12.24 Topic:  Peripherals Provider:  Ultra Products Manufacturer:  Ultra Products

Ultra Stackables: Your Every External Solution

Introduction

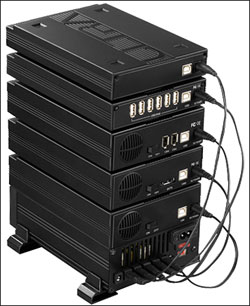

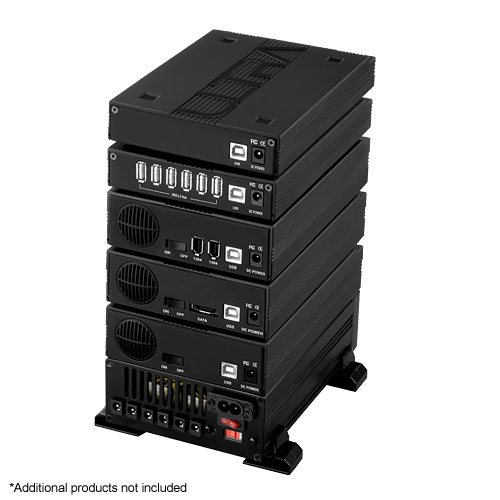

Many companies offer external solutions for most everything you can think of or need. With hundreds of thousands of different hard drive enclosures out there, and equally as many card readers and usb hubs, why should we care about one more? Because, my technology loving friends, we will always need one more, but more importantly, the Ultra Stackables line is special. Instead of having a cluttered mess of external hard drives and an ugly usb hub, and a card reader maybe sticking out of one of these usb ports if you aren't lucky enough to have one integrated into your computer, why not own them all, (or just one, whatever your individual needs are) and have them look smart, be practical, and take up almost no space (comparatively)? Consisting of 5 different pieces, with the ability to add or subtract as many as you wish/need, all stacking perfectly on top of each other (assuming you didn't figure that out from the name), and managing to look smart and tidy.

Specifications

Before going into more detail, let's take a glance at the specs of each individual piece of the Ultra Stacables. Each piece can either plug directly into the wall for power, or into the power supply part which supplies power for all devices, limiting the wires and wall outlets used.

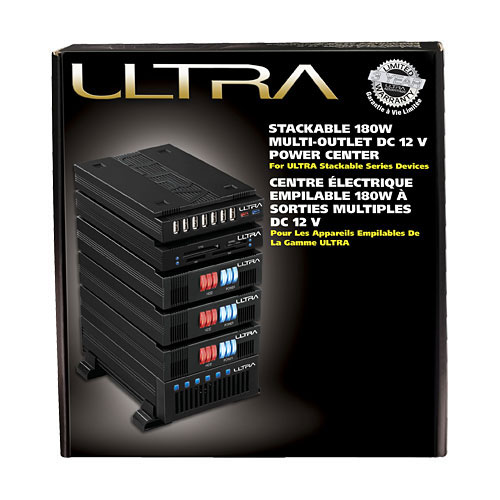

Stackable 180-Watt Multi-Outlet DC 12V Power Center

• Provides 6 DC 12V outlets for other Stackable Series products
• Max Power supplied 180 W
• Input: AC 115/230V
• Frequency : 50/60 Hz
• Output

  Output	Min	Max
  12V +/- 5%	1A	15A

• Short circuit protection
• Over Voltage Protection
• Dimensions: 187 x 120 x 50 mm
• Weight: 900g

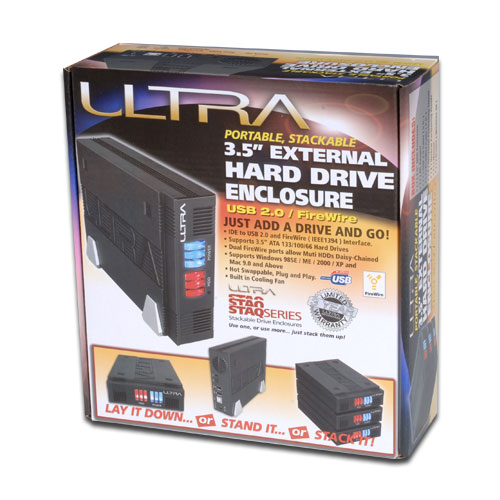

Stackable 3.5-inch External Hard Drive Enclosure (USB/Firewire)

• Dimensions: 184 x 123x 40 mm
• Weight: 300g
• Supports 3.5" ATA 133/100/66 Hard Drives
• 30mm Cooling Fan
• Plug and Play USB 2.0 and FireWire interface
• USB 2.0 Transfer rates 480Mbps
• FireWire Transfer rates 400Mbps
• DC Power 12V
• Front Panel LED indicators

Stackable 3.5-inch External Hard Drive Enclosure (USB/eSATA)

• Dimensions: 184 x 123x 40 mm
• Weight: 300g
• Supports 3.5" SATA Hard Drives
• 30mm Cooling Fan
• Plug and Play USB 2.0 and FireWire interface
• USB 2.0 Transfer rates 480Mbps
• eSATA Transfer rates 3000Mbps
• DC Power 12V
• Front Panel LED indicators

Card Reader and 6-Port USB HUB

• Dimensions: 182 x 121x 28 mm
• Weight: 250.5g
• USB 2.0 Transfer rates 480Mbps
• 4-Port Card Reader / Writer
• 6-Port USB 2.0 Hub
• Hot Swappable, Plug and Play
• Input: DC 12V 2A
• LED Indicator
