AMD Phenom X4 9350e


Author:  Justin Washick
Date:  2008.07.01
Topic:  Processors
Provider:  AMD
Manufacturer:  AMD






AMD Phenom X4 9350e

AMD

Introduction:

AMD has just launched several new processors, one of which being the Phenom X4 9350e, which boasts a 2GHz clock speed and operates at a comparatively efficient 65W. While other Phenom series chips released are aimed at the power-hungry gamer, the 9350e is a low power solution that will not only decrease power consumption, but will naturally run at a much lower temperature than its cousins. At the time of this writing, this processor is not yet available on the market, but will be available for around $195.

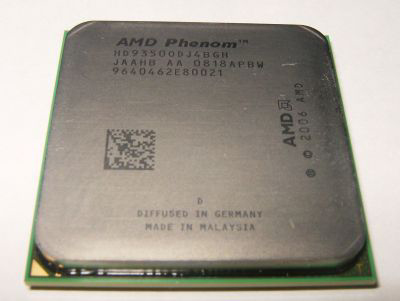

Phenom 9350e

Specifications:

AMD Phenom X4 9000-series processor:
Processor Model / Frequency:                   X4 9350e / 2.0GHz
L1 Cache Sizes:                                         64K of L1 instruction and 64K of L1 data cache per core (512KB total L1 per processor)
L2 Cache Sizes:                                         512KB of L2 data cache per core (2MB total L2 per processor)
L3 Cache Size:                                           2MB (shared)
Memory Controller Type:                           Integrated 128-bit wide memory controller (configurable for dual 64-bit channels for simultaneous read/writes)
Memory Controller Speed:                         Up to 1.8GHz with Dual Dynamic Power Management
Types of Memory Supported:                     Support for unregistered DIMMs up to PC2 8500 (DDR2-1066MHz)
HyperTransport 3.0:                                   One 16-bit/16-bit link @ up to 3.6GHz full duplex (2.0GHz x2)
Total Processor Bandwidth:                        Up to 31.5 GB/s bandwidth
Packaging:                                                  Socket AM2+ 940-pin organic micro pin grid array (micro-PGA)
Fab location:                                               AMD's Fab 36 wafer fabrication facilities in Dresden, Germany
Process Technology:                                   65-nanometer DSL SOI (silicon-on-insulator) technology
Approximate Transistor count:                     ~ 450 million (65nm)
Approximate Die Size:                                 285 mm2 (65nm)
Max Ambient Case Temp:                           70 degrees Celsius
Nominal Voltage:                                         1.05-1.25 Volts
Max TDP:                                                   65, 95, 125 Watts

Real Time Pricing:
