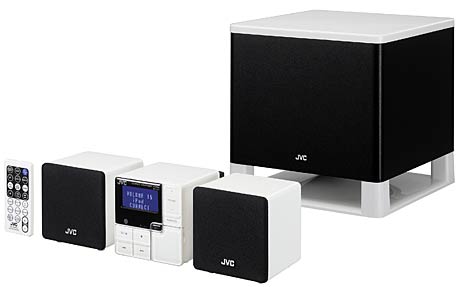

JVC NX-PS1

Author:  Rafael Rios Date:  2006.11.07 Topic:  Audio Provider:  http://www.jvc.com/ Manufacturer:  JVC

System Specifications and Audio Quality:

An overview of the NX-PS1 specifications and features according to JVC is below:

Specifications:
Sound output mode - Stereo
Equalizer - 4 factory presets (pop, rock, jazz, and classic)
Bass Control
Treble Control
Amplifier total output power - 30 Watt - 8 Ohm - THD10 % - 1 channel(s) (Subwoofer)
Main Speaker - 10 Watt - 6 Ohm - THD10 % - 2 channel(s)
Subwoofer - 30
Display - LCD (blue)
Connections - 1x audio line-in, 1x standard USB, 1x USB (4 pin type A), 1x headphones
Digital player supported standards - MP3, WMA
Network Audio Player, USB Flash Player - MP3, WMA
Control type - Micro infrared remote

Dimensions (WxDxH) / Weight:
Right/left channel speaker : 3.5 in x 3.5 in x 3.8 in / 1.4 lbs.
Subwoofer : 8.3 in x 8.7 in x 8.3 in / 7.7 lbs.
Main Display Unit - 3.5 in. x 3.7 in. x 5.5 in. / 1.1 lbs.

2 x Right/left channel speaker - External - 10 Watt - 6 Ohm - Wired
1 x Subwoofer - External - 30 Watt - 8 Ohm - Wired

Driver:
Right/left channel speaker : 1 x Full-range driver - 75 mm
Subwoofer : 1 x Subwoofer driver - 160 mm

Additional Features:

Connection for iPod — Connect, Control & Charge your iPod. Enjoy your music files via the speaker system for greater listening pleasure.
USB Hosting — All-digital connection with a digital audio player (for MP3/WMA playback)
USB Audio Input for receiving signals from PCs
Front AUX Input for easy connection with external devices
Power Output: Total 50W (RMS)
3" (7.5cm) Full-Range Speakers and Separate 6-5/16" (16cm) Subwoofer
Display Dimmer
Clock/Timer with Sleep
Wake-up Volume
Electronic Bass/Treble Tone Controls
MP3/WMA Playback (USB Memory)

Audio Quality:

We connected our 4th generation iPod to the provided cable, and placed the iPod on the provided lay-down cradle. The miniature remote is nearly as small and thin as a credit card. Connectivity is via line-of-sight infrared so you must point the end of the remote directly at the face of the unit. The display shows you the time, connected device or mode ( iPod in our case ) and lets you know if you are connected or not via the display. We adjusted the time and bass and treble to our liking, but the system sports a built-in equalizer with standard presets should you just want to jump in and listen to your music.
The sound quality was extremely amazing for even a much larger stereo system! The bass and treble adjustments were outstanding as was the feedback and response from the tiny remote. Further adjustments to volume, track, bass, treble, etc. went without a hitch from even about 20 feet away. The deep rich sound and nice high hat treble sound was absolutely impressive. Having tried other iPod sound systems I can say without a doubt that this is definitely one of the very best systems tried and tested even compared to those found in sound stores.
