| Nikao Dragon Fire |
|
|
Specs
This dragon fire case is the average midsize case with four
bays of five and a quarter and two bays of three and a half inch. The exterior
of this case is cover with nice high gloss show car black paint job and with
the “Dragon Fire,” theme the case is covered with chrome like
dragon flames.
This case in specific has a few differences other then the dragon flames then
the average case, which includes a fan intake on front and side of the case
which are 2 x 120mm fans. These two fans are pretty quite which usually means
they are not moving much air, but with two fans the flow through the case
was quite a bit which is necessary for today processors and boards which by
a rule of thumb raises the inside case temp by twenty to thirty degrees from
room temperature.

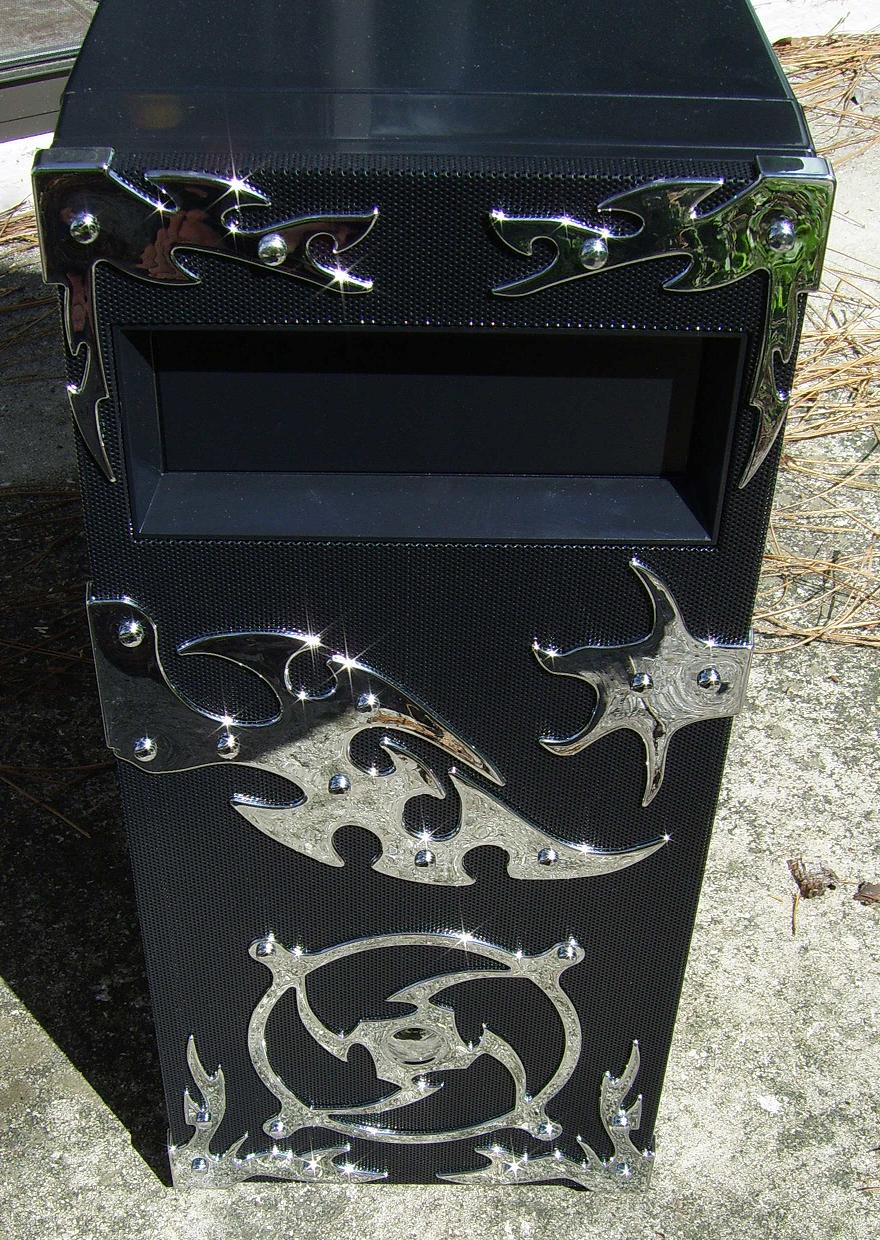

The case comes with a magnetic front door which hides all the buttons and
drive bays but one 5.25” bay and the case fan intake which leaves a

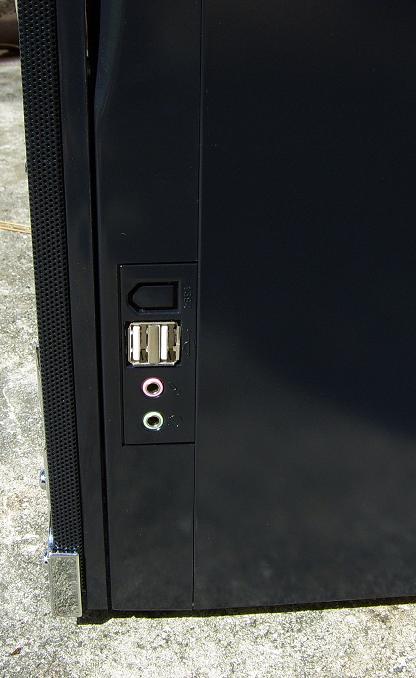

clean look. The right side of the case features two usb ports and audio jacks
and a bunch out access for a future 1394 port (not included). The advertisement
on the box shows a LCD display but is sold separately. You could use this
through the door 5.25" bay for your DVD drive if you don’t have
the additional cash to fork out for the display.

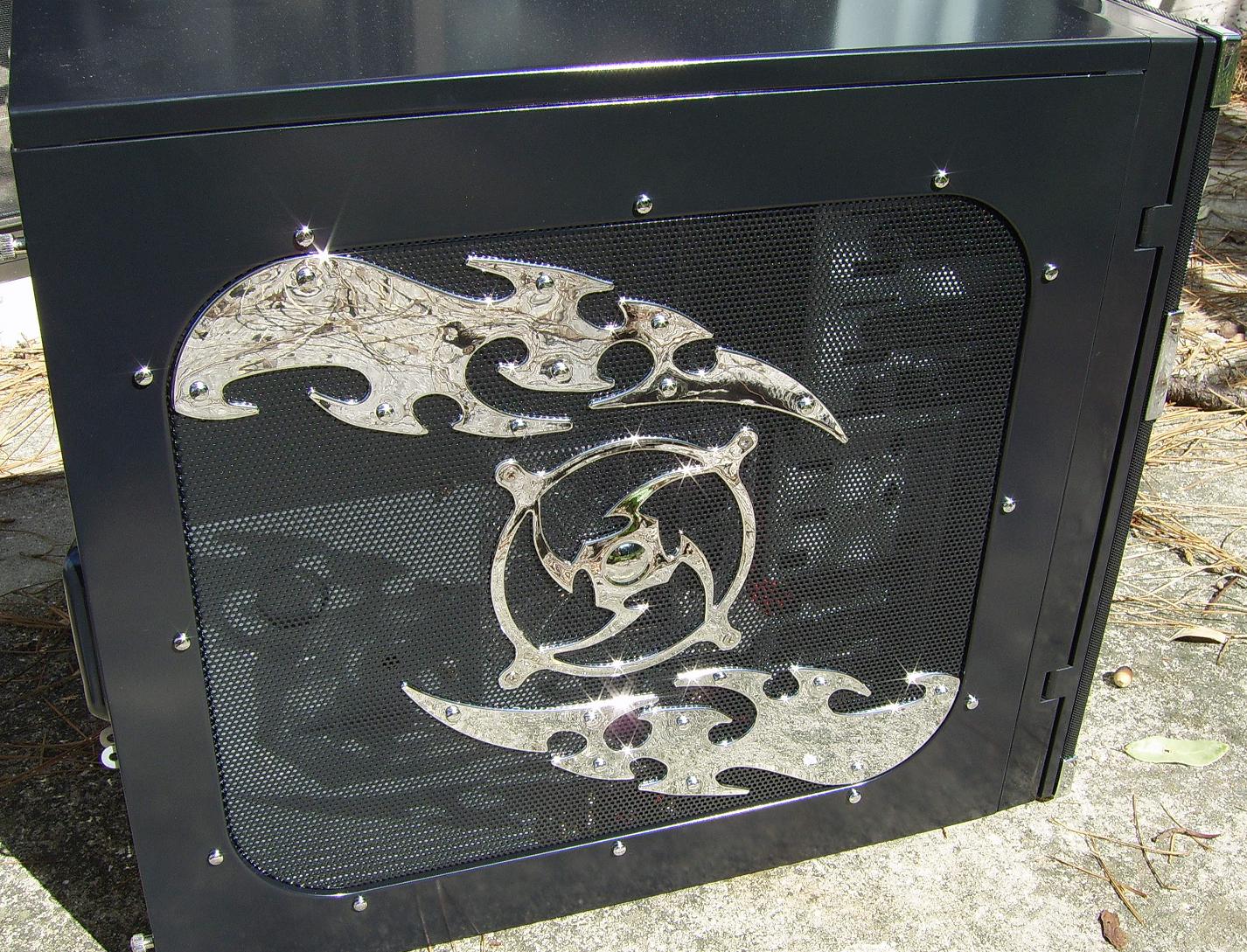

The side of the case is fully perforated which looks really cool, but leaves
us thinking what the inside of the case will look like a few months down the
road when dust has collected inside the case from the two none-filtered fans
exhausting through the perforation.

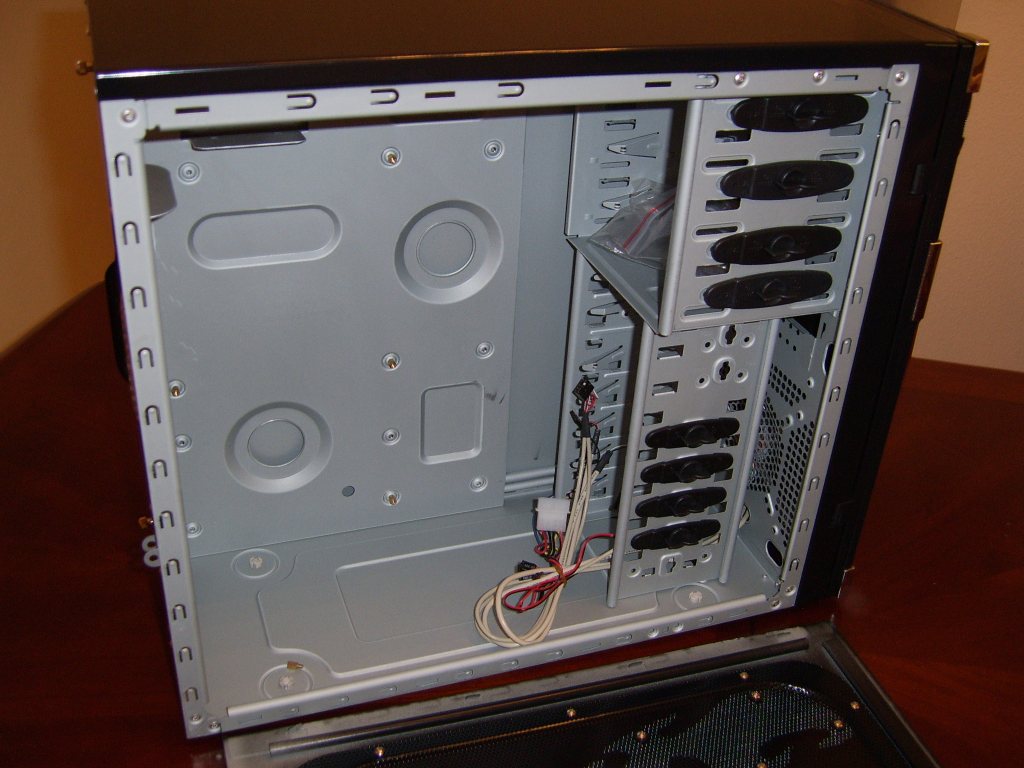

Finally the case is a screw less design (other then the thumb screws holding
the side panel and the screws that hold the motherboard). This is our favorite
feature as screws hold in your drives and other accessories seems to be a
little dated by today’s standards.
| Housing Material | 0.8MM SECC Steel Metal |
| Input Voltage | 115/230 VAC Mounting Kits |
| Main Board Size | ATX Form Factor 12" x 10.5" Or Smaller |
| External Disk Drive Bays | 4 x 5.25" & 2 x 3.5" |
| Internal Disk Drive Bays | 5 x 3.5" |
| Case Dimension (L x W x H) | 488mm x 200mm x 425mm |
| USB & Audio Port | 2 x USB2.0 & 1 x Sound Audio Port |
| Ventilation : | N/A |
| Fan | 1 x 120mm in Front Panel & 1 x 120mm in Side Panel Window |
| Fan Grill | 2 x 3D Blade Fan Grill on Side Panel Window |
| Power Supply | Not Included |
| Color | Black |
| Weight | 25 LBS |
Click on photos for an enlarged view.
