Ports and Layout of the M9700

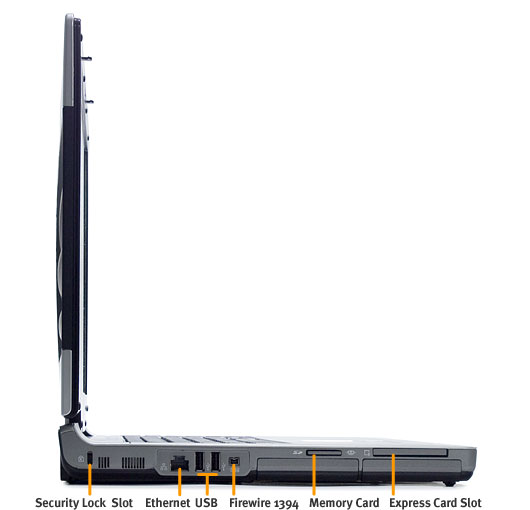

On the left side of the laptop the m9700 has two USB 2.0 ports,
a 4 pin firewire port, the 10/1000 ethernet port, the 4 in 1 Media card reader

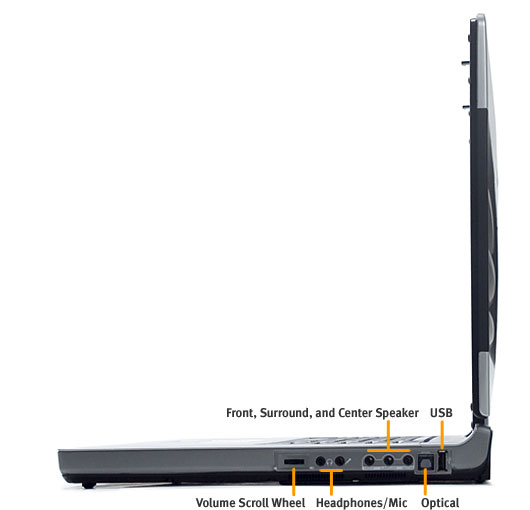

(SD/MS/MSPRO/MMC), and the Express Card Slot (54mm). The right side sports
the headphone jack, mic jack, volume control knob, surround sound ports (center,

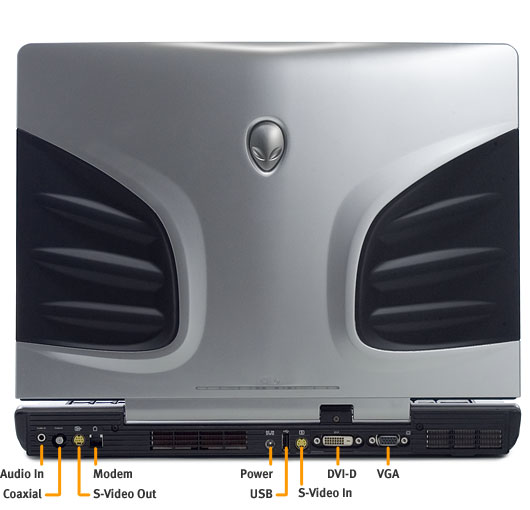

surround, front), optical port and a single USB 2.0 port. The backside of
our test unit had the VGA out port, DVI out port, S-Video out port, a single
USB 2.0 port, power-in port, the 56K modem, S-Video in, the Coaxial port (even
though this unit had XP MCE, our unit did not come with a TV Tuner which we
found odd) and the audio in port. The provided Coaxial port is not a normal
cable-ready connector interface we discovered, so make sure to ask Alienware
if they are suppliing an adapter cable for it, otherwise we do not recommend
purchasing the TV tuner with your unit as it would be useless (reference this
forum thread regarding this subject http://www.notebookforums.com/thread165916-5.html).
The coaxial port appears to be a custom OEM one that is not easy to find.
It would be nice if Alienware had provided a small interface/adapter cable
that would allow you to connect to standard cable connectors straight into
the laptop.
