eDimensional AudioFX Gaming Headset


Author:  Tyler Curry
Date:  2005.11.08
Topic:  Peripherals
Provider:  CrazyPC
Manufacturer:  eDimensional





A closer look

A closer look

Specifications

Microphone Type

10mm Electrets Condenser
Microphone Directivity Noise Canceling
Impedance Low
Sensitivity -58 dB+/-3dB
Frequency Response 30-16,000 Hz
Voltage 5V
Speaker Driver Unit 057mm, Cobalt Magnet
Speaker Impedance 32 Ohm +/- 10%
Speaker Sensitivity 106 dB+/-3dB at 1KHz
Frequency Response 20-20,000 Hz
Max. Power 100t mW

Physical Design

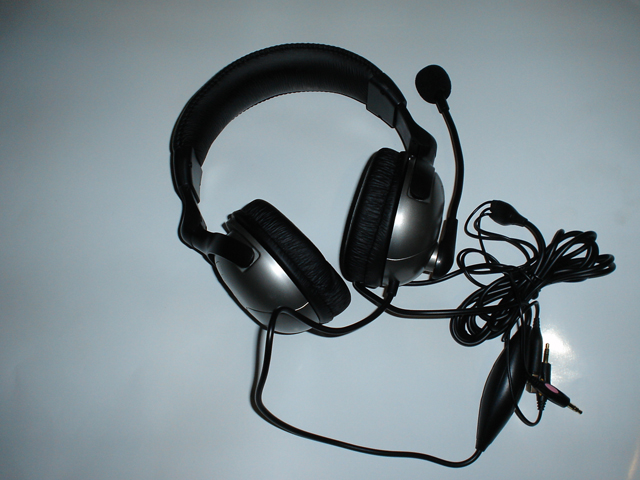

The physical design of these headphones is rather good.  The ear pieces are grey while every other part is black, the ear cups and the top headpiece both have padding for comfort, and on each ear piece is a nice little row of LEDs.





Although the headphones seem and look rather bulky, they are quite comfortable and can be worn for a long period of time.  However some may find them a little uncomfortable if you like the ear pieces to go completely around your ear rather than rest on your ear.  And if you happen to have a large melon, the headphones easily adjust in size to fit almost anyone without compromising comfort.  Also worthy of a mention, which in our opinion should be on every pair of headphones, is the single plug-in lead that comes out of the left ear piece.  Rather than a lead coming out of each ear piece which can cause some tangling of cords, having the one lead is definitely a must these days.

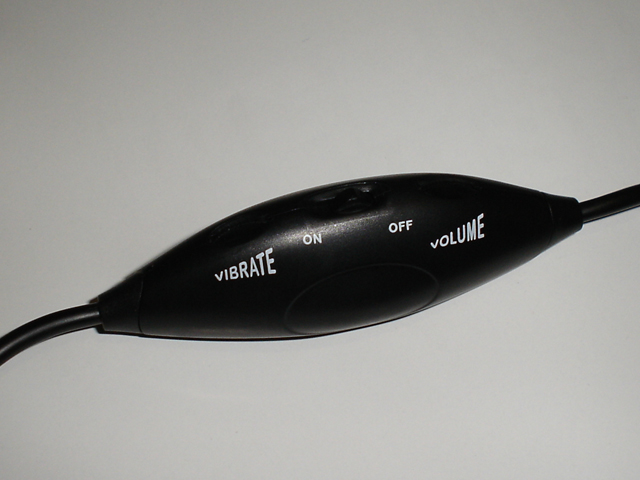

Also included in the design of the AudioFX headphones is the volume/vibrate control pod.  A necessary addition, this pod controls your sound level and the intensity of the vibration from the headphones, or you can turn off the vibration altogether.  The one downside to this pod is the sheer size of it; it's almost on the terms of ugly and likely could have been made smaller.

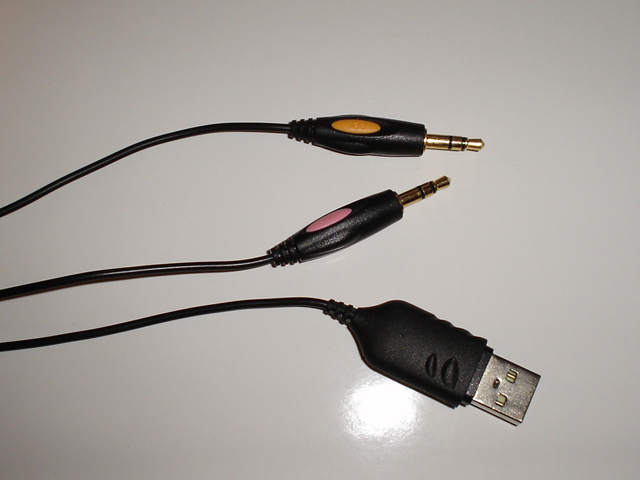

Now onto the cord itself.  With the cord being over 8 feet long, you shouldn't have any length troubles when streaming the cord from your computer to yourself.  Of course on the end of the cord you have your speaker and microphone connectors but you also have a USB connector to draw power to the headphones in order to power the force feedback and LEDs.  This is a great design eliminating the need for batteries there-for making the headphones lighter and save you the trip to your local electronics retailer to buy batteries regularly.  However, there is a slight problem some may run into with this design.  Your speaker, microphone, and USB ports must be somewhat close together in order to plug them all in.  Each connector does have individual leads of about 1 foot, so if you want to plug in your speaker and microphone in one area and your USB connector in another area that is about 2 feet away you might run into some problems.  But for the majority, you should be fine.

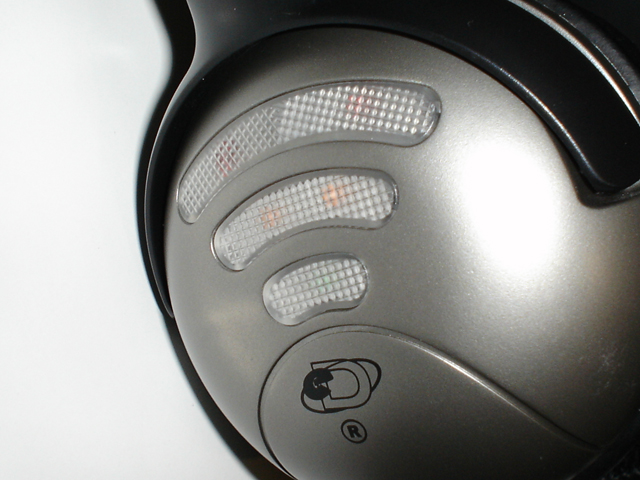

Last, but not least is the nifty LEDs featured on each ear piece.  Put simply enough, they're just for show lighting up in-sync with outputted sound from the headset.  It does look neat and will certainly turn a few heads and create some questions.

Sound Quality

Finally we get down to what really matters, the sound quality of the AudioFX headphones.  Of course, these headphones were designed specifically for gaming and we can certainly say that they live up to that claim.  We were able to test the AudioFX headphones on a variety of different games including Doom 3, Quake 4, Soldier of Fortune 2, Warcraft 3, and Battlefield 2.  The sound was to say the least, excellent.  We will go as far to say that we have never experiences a better set of headphones for gaming purposes.  The added vibrating "force feedback" feature really does add to the experience, and after playing games for some time with these headphones you will not want to go back to a non-vibrating headphone set.  The gaming experience was just as, if not more intense than using a good set of 5.1 surround sound speakers.

Unfortunately we can't say the same when we tried watching movies or listening to music with these headphones.  Although the headphones are not intended for these purposes it is only presumed that one would also use these headphones for that matter.  We are not going to say that the AudioFX headset is bad for movies and music in any way, but it isn't good.  Watching movies with this headset was acceptable and the vibrating force feedback feature did add a nice touch but nothing beats watching a movie in a 5.1 or better sound environment.  The worst sound quality of these headphones came from listening to music.  The clarity was just not there, and low pitched sounds seemed off.  The added vibrate effect did give a nice higher bass effect though when listening to rap/hip-hop songs.

As for the microphone that is built into the AudioFX headset, there are mostly good things to talk about.  We tested the mic with regular recording software and as well with Teamspeak which is an application to enable people to speak with each other over the internet, most commonly used while playing games.  Included is some noise cancellation foam on the microphone piece which helps greatly for communicating in-game.  When playing games and/or recording with the microphone everything worked flawlessly except one minor difficulty.  When having the vibrating force feedback on too high it also rumbles the microphone a bit making your voice a tad distorted to other players.  It is a little annoying but for the most part it isn't that big of a deal.
