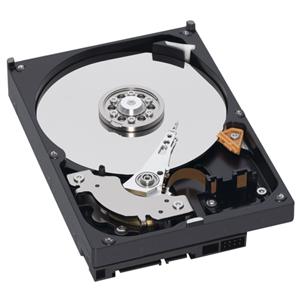

Western Digital Caviar Green 1TB SATA HDD
| Performance Specifications |
| Transfer Rates | ||
 |
Buffer To Host (Serial ATA) | 3 Gb/s (Max) |
|
||
| Physical Specifications | ||
|
Formatted Capacity | 1,000,204 MB |
|
Capacity | 1 TB |
|
Interface | SATA 3 Gb/s |
|
User Sectors Per Drive | 1,953,525,168 |
|
||
| Physical Dimensions | ||
| English | ||
|
Height | 1.028 Inches (Max) |
|
Length | 5.787 Inches (Max) |
|
Width | 4.00 Inches (+/- 0.010 inch) |
|
Weight | 1.39 Pounds |
|
||
| Metric | ||
|
Height | 26.1 mm (Max) |
|
Length | 147 mm (Max) |
|
Width | 101.6 mm |
|
Weight | 0.63 kg |
|
||
| Environmental Specifications | ||
| Shock | ||
|
Operating Shock (Read) | 65G, 2 ms |
|
Non-operating Shock | 250G, 2 ms |
|
||
| Acoustics | ||
|
Idle Mode | 25 dBA (average) |
|
Seek Mode 0 | 27 dBA (average) |
|
Seek Mode 3 | 25 dBA (average) |
|
||
| Vibration | ||
|
Operating | |
|
Linear |
20-300 Hz, .75G (0 to peak) |
|
Random |
10-300 Hz, 0.008 g² / Hz |
|
||
|
Non-operating | |
|
Low Frequency |
5-20 Hz, 0.195 inches (double amplitude) |
|
High Frequency |
20-500 Hz, 4.0G (0 to peak) |
|
||
| Electrical Specifications | ||
| Current Requirements | ||
|
Power Dissipation | |
|
Read/Write |
5.4 Watts |
|
Idle |
2.8 Watts |
|
Standby |
0.40 Watts |
|
Sleep |
0.40 Watts |
|
||
| As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. |
