Chieftec Case & Thermaltake
Water Cooling Kit

Reviewed by Shadrach 4.22.2003

The Cooling System

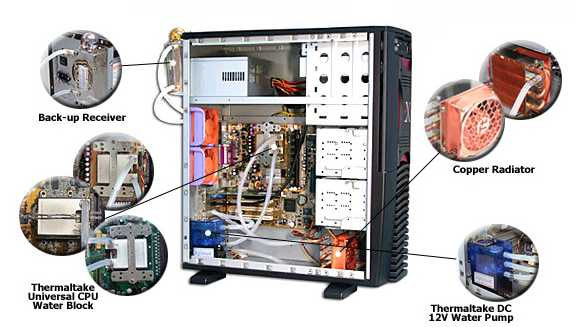

For well over a year now, many articles have demonstrated the innovation of hard core computer hardware aficionados gathering parts from junk yards, home centers, and auto parts stores.  Thermaltake has removed the guesswork and simplified the process of watercooling, leaving you looking like a professional watercooling guru.

Thermaltake has taken the time to make installation of this cooling system simple. Magnets are used to hold some of the components in place.  Additionally, a power lead is used to signal the motherboard whether or not the pump is running (even though the motherboard believes it to be the cooling fan). The magnet usage is very creative and the magnets are surprisingly strong for their size; however, Thermaltake should have also included some brackets for statically mounting the components.

Key Specifications

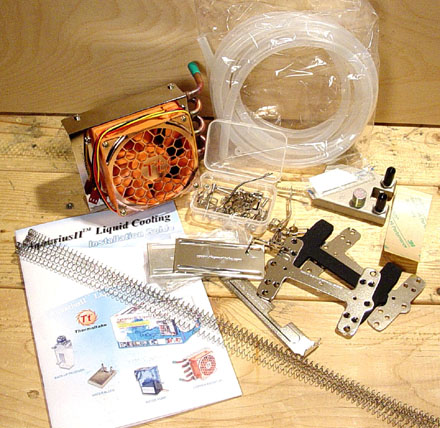

Water-Block

  • Dimensions: 70x50x12 mm

  • Material: Copper Forging / Nickel Plating

  • Weight: 266gms

Radiator

  • Dimensions: 86x130x89 mm

  • Material: Copper Pipe with Staged Copper Fin

  • Fan Dim: 80x80x25 mm

  • Fan Speed: 2400 ± 10% RPM

  • Max. Air Flow: 38.4 CFM

  • Noise: 22 dBA

  • Connector: 3 Pin

  • Weight: 410gm

Pump

  • Dimensions: 100x50x86 mm

  • Rated Voltage: 12V

  • Rated Current: 0.16A

  • Power Input: 2W

  • Water Pressure: 1.2 kg/cm2

  • Pump Speed: 23.8 GPH (gallons per hour)

  • Connector: 3 Pin

  • Noise: 20 dBA

  • Bearing Type: Ceramics Bearing

  • Life Expectancy: 50000 hr.

  • Weight: 230gm

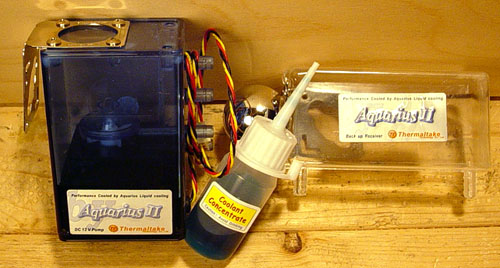

Backup Receiver

Install with Back-up receiver
  • Back-up Receiver stores additional water to ensure that system is full at all time
  • With the see-through Back-up Receiver, you can check the water at any time.
  • When the water level within the system is decreasing, Back-up Receiver
    will automatically supply the necessary liquid to DC Water Pump.

Install without Back-up receiver

  • Back-up Receiver is not required for AquariusIITM to operate. Users may not wish to have additional accessories outside of the case.
  • Users will need to check the water level within the DC Water Pump monthly. Refill the system if necessary.
  • To refill the DC Water Pump, please remove the Tube from top part of the DC Water Pump. Then connect the Tube from the Back-up Receiver to it to refill.

Universal Water Block Mounts

Application for:

  • Intel P4
  • 478
  • FMB2
  • AMD K7
  • AMD K8

Intelligent Water Tube

  • Better water-flow and avoid compression or pinching
  • The spring represents the best solution to ensure maximum water-flow.
