Gigabyte E350N-USB3 Motherboard

Features

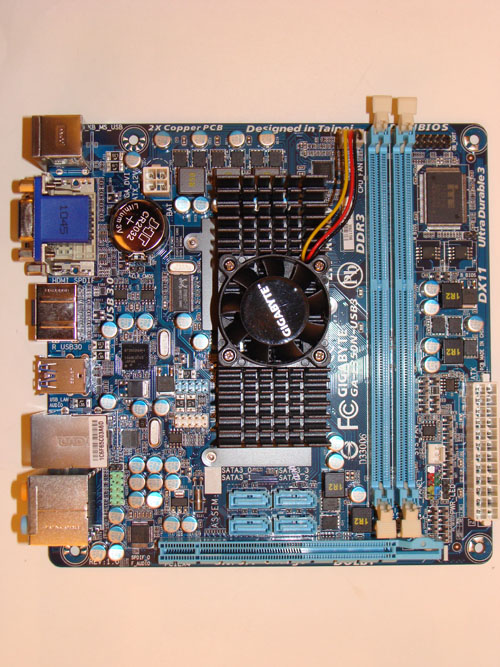

While the USB 3.0 and SATA III have caught on as a trend in the upper motherboards but have not yet reached the mITX mainly because of price reasons. I was genuinely surprise when I saw this board support both SATA III as well as USB 3.0 specifications. In the picture below all four ports support support SATA III. There are also 2 USB 3.0 ports affixed to the back marked with a blue USB header.

board

I addition to having USB 3.0 and SATA III support the motherboard also supports other neat features such a PCI 4x Express slot as can be seen in the pictures below. Despite only being 4x slot, you will be able to fit 16x devices as it a full size slot. I was also impressed by the motherboard’s DualBios option available through a hardware switch – a feature usually reserved for higher, more expensive players in the field.

Specifications

CPU
  1. Built in with an AMD E-350 Dual-Core processor
  2. Built in with an AMD Radeon HD 6310 (DirectX 11) graphics core
Chipset
  1. AMD Hudson-M1 FCH
Memory
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory

    2. * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

  2. Single channel memory architecture
  3. Support for DDR3 1333(OC)/1066 MHz memory modules
Onboard Graphics Integrated in the APU:

  1. 1 x D-Sub port
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200

    3. * The DVI-D port does not support D-Sub connector by adapter.

  3. 1 x HDMI port, supporting a maximum resolution of 1920×1200

* For configuring screen resolution, please refer the user manual- Chapter 1 Hardware Installation of Back Panel Connectors section.
Audio
  1. Realtek ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby Home Theater
  5. Support for S/PDIF Out
LAN
  1. 1 x Realtek 8111E chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x4
    (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
Storage Interface FCH:

  1. 4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices

* SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

USB FCH:

  1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Renasas D720200 chip:

  1. Up to 2 USB 3.0 ports on the back panel

* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x S/PDIF Out header
  9. 2 x USB 2.0/1.1 headers
  10. 1 x debug card header

    11. * This port is mainly used by repair technicians for debugging and problem diagnosis.

  11. 1 x chassis instrusion header
  12. 1 x power LED header
  13. 1 x clearing CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/ mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x optical S/PDIF Out connector
  6. 4 x USB 2.0/1.1 ports
  7. 2 x USB 3.0/2.0 ports
  8. 1 x RJ-45 port
  9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. ITE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
BIOS
  1. 2 x 16 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune

    8. * Available functions in EasyTune may differ by motherboard model.

  8. Support for Smart Recovery
  9. Support for Auto Green
  10. Support for On/Off Charge
  11. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft Windows 7/ Vista/ XP
Form Factor
  1. Mini-ITX; 17.0cm x 17.0cm
Note * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice.
Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Most hardware/software vendors no longer offer support for Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
