Intel Core i5 2500K Sandy Bridge CPU

Overclock

Select 2nd Gen Core family processors delimited with a ‘K’ in the product identification are unlocked meaning the multiplier can be adjusted to change the overall CPU speed. Basically CPU speed = CPU Ratio (or multiplier) times Base clock frequency (or BCLK). Although the BCLK is able to adjust -/+ 10% it is best practice to leave it at the default and specified 100MHz.

Benchmarks – Overclocked to 4.0Ghz

With the multiplier set at 40 and a base clock of 100Mhz means 40 x 100Mhz = 4000Mhz or 4.0Ghz.  Turbo speed is now available up to 4.4Ghz to give even the overclock an extra boost if/when needed. The CPU averaged about 30C/84F doing basic word processing and web browsing. Now lets see how that 21% increase affects the benchmark results!

2b_cpuid

AIDA64 v1.50.1230

b1_aidb_queen 2_b2_aidb_photoworxx
CPU Queen – 5th

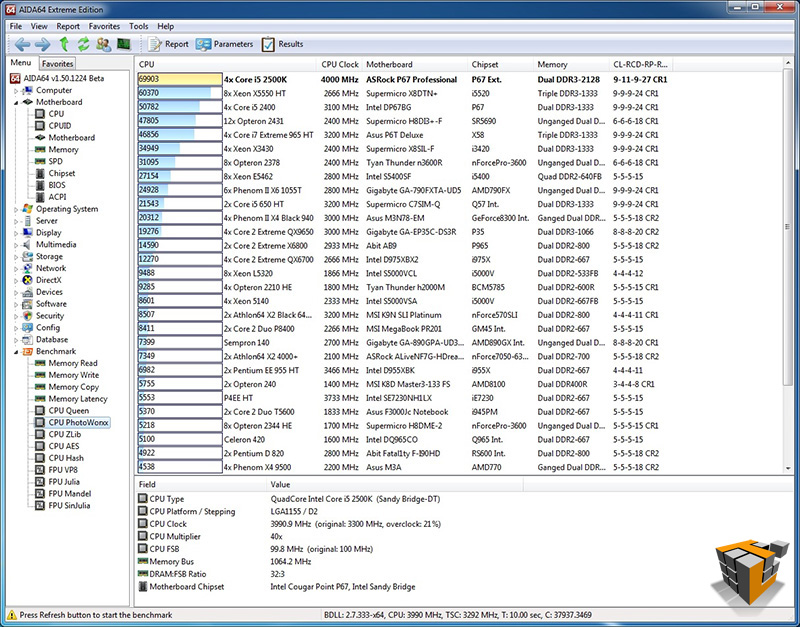

CPU PhotoWorxx – 1st
2_b3_adib_zlib 2_b4_adib_aes

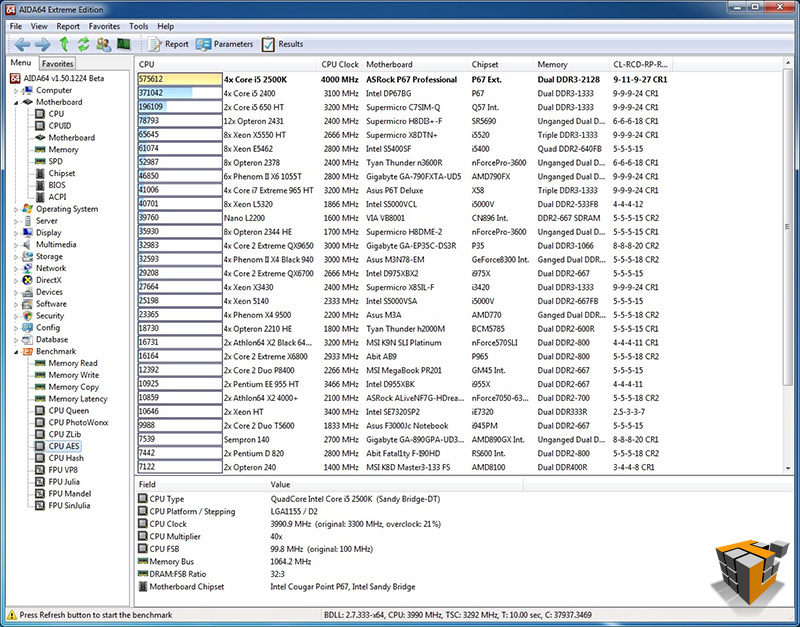

CPU Zlib – 4th CPU AES – 1st
2_b5_adib_hash

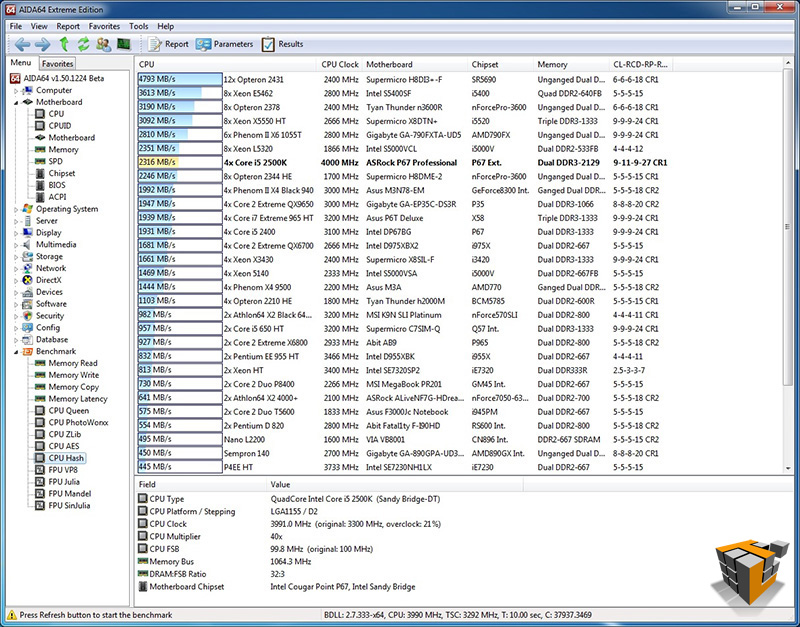

CPU Hash – 7th

In our AIDA64 benchmarks we find improvements in scores in all 5 tests. Results in the CPU ZLib and Hash test move the 2500K up in rank from 7th to 4th and 9th to 7th respectively. Only 23 points separate the 2500K and the Intel Core i7 Extreme 965 processor in the CPU Queen test.

PCMark Vantage x64

2a_pcmark1 2a_pcmark2

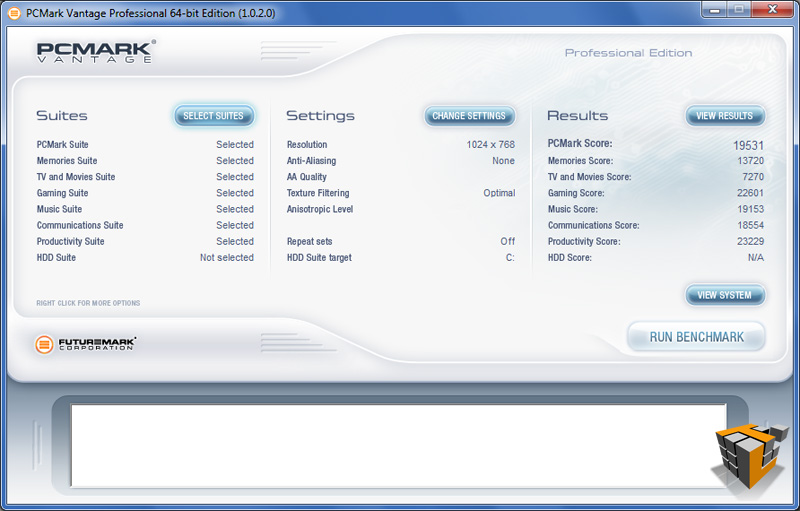

How the test was setup to run Results – 19531 Marks; up from 17746 stock

The 2500K overclock to 4.0GHz gains ~1800 Marks in the PCMark Vantage test suite showing that even this small overclock will squeeze extra juice from the 2nd Gen CPU.

PerformanceTest v7.0

b_pftest b_pftest_cpu

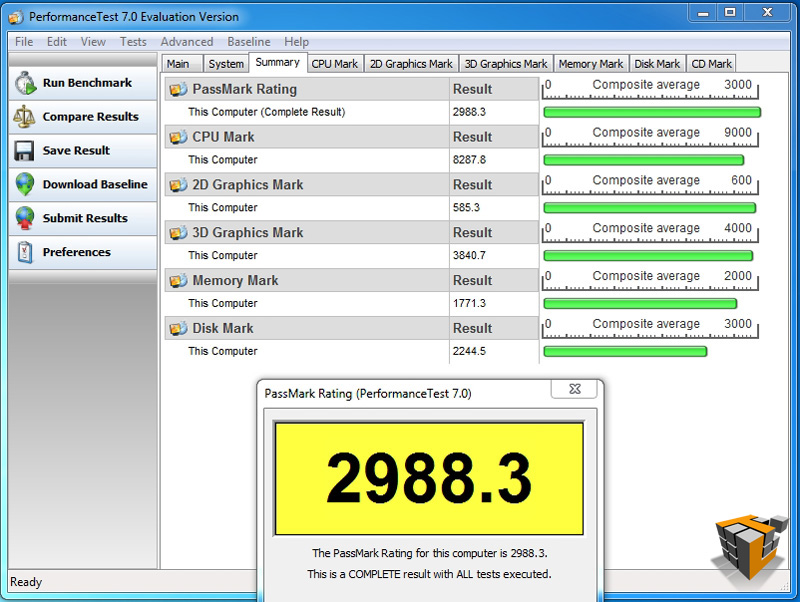

PassMark Rating – 2988.3; up from 2635.9 stock
CPU Rating – 8287.8; up from 7102 Stock
b_pftest_compared 2b_pftest_compared2

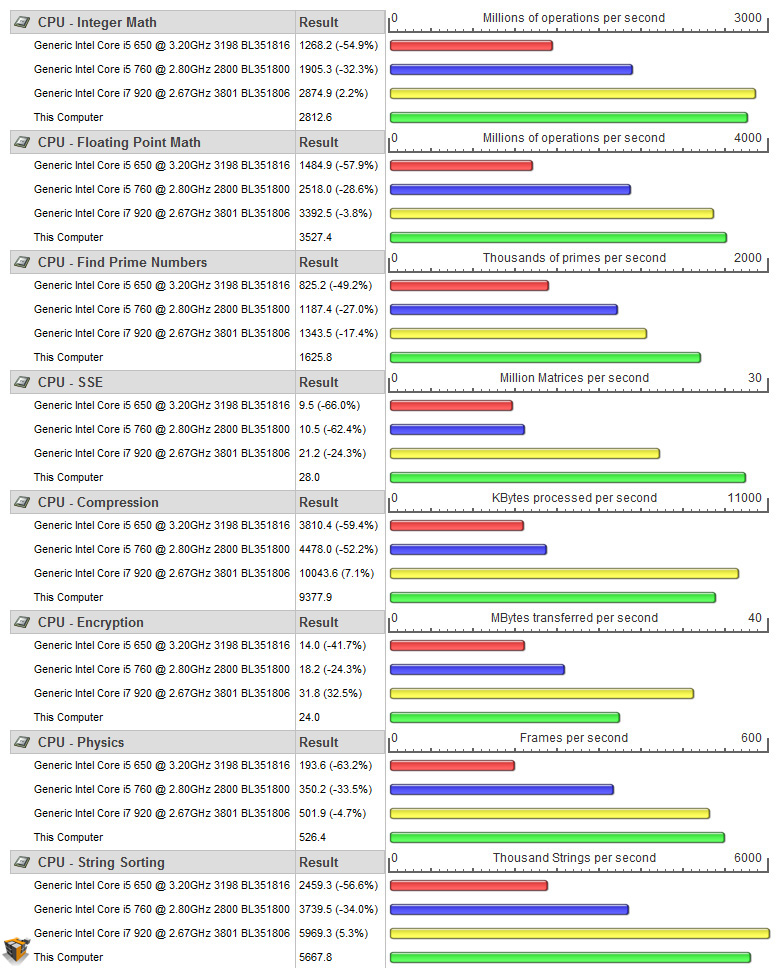

Detailed CPU comparison to i5 650, i5 760, and i7 920

The Core i5 2500K is in green

Almost 1st in all categories, severely passing some!

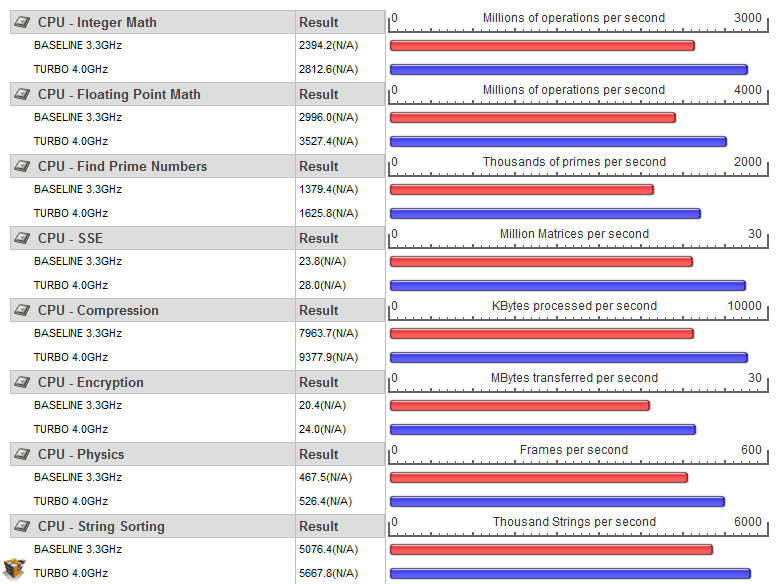

Comparison to the Stock 3.3GHz Performance

Overall we see about 17% increase in performance indicated by the PerformanceTest suite, not bad for a 21% overclock.

SiSoftware Sandra 2011c

1b_sisoft_pa1 1b_sisoft_pa2 1b_sisoft_pa3

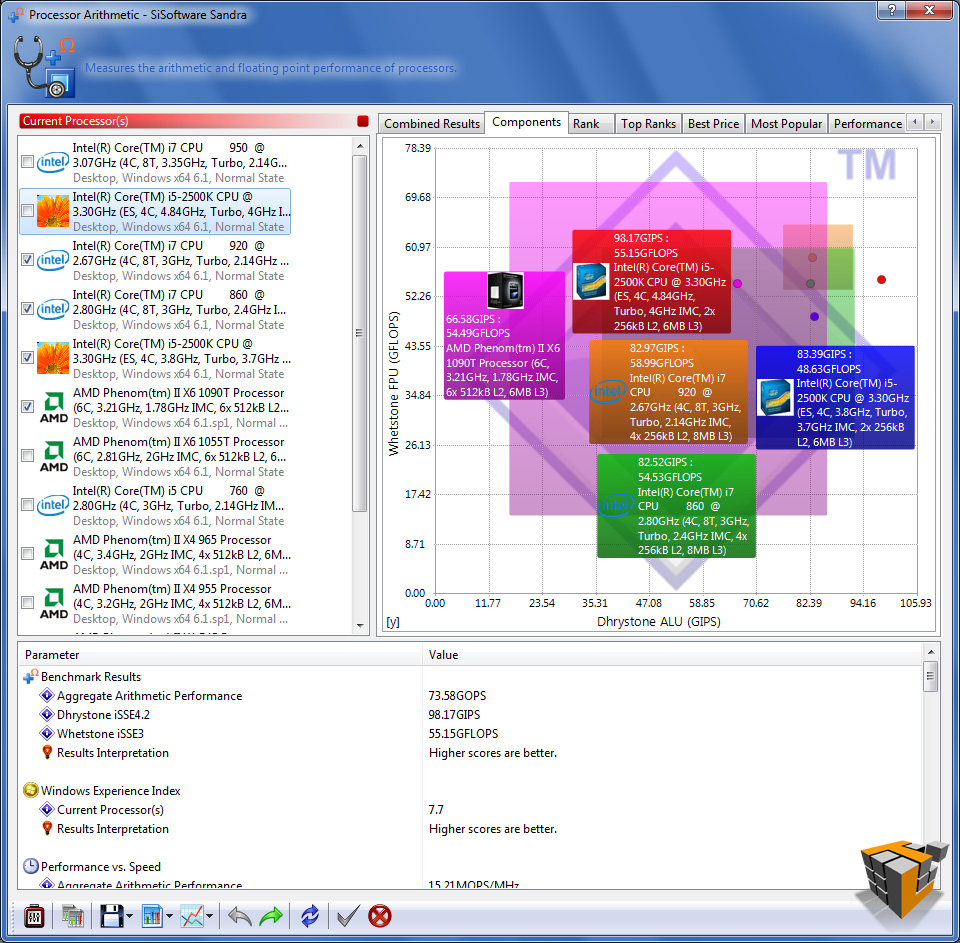

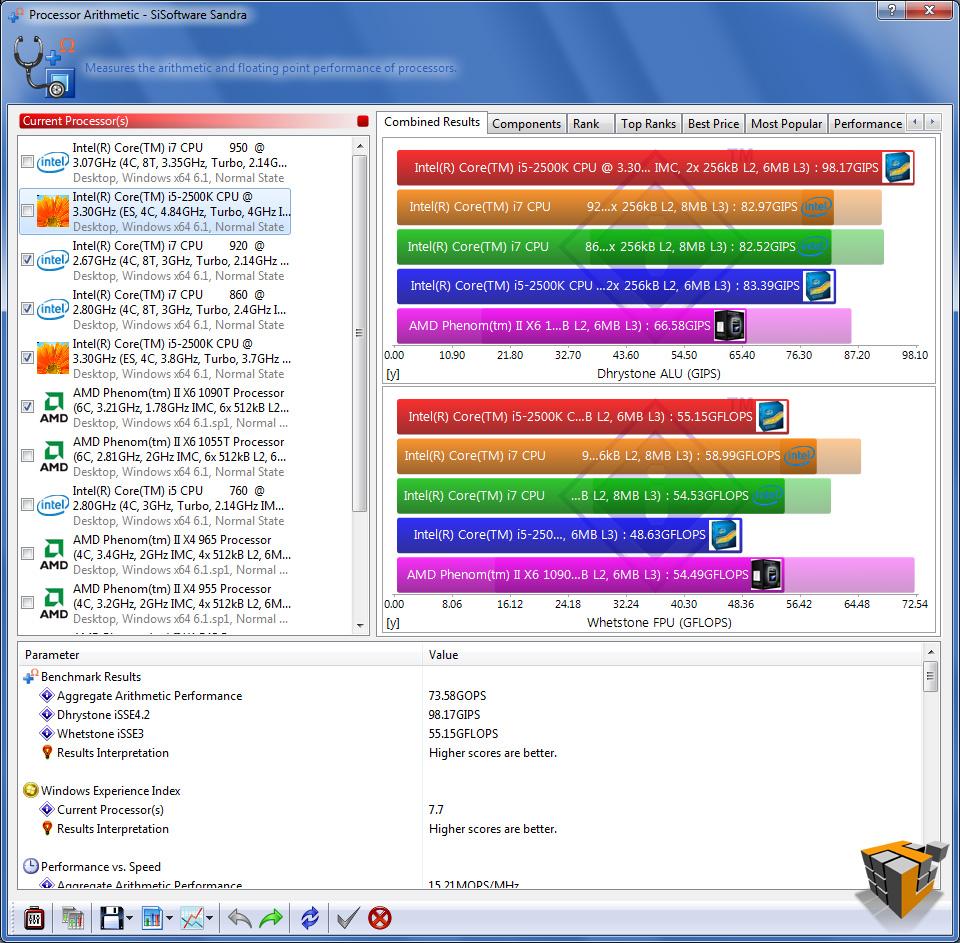

Processor Arithmetic
1b_sisoft_pmm1 1b_sisoft_pmm2 1b_sisoft_pmm3

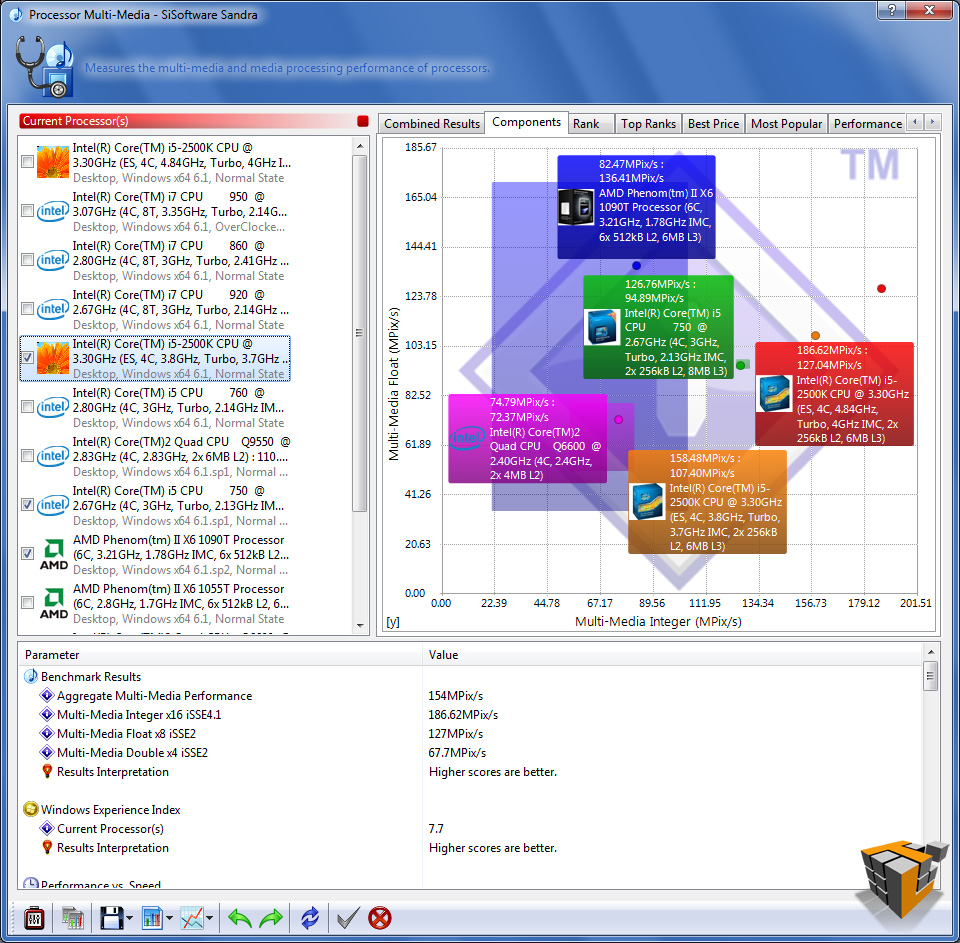

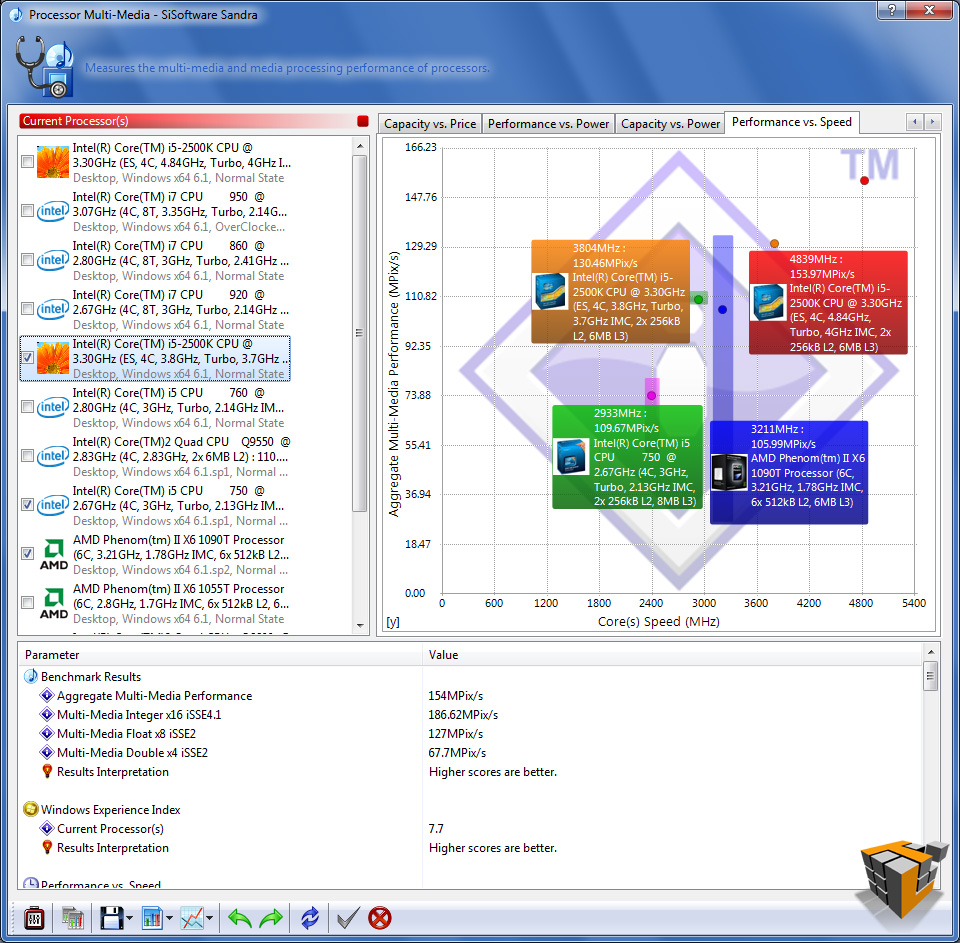

Processor Multi-Media
1b_sisoft_mce1 1b_sisoft_mce2 1b_sisoft_mce3

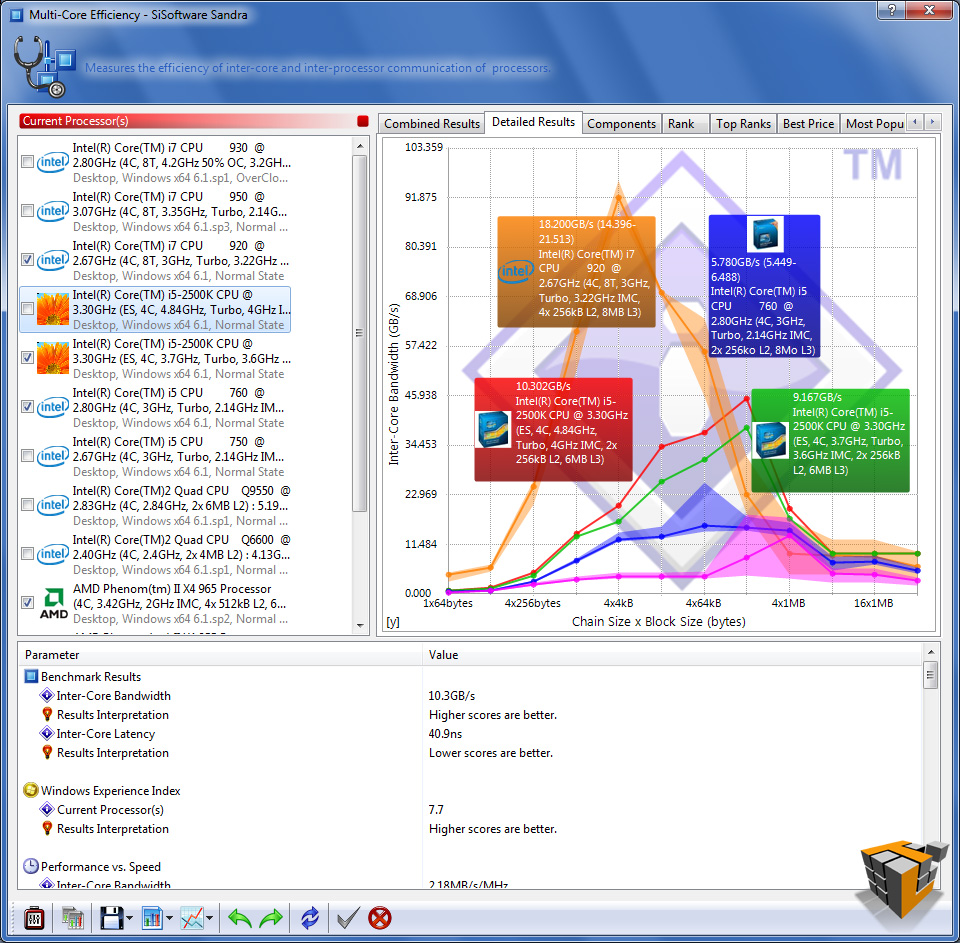

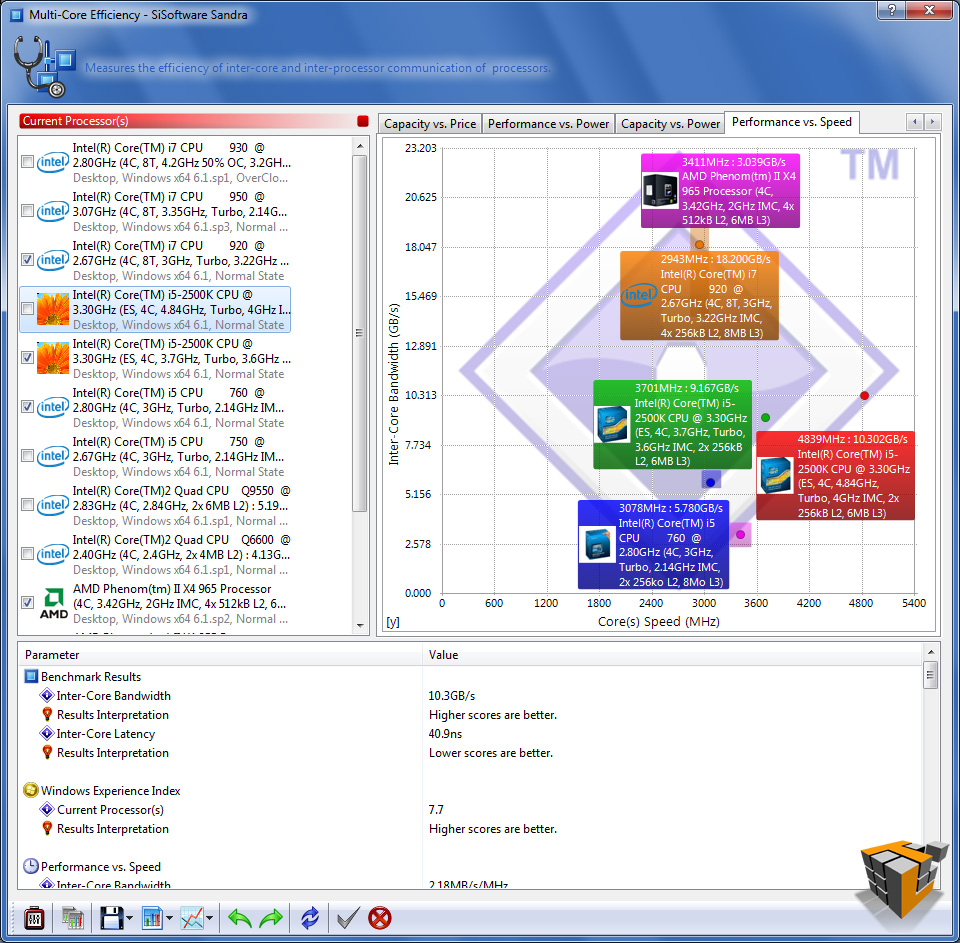

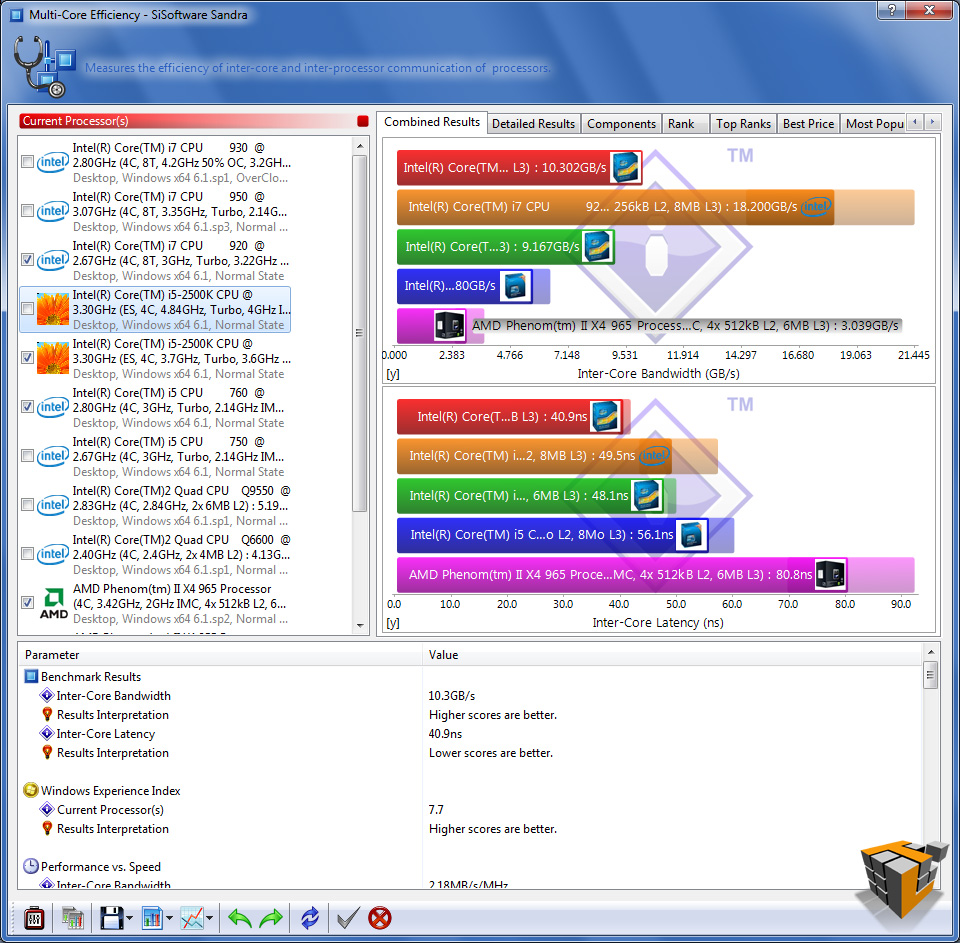

Multi-Core Efficiency
1b_sisoft_mce1 1b_sisoft_pme2 1b_sisoft_pme3

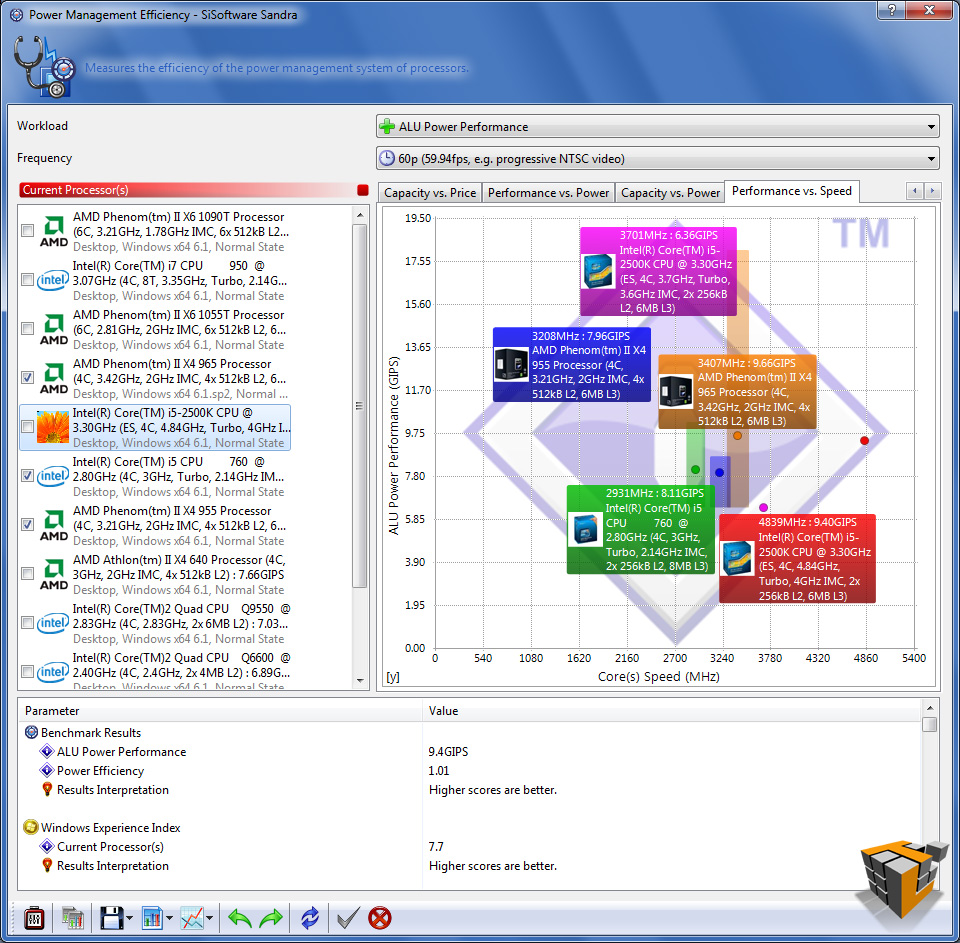

Power Management Efficiency
1b_sisoft_cyp1 1b_sisoft_cyp2 1b_sisoft_cyp3

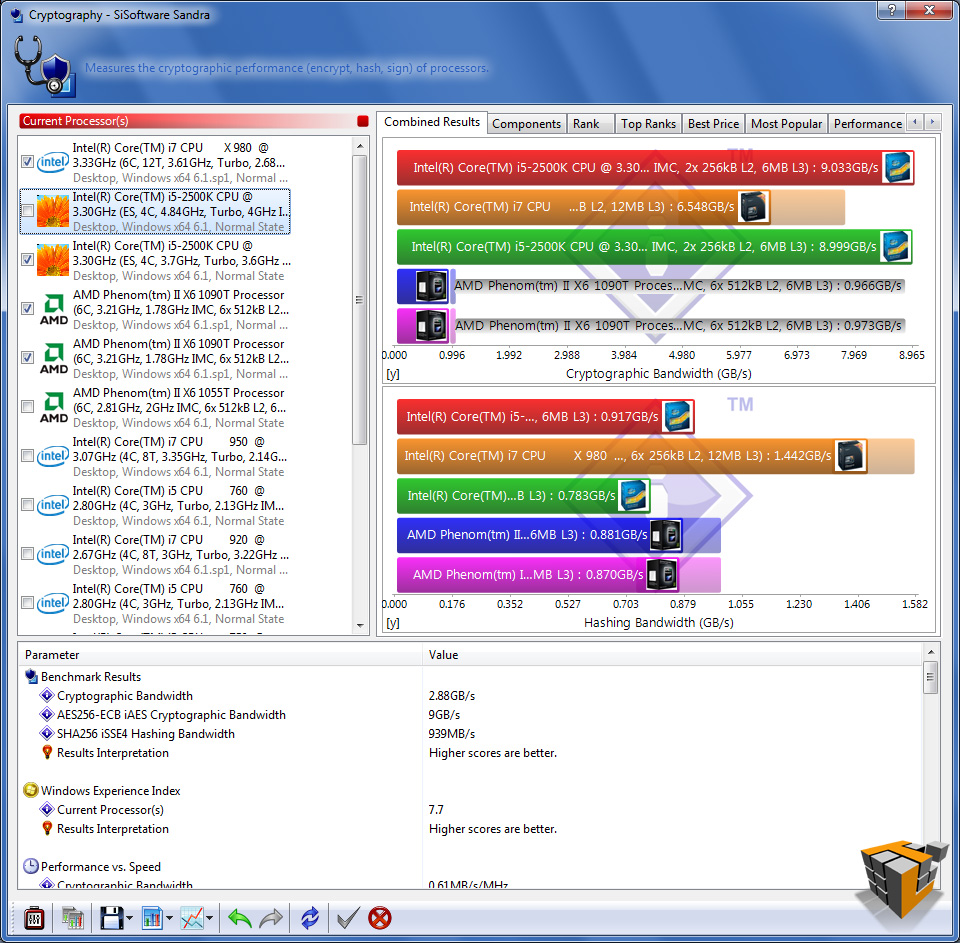

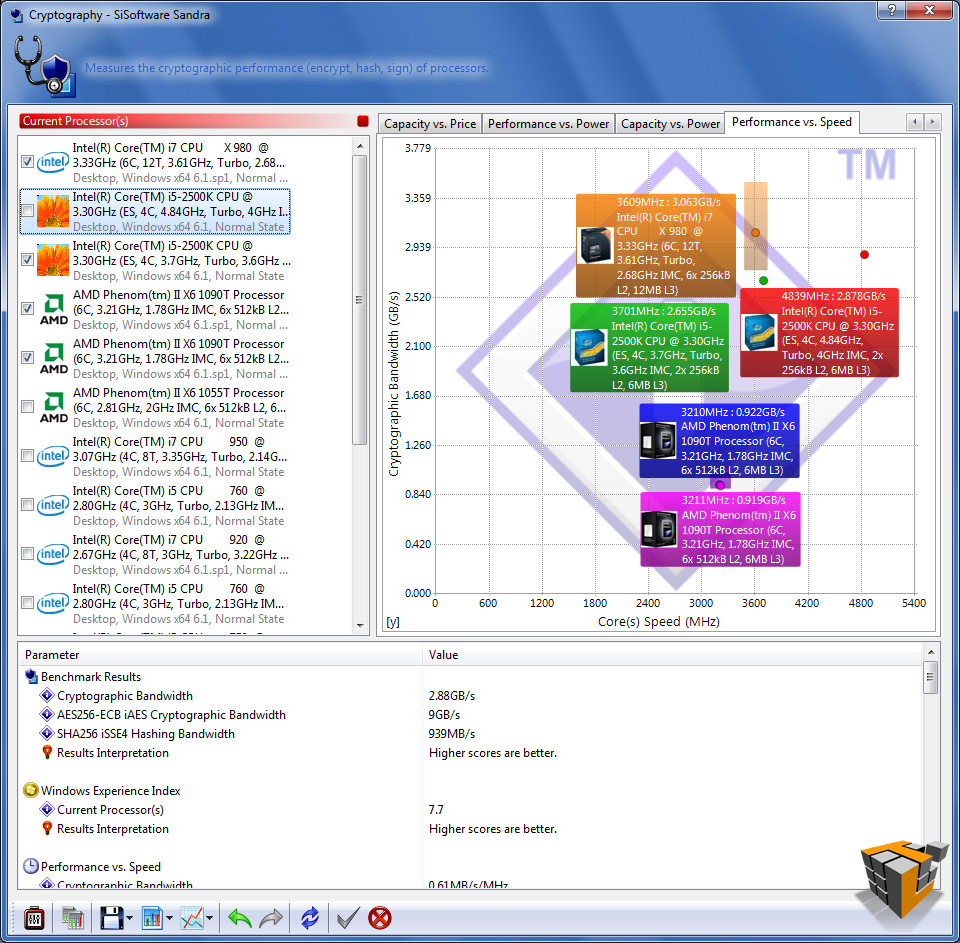

Cryptography
