Specifications
| Supported CPU | |
| CPU Socket Type | AM3/AM2+/AM2 |
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron |
| FSB | 2600MHz Hyper Transport (5200 MT/s) |
| Chipsets | |
| North Bridge | AMD 785G |
| South Bridge | AMD SB750 |
| Memory | |
| Number of Memory Slots | 2×200pin SO-DIMM |
| Memory Standard | DDR2 667/800 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Slots | 1 |
| Other Slots | 1 x mini PCI-E |
| Storage Devices | |
| SATA 3Gb/s | 4 |
| SATA RAID | 0/1/5/10 |
| Onboard Video | |
| Onboard Video Chipset | ATI Radeon HD 4200 |
| Onboard Audio | |
| Audio Chipset | Realtek ALC662 |
| Audio Channels | 6 Channels |
| Onboard LAN | |
| LAN Chipset | Realtek 8111DL |
| Max LAN Speed | 10/100/1000Mbps |
| Rear Panel Ports | |
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 2 x eSATA 3Gb/s |
| Audio Ports | 3 Ports |
Testing
To test the motherboard the following equipments was used:

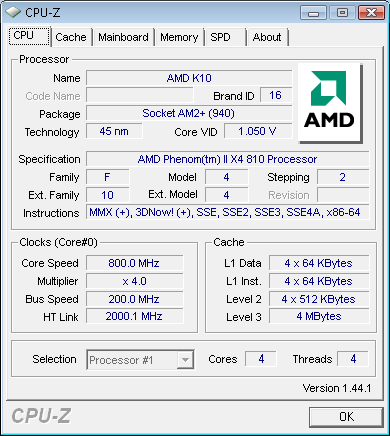

- Processor: Phenom II X4 810 Socket AM 2+
- RAM: Crucial 2GB 667MHz
- HDD: Patriot WARP 32 GB SSD
