Features
- High Performance Waterblock – The high performance copper base plate accelerates the heat conductivity. Additionally, the pre-refilled coolant reduces any stress from liquid replenishment hassle.
- High Efficiency Radiator – The specially designed 360mm large surface radiator not only doubles the cooling surface, but also supports up to 6 x 120mm fans for additional heat dissipation.
- Triple Curve Fans – The triple 120mm PWM fans provide an instantaneous cooling function. The powerful PWM controlled fan speed is between i1000~2000rpm, reducing the radiator heat from the chassis to maximize cooling off performance.
- High Reliability Pump – The high quality and reliable pump enables the maximum amount of water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore no refill is either needed or required.
- Easy and Simple Installation – The Water 3.0 Series features the latest cooling performance technology from Thermaltake, providing a simple installation system, and a totally maintenance-free operation. The Water 3.0 Series is easy to install and requires the minimum amount of space in the chassis.
Specifications
Water Block | Material : Copper |
Pump | Motor speed : 3600+-150 RPM Rated Voltage : 12V |
Fan | Dimension : 120 x 120 x 25mm Speed : 1000~2000RPM Noise Level : 20 dBA Rated Voltage : 12V Max. Air Flow : 99 CFM Connector : 4 Pin |
Radiator | Dimension : 393x 120 x 27 mm Material : Aluminum |
Tube | Length : 326 mm Material : Rubber |
Weight | 1.32 kg |
Compatibility | Intel: LGA 2011, 1366, 1150/1155/1156 AMD: FM2/FM1, AM3+/AM3, AM2+/AM2*Chassis Compatibility: Core V71 & Urban T81 |
Packaging and Accessories
![]() |
![]() |
![]() |
The Water 3.0 Ultimate’s box has large pictures of the cooler and its various parts as well as a feature list and a performance chart.

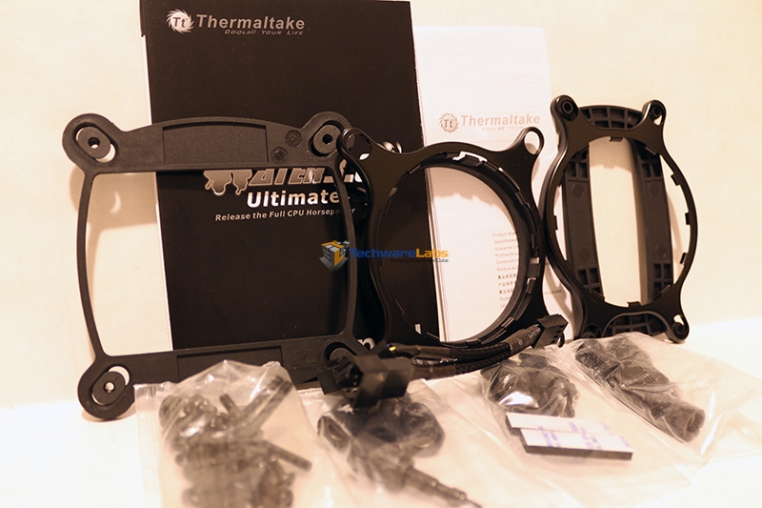

In the box, aside from the cooler itself you get all the various mounts and screws as well as an install guide and warranty info.
