ZBOX-AD02-PLUS – Media PC


zotac-logo
PCMark Vantage

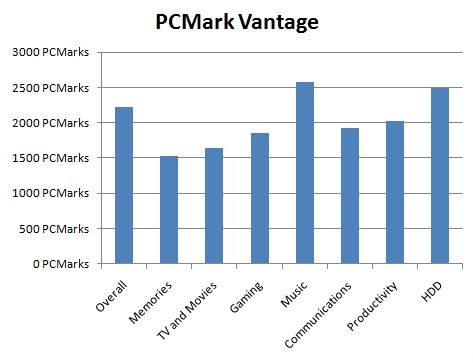

pcmark-vantagePCMark Vantage scores were about what you’d expect, with an overall score of 2226. Unsurprisingly, music and storage performance came out the best, while more demanding tasks like video transcoding scored lower.

PCMark 7

pcmark-7-overall

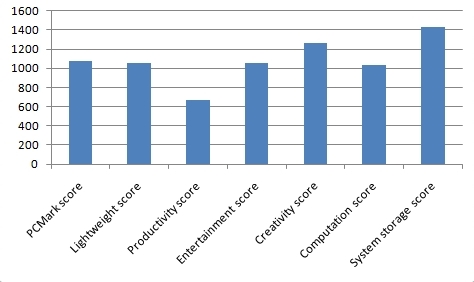

PCMark 7, which takes advantage of new features in Windows 7, was somewhat less forgiving in overall scores.

pcmark-7-video-playback-and-transcoding-video-playback pcmark-7-video-playback-and-transcoding-video-transcoding

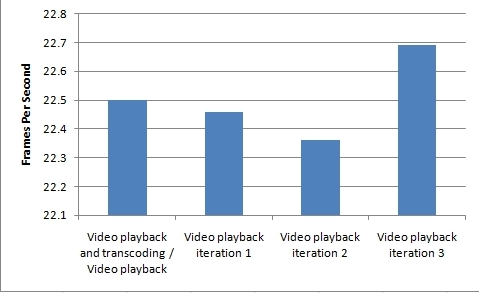

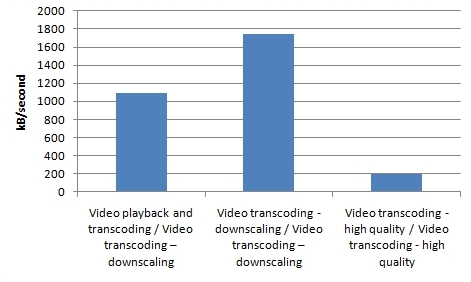

Video playback tests, which utilize only the CPU, gave an average framerate of 22.5 fps. Video transcoding scores varied widely, with the best result from the second downscaling test, and the worst from the high quality transcoding test.

pcmark-7-3d-graphics

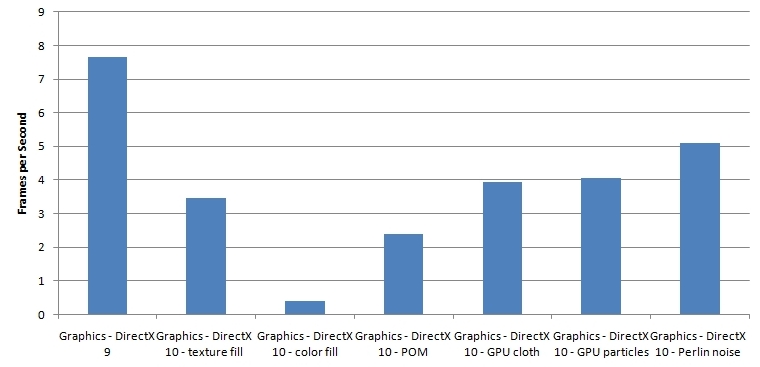

The 3D graphics tests all registered in the single digits for framerates, perhaps unsurprisingly.

pcmark-7-web-browsing

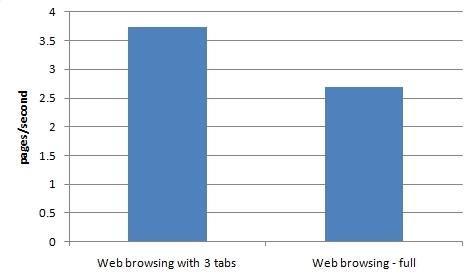

Web browsing tests came in between 3.74 and 2.7 pages per second, depending on the number of tabs open at once. In this, at least, there were no problems.

AIDA64

aida64-cpu-aes aida64-cpu-hash

AES and Hash scores were on the low side, as expected.

aida64-cpu-photoworxx

PhotoWorxx, which simulates heavy Photoshop use, posted a fairly poor result.

aida64-cpu-queen

CPU Queen, which tests raw integer throughput, posted a fairly weak result of 5146.

aida64-cpu-zlib

ZLib, which measures compression speed, gave us a modest result of 30.8MB/sec.

aida64-fpu-julia

Julia, the first of the floating point tests, gave us a fairly low result of 911.

aida64-fpu-mandel

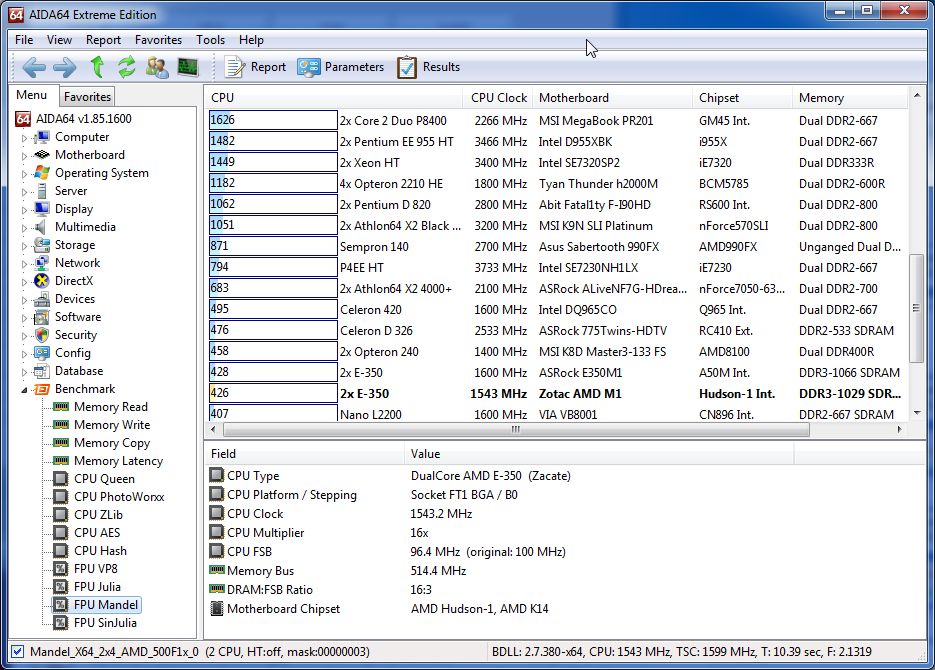

Mandel, which tests a more complicated working set, gave us a result of 426.

aida64-fpu-sinjulia

SinJulia, the most complicated of the fractal sets, gave us a result of 503.

aida64-fpu-vp8

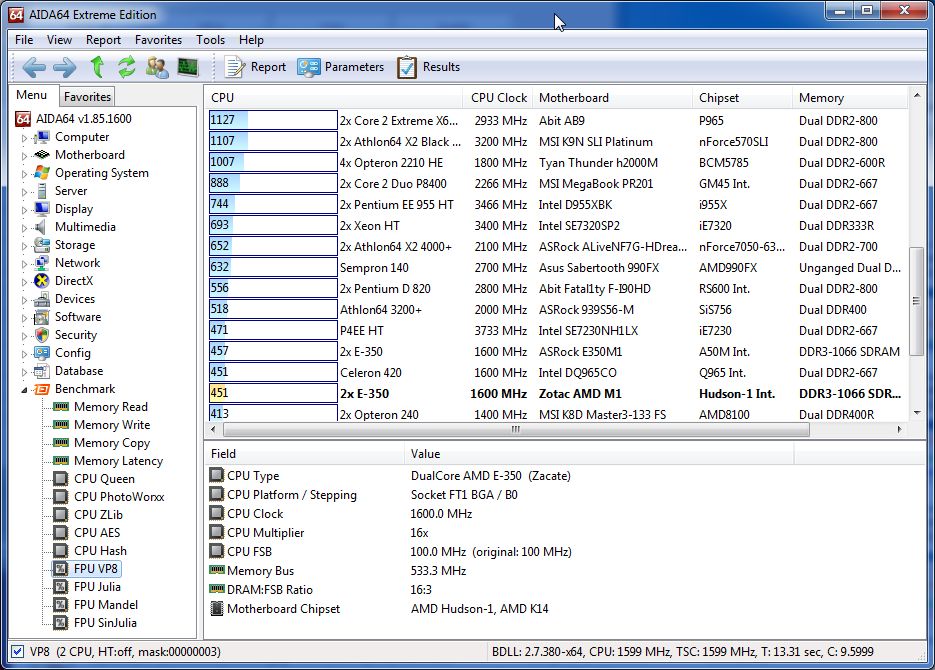

The VP8 test, which measures video encoding speed on the CPU, posted an expectedly low result of 451.

aida64-memory-read

The memory read test posted a result of 3912 MB/sec, which is on the low side but expected.

aida64-memory-write

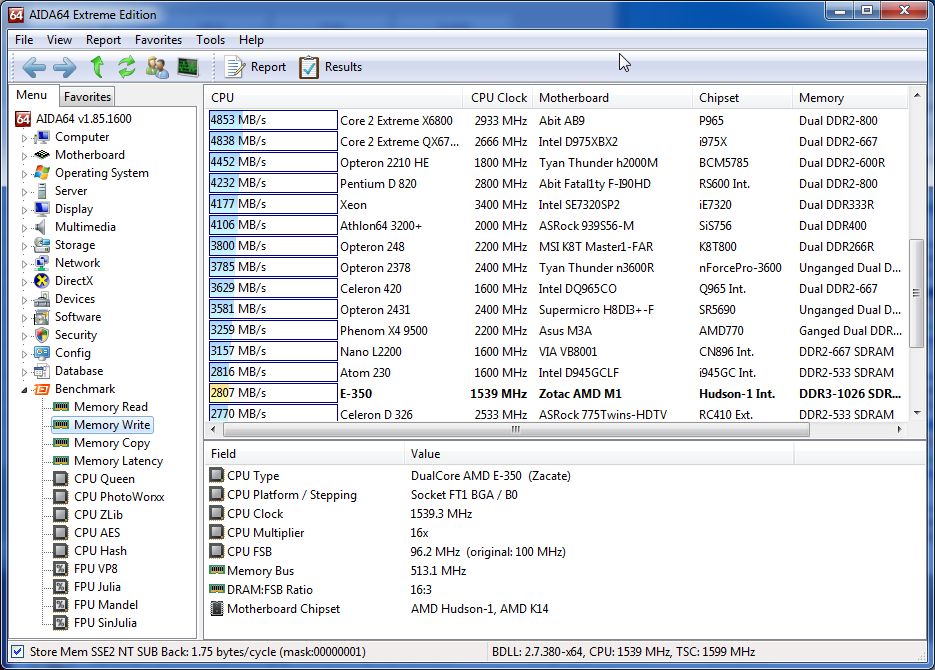

The memory write test fared no better, with a result of 2807 MB/sec.

aida64-memory-copy

The memory copy test paints a by-now familiar picture, with throughput of 4802 MB/sec.

aida64-memory-latency

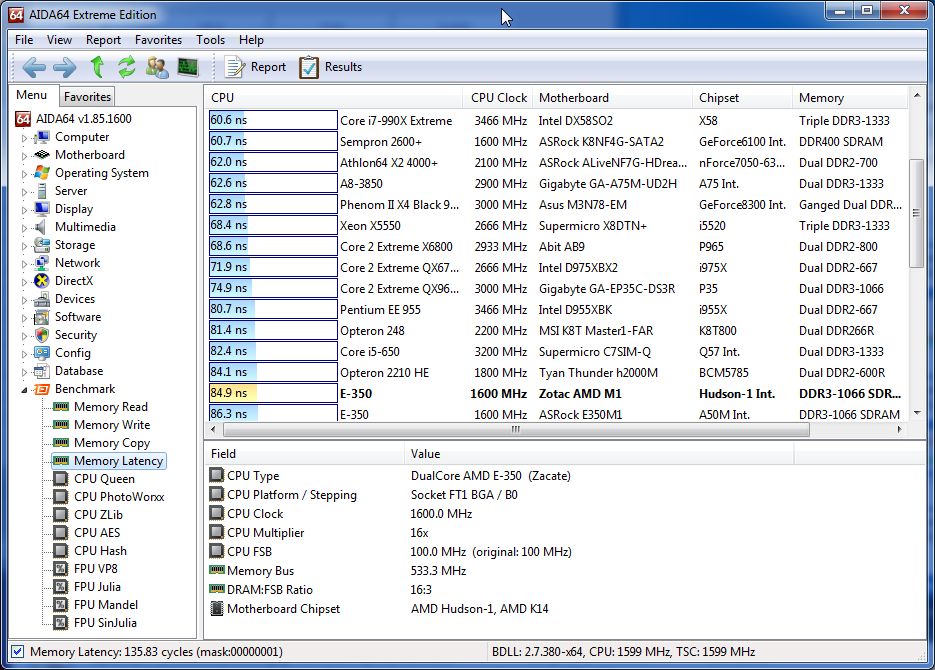

The memory latency test posted a result of 84.9ns, which, while not wonderful, is still quite respectable.
