AKiTiO Neutrino U3+

akitio-logo

Specifications:

Here is a list of specifications taken from AKiTiO’s website.

Model No.
  • Neutrino U3+
Part No.
  • SK2-BU3OS-AKT
Certifications
  • CE
  • FCC
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • 2.5″ SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 20GB – 1TB
  • Height 9.5mm or 12.5mm
RAID mode
  • N/A
Interface/Ports
  • 1x Mini USB 3.0 SuperSpeed port (backwards compatible with USB 2.0)
  • 2x 9-pin FireWire 800 ports
Data transfer
  • FireWire 800 (1394b) up to 800Mbps (100MB/s)
  • FireWire 400 (1394a) up to 400Mbps (50MB/s)
  • USB 3.0 up to 5Gbps (625MB/s)
  • USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)
  • FireWire 400/800: Windows XP/Vista/7
  • USB 2.0/3.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
System requirements (Mac)
  • FireWire 400/800: Mac OS 10.2 or above
  • USB 3.0: Mac OS 10.7 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, USB 2.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • Bus Power 5V/900mA (host computer has to provide sufficient USB bus power)
  • Power supply (DC +5.2V/2A)
Fan noise level
  • N/A
Dimensions (LxWxH)
  • 4.9 inches x 3.1 inches x 0.9 inches
  • 12.5cm x 7.8cm x 2.4cm
Package contents
  • Neutrino enclosure (HDD not included)
  • USB 3.0 cable
  • FireWire 800 cable
  • Power adapter
  • User manual
Carton/Packing
  • Retail Box Size: 8.9 x 6.2 x 1.6 in. (22.7 x 15.7 x 4 cm)
  • Carton Size (20pcs per carton): 17.7 x 13.1 x 10.2 in. (45 x 33.4 x 26 cm)



Closer Look:

AKiTiO-NEUTRINO-U3+ AKiTiO-NEUTRINO-U3+
 The Neutrio comes with the enclosure, USB 3.0+ cable, single firewire cable, power supply and screws  Shown here is the back of the Neutrino U3+ with the dual firewire ports, USB 3.0+ I/O port, power switch
AKiTiO-NEUTRINO-U3+ AKiTiO-NEUTRINO-U3+

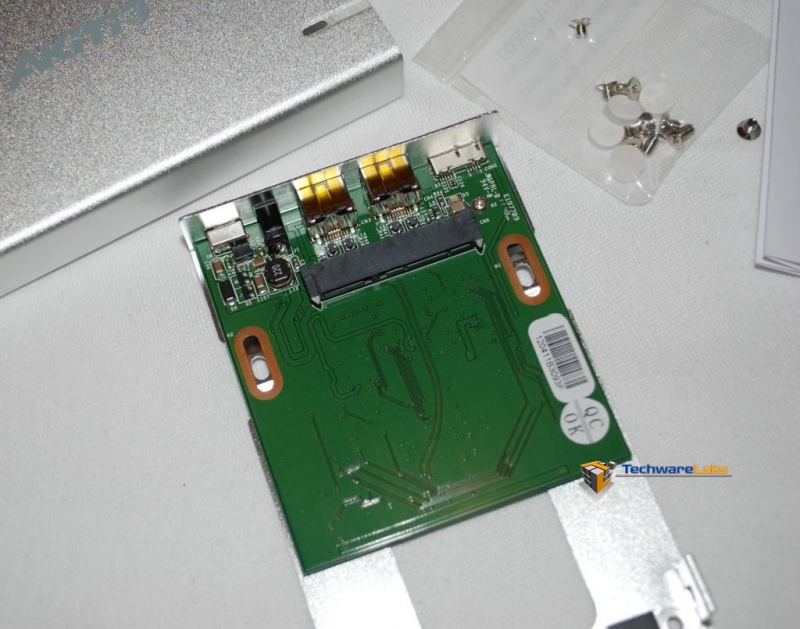

 With the enclosure opened we can see the SATA connection w/ power. There isn’t too much to the circuit board.   Here is another angle of the internal circuit board of the Neutrino U3+

The AKiTiO Neutrino U3+ like other drive enclosures on the market today very simple with its design and execution of an external storage enclosure. This simple design is effective to keep the component that could fail to a minimum. Since the Neutrino U3+ comes with multiple I/O options we expected to see more circuitry to control/manage the data to and from the drive.

Hard drive installation.

AKiTiO-NEUTRINO-U3+ AKiTiO-NEUTRINO-U3+

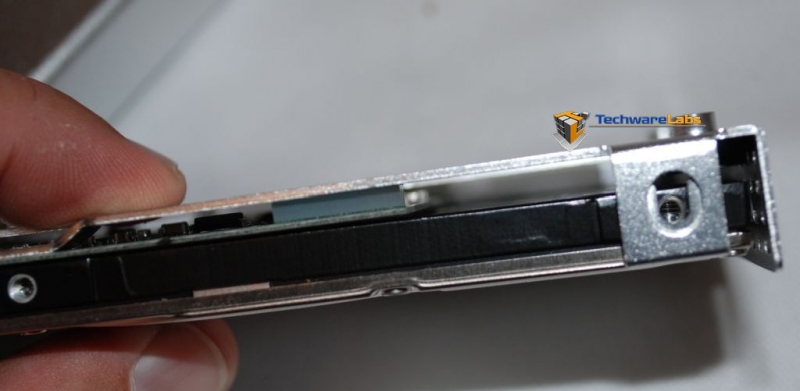

Mounting the HD to the enclosure is slightly unique with two screws to the bottom of the drive and two along the side of the drive.   From this view you can see the mounting screw points on the side and bottom of the drive.
AKiTiO-NEUTRINO-U3+ AKiTiO-NEUTRINO-U3+

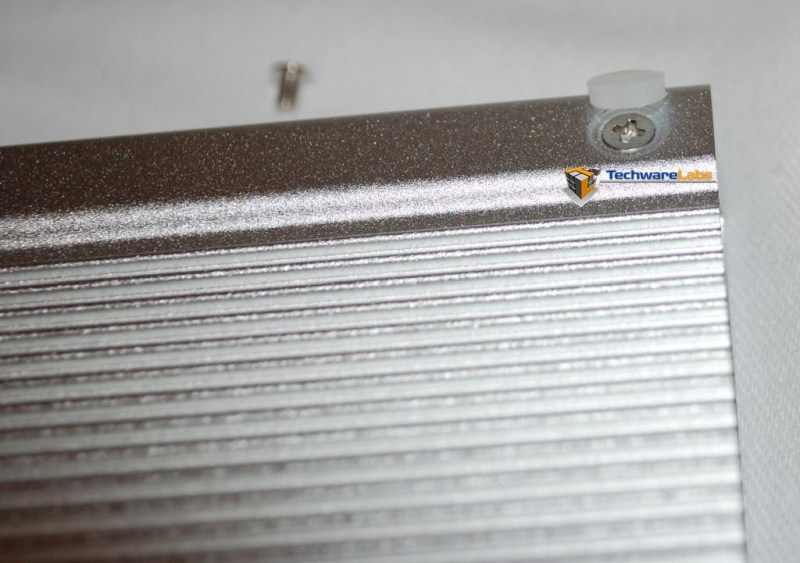

 Close up look at the mounting screw hole for the side of the drive.  Once the drives is mounted and slid into the enclosure, the enclosure is sealed with four screws which are hidden by four rubber feet which hide the screws.

The mounting of the hard drive to the enclosure is just as simple as the rest of the enclosure.  What is slightly different is fact the mounting screws are not just all on the bottom or all along the sides, rather two of the mounting screws are on the side of the enclosure and two are on the bottom.  Once the hard disk is slid into the enclosure and four screws are screwed in to secure the drive there are four rubber feet stickers which are to be placed onto the four screws. These rubber feet will more than likely won’t last long though. We would like to see some sort of rubber footing that traverses the enclosure, but maybe in the next release.
