AMD Phenom II X6 1090T

AMD’s Phenom II X6 Six Core Processor 1090T

thumbs amdh e 2cp AMD Phenom II X6 1090T

Introduction:

AMD has a new flagship processor labeled the Phenom II X6 1090T. The 1090T is the most powerful and vestal ever from AMD. The additional cores are always welcomed, though most applications are just written or “optimized” for Dual cores as seen in several benchmarks in previous reviews, but keep in mind, these are synthetic benchmarks to record specific tasks on every system. The new Phenom ™ II X6 1090T processor runs at 3.2GHz natively across all six cores, but when the processor detects that three or more cores are idle, the processor auto boost the three cores to automatically to 3.6GHz. AMD continues to trend of keeping the price low, the 1090T will be listed under $300, which is a welcomed site to see in present economy. Along with the release of the AMD Phenom™ II X6 processors, is the release of the new AMD 890FX chipset which we will also touch on during this review. So let us look at what the additional cores give us by taking a look at the standard benchmarks and some over-clocking of the 3.2GHz X6 processor to see how is matches up against the rest of the market today.

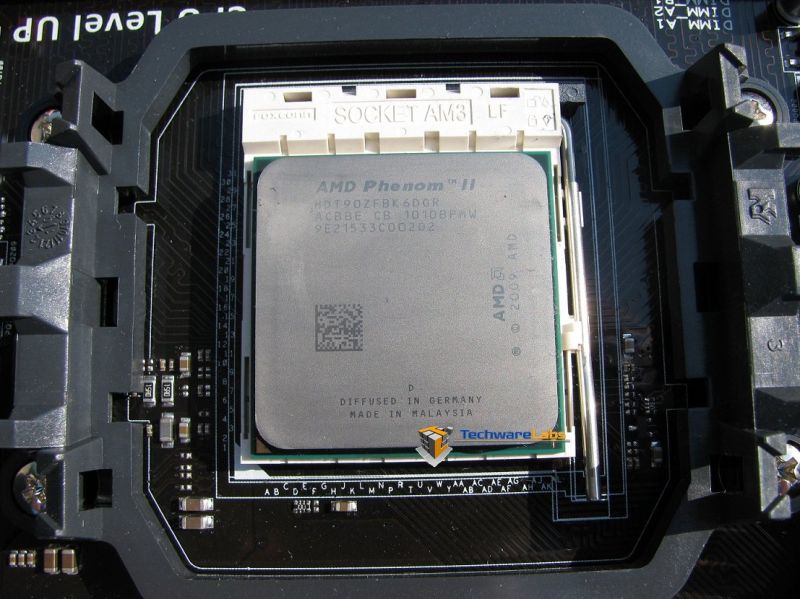

thumbs amd 6core0 AMD Phenom II X6 1090T

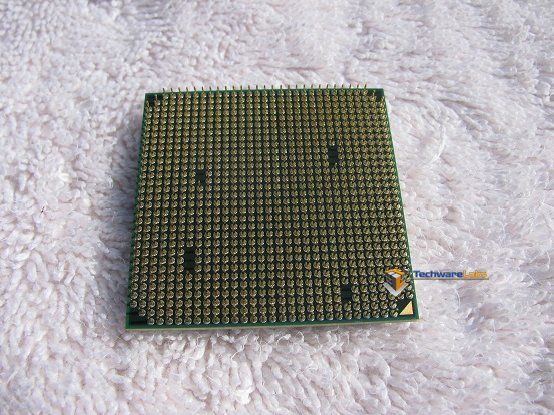

thumbs amd 6core2 AMD Phenom II X6 1090T

Specifications:

Processor Model Clock Frequency System Bus Package Profile CMOS Tech L2 Cache L3 Cache TDP Voltage Max Temp
AMD PhenomTM II X6 1090T 3.2GHz(3.6 GHz Turbo CORE)

4.0 GT/s

socket AM3

45nm SOI

3MB

6MB

125W

1.125-1.40V

62’C

AMD PhenomTM II X6 1055T 2.8GHz(3.3 GHz Turbo CORE)

4.0 GT/s

socket AM3

45nm SOI

3MB

6MB

125W

1.125-1.40V

62’C

Cache Sizes L1 Cache: 128KB (64KB Instruction + 64KB Data) x6(six-core)
L2 Cache: 512KB x6(six-core)
L3 Cache: 6MB Shared L3
Process Technology 45-nanometer SOI (silicon-on-insulator) technology
HyperTransport™ technology links One 16-bit/16-bit link at up to 4000MT/s full duplex; or up to 16.0GB/s I/O bandwidth
Memory Integrated memory controller up to 21GB/sec dual channel memory bandwidth
Types of Memory Support for unregistered DIMMs up to
PC2 8500 (DDR2-1066MHz)
PC3 10600 (DDR3-1333MHz)
Die Size 45nm = 258mm2
Packaging 938-pin organic micro Pin Grid Array (micro-PGA)

thumbs windowstaskmanager AMD Phenom II X6 1090T

Task Manager showing all six cores

Though just sitting idle in this screen shot, we see the resources which are available. This reminds me of a car show with exotic cars. You see it your can hear it, but you can’t afford it, well, AMD has a Phenom™ II with six cores and it can really perform… and for under $300, you can afford it!!
