Testing

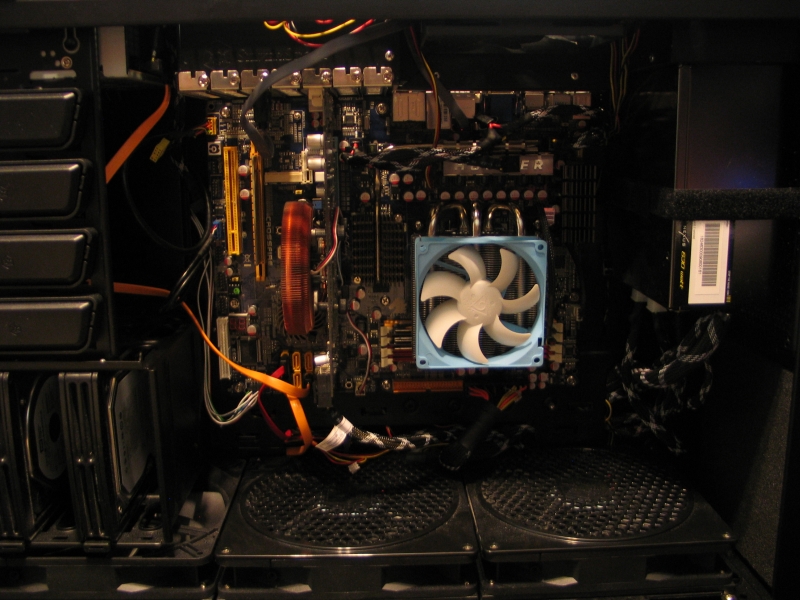

Installed in our test system, the Igloo 5760 had plenty of space on all sides. As mentioned before, it does overhang the RAM sockets, but this is only a concern with unusually tall RAM. Talking of test systems, here’s ours:
Test System | |
---|---|
CPU | AMD Phenom II X4 910e |
Heatsink | GlacialTech Igloo 5760 |
Motherboard | Jetway Hummer HA-09 |
Chipset | AMD 890GX |
Graphics card | ATI Radeon HD 4830 |
RAM | 2x2GB GeIL DDR3-1333, 7-7-7-24 timings |
HDD 1 | Seagate 7200.10 500GB |
HDD 2 | Western Digital Caviar Green 500GB |
Power Supply | Nexus RX-6300 630W |
Case | Silverstone Fortress FT-02 |
OS | Windows 7 Ultimate |
Drivers | Catalyst 10.4 unified drivers |

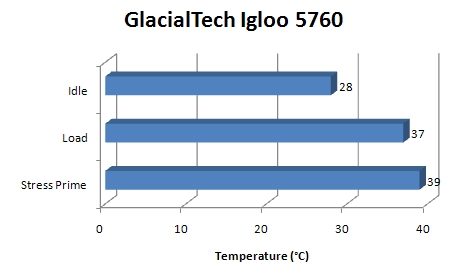

For our tests, we recorded the temperatures reported by the CPU’s on-die sensors when the system was sitting at idle, running under 100% load, and “maxed out” with the Stress Prime Orthos benchmark running on all 4 cores. We let the motherboard control the fan speed automatically. Temperatures were averaged over a period of 30 minutes for each phase, and the tests were run late at night, with an ambient temperature of 23°C.
The results are quite impressive for such a compact cooler: 8 degrees above ambient at idle, with a 9 degree rise at 100% load. Even during our Stress Prime benchmark, which is designed to heat up the CPU as much as possible, the temperature never got above 39°C, a scant 11 degrees above ambient. Fan noise was inaudible at idle, ramping up to a quiet hum at full speed. The sound is definitely noticeable, but pleasant and smooth.
Thoughts & Conclusion
GlacialTech has been consistent in delivering what I would term “invisible” technology: products that work well, consistently, and unobtrusively. The Igloo 5760 does a lot with its modest size and budget cost, delivering performance normally associated with larger coolers with a higher price premium. If you’re looking to build a small form-factor system, performance system, or even for your everyday needs this cooler is ideally suited for your needs—provided you aren’t too restricted on height, that is.
