GlacialTech UFO V51 CPU Heatsink

Features:

Dual silent / PWM fans
Battleship design concept
High quality polish bottom
GlacialTech logo in Silver
Multi-solution for Intel and AMD
High quality/performance heat pipes
Good air-flow design

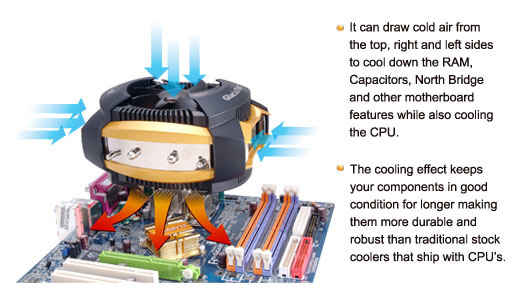

Air-flow Design

Specifications:

Model		UFO V51 Silent	UFO V51 PWM
CPU Clock Speed (max.)		AMD series Sempron™ (up to 89W) Athlon™ 64 (up to 89W) Athlon™ 64 FX (up to 125 W) Athlon™ 64 X2 Dual-Core (up to 89 W) Phenom™ X2 Quad-Core (up to 125 W) Phenom™ X3 Triple-Core (up to 95 W) Phenom™ X4 Quad-Core (up to 140 W) Opteron™ (up to 125W) Dual-Core Opteron™ (up to 125W) Second-Generation Opteron™ (up to 125 W) Third-Generation Opteron™ (up to 105 W) Intel series Core™ i7 965 (130W) Pentium® D 3.4 GHz (95W) Pentium® 4 ( Prescott ) 3.4 GHz (84W) Core™ 2 Duo E6700 2.66 GHz (65W) Core™ 2 Duo E4300 1.8 GHz (65W) Core™ 2 Extreme X6800 2.93 GHz (75W) Core™ 2 Extreme QX6850 (130W) Core™ 2 Quad Q6600 / 6700 (95W~105W) All Celeron (84W)	AMD series Sempron™ (up to 89W) Athlon™ 64 (up to 89W) Athlon™ 64 FX (up to 125 W) Athlon™ 64 X2 Dual-Core (up to 89 W) Phenom™ X2 Quad-Core (up to 125 W) Phenom™ X3 Triple-Core (up to 95 W) Phenom™ X4 Quad-Core (up to 140 W) Opteron™ (up to 125W) Dual-Core Opteron™ (up to 125W) Second-Generation Opteron™ (up to 125 W) Third-Generation Opteron™ (up to 105 W) Intel series Core™ i7 965 (130W) Pentium® D 3.4 GHz (95W) Pentium® 4 ( Prescott ) 3.4 GHz (84W) Core™ 2 Duo E6700 2.66 GHz (65W) Core™ 2 Duo E4300 1.8 GHz (65W) Core™ 2 Extreme X6800 2.93 GHz (75W) Core™ 2 Extreme QX6850 (130W) Core™ 2 Quad Q6600 / 6700 (95W~105W) All Celeron (84W)
Dimension (mm)		130 (L) × 157 (W) × 138 (H)
Weight (grams)		780
Fan	Type	12 Volts / Entering bearing
	Dimension (mm)	92 x 92 x 25
	Speed (RPM)	1600 (±10%)	800(± 300 rpm) ~ 2500(±10%)
	Airflow (CFM)	29.56 (±10%) per fan	46.18 (±10%) per fan
	Noise (dBA)	19 per fan	32 per fan (Max.)
Interface Material		High Efficiency Thermal Compound

Written by: Chris Swertfeger on Oct. 21, 2009
6 Comments
Download Review in PDF

Model		UFO V51 Silent	UFO V51 PWM
CPU Clock Speed (max.)		AMD series Sempron™ (up to 89W) Athlon™ 64 (up to 89W) Athlon™ 64 FX (up to 125 W) Athlon™ 64 X2 Dual-Core (up to 89 W) Phenom™ X2 Quad-Core (up to 125 W) Phenom™ X3 Triple-Core (up to 95 W) Phenom™ X4 Quad-Core (up to 140 W) Opteron™ (up to 125W) Dual-Core Opteron™ (up to 125W) Second-Generation Opteron™ (up to 125 W) Third-Generation Opteron™ (up to 105 W) Intel series Core™ i7 965 (130W) Pentium® D 3.4 GHz (95W) Pentium® 4 ( Prescott ) 3.4 GHz (84W) Core™ 2 Duo E6700 2.66 GHz (65W) Core™ 2 Duo E4300 1.8 GHz (65W) Core™ 2 Extreme X6800 2.93 GHz (75W) Core™ 2 Extreme QX6850 (130W) Core™ 2 Quad Q6600 / 6700 (95W~105W) All Celeron (84W)	AMD series Sempron™ (up to 89W) Athlon™ 64 (up to 89W) Athlon™ 64 FX (up to 125 W) Athlon™ 64 X2 Dual-Core (up to 89 W) Phenom™ X2 Quad-Core (up to 125 W) Phenom™ X3 Triple-Core (up to 95 W) Phenom™ X4 Quad-Core (up to 140 W) Opteron™ (up to 125W) Dual-Core Opteron™ (up to 125W) Second-Generation Opteron™ (up to 125 W) Third-Generation Opteron™ (up to 105 W) Intel series Core™ i7 965 (130W) Pentium® D 3.4 GHz (95W) Pentium® 4 ( Prescott ) 3.4 GHz (84W) Core™ 2 Duo E6700 2.66 GHz (65W) Core™ 2 Duo E4300 1.8 GHz (65W) Core™ 2 Extreme X6800 2.93 GHz (75W) Core™ 2 Extreme QX6850 (130W) Core™ 2 Quad Q6600 / 6700 (95W~105W) All Celeron (84W)
Dimension (mm)		130 (L) × 157 (W) × 138 (H)
Weight (grams)		780
Fan	Type	12 Volts / Entering bearing
	Dimension (mm)	92 x 92 x 25
	Speed (RPM)	1600 (±10%)	800(± 300 rpm) ~ 2500(±10%)
	Airflow (CFM)	29.56 (±10%) per fan	46.18 (±10%) per fan
	Noise (dBA)	19 per fan	32 per fan (Max.)
Interface Material		High Efficiency Thermal Compound
