TYAN S5510GM3NR Server Motherboard

TYAN index logo TYAN S5510GM3NR Server Motherboard

Introduction:

TYAN is no stranger to the enterprise marketplace. TYAN has been making quality motherboard for servers for a long time now. It’s no surprise then that TYAN has a new board for the Xeon version of Sandy Bridge. Today we will be looking at their new S5510GM3NR coupled with a Sandy Bridge style Xeon E3-1220. We’ll explore the functionality of the board and put the Sandy Bridge Xeon through its paces. Read on to find out if TYAN can live up to their legacy.

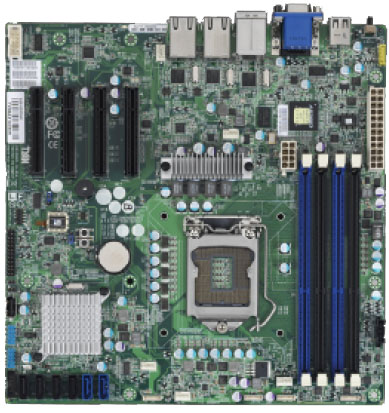

thumbs board TYAN S5510GM3NR Server Motherboard



Features:

  • Single LGA1155 socket supports (1) Intel® Xeon® processor E3-1200 series and Intel® Core™ i3 processors
  • Intel® C204 PCH / Intel® C202 PCH
  • (4) 240-pin DDR3 DIMM slots support up to 32GB U-DDR3 1333/1066  MHz w/ ECC memory
  • (2) PCI-E Gen.2 x8 slot (w/ x8 link)
  • (2) PCI-E Gen.2 x8 slots (w/ x4 link)
  • (4) SATA-II connectors w/ RAID 0, 1, 10, 5 support
  • (2) SATA-III connectors
  • (3) GbE LAN
  • AST2150 BMC w/ IPMI and iKVM support
  • microATX (9.6″ x 9.6″) form factor
