XClio A380Color-PLUS Full Tower Case

Packing:

The case arrived well packaged from XClio with form-fitted foam inserts to protect everything during transit to the Labs.  The case was easy removed from the packaging as the front of the case was facing the box opening.  A simple cut of the taped seam and the huge front fan of the case was revealed.  The case was packaged snugly in the cardboard box, but the over-sized form inserts and thick plastic bag acted as perfect grab handles to slide the case out of the box with ease. The first notable feature was the massive front cooling fan that was the center point of the front design. This main feature is surrounded on each side by wings that streamline the large circular opening into the two sides of the main body. The sturdy plastic door features the XClio logo and lights up in sync with the unique 256 color LED lighting system, more about that later. The drive bay door closes securely and opens to the left when facing the case from the front. Behind the door you will find enough bays to accommodate 5 CD drives and 1 floppy drives.

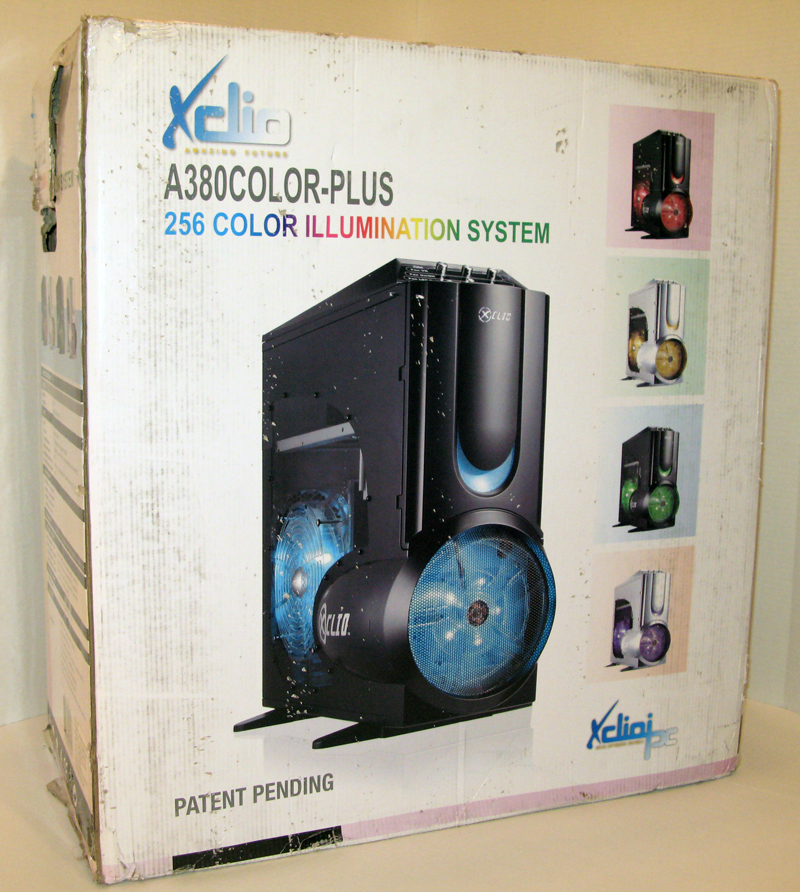

In box

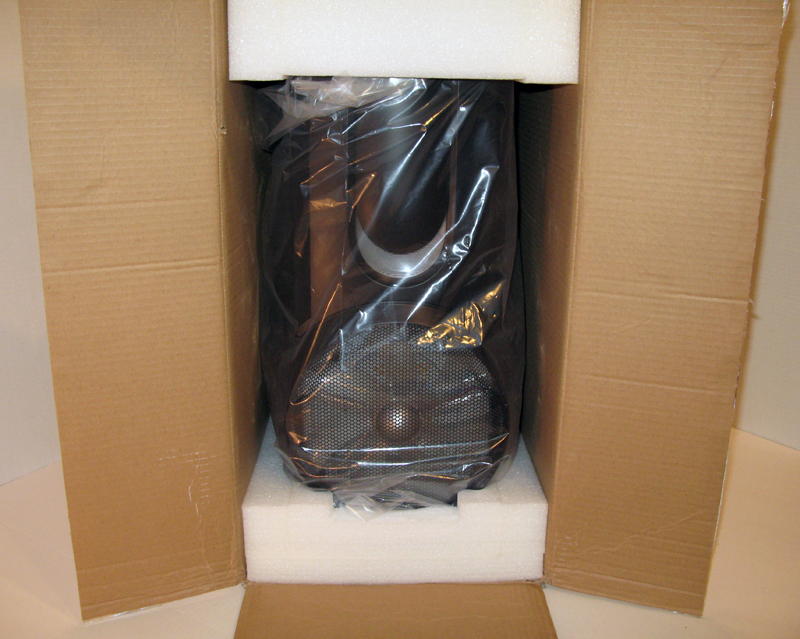

Open box

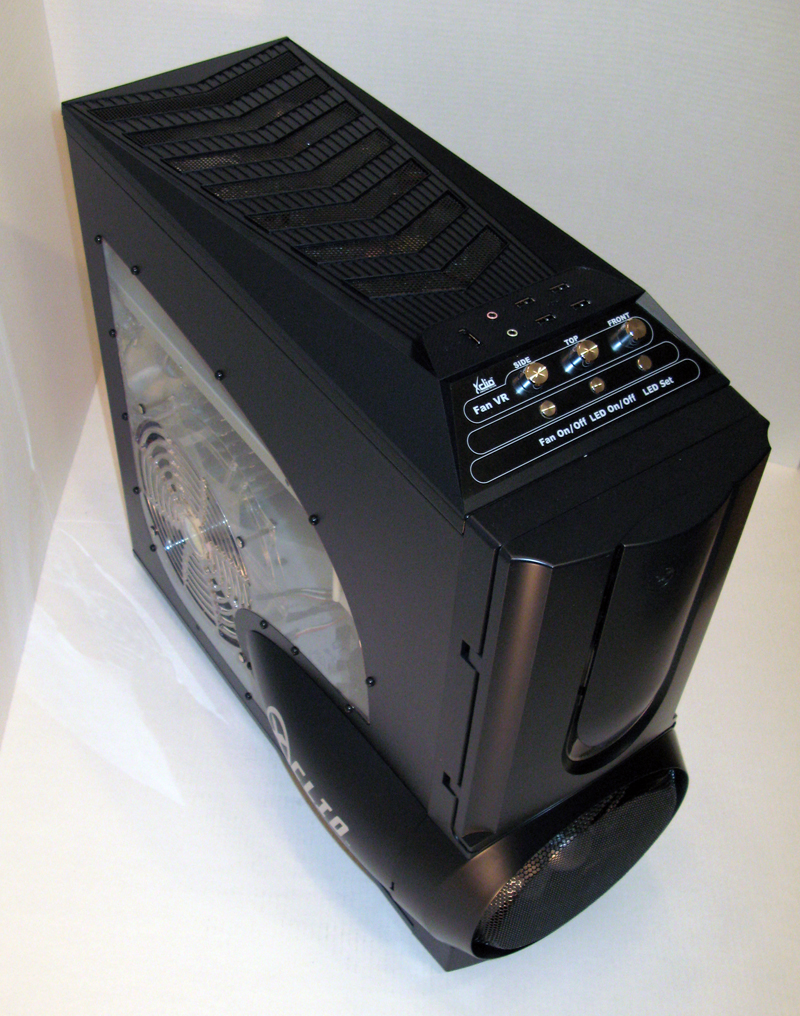

Unboxed

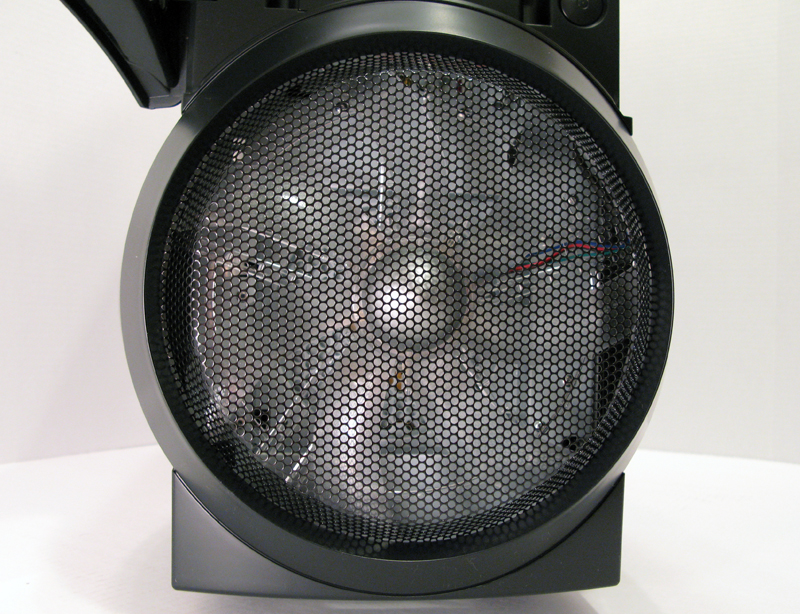

front fan closeup topfan Top Panel 2

Here are the case specifications from XClio for the A380COLOR-Plus:

Model
Brand XClio
Model A380COLOR – PLUS
Spec
Type Full Tower
Color Fully BLACK Finish
Case Material Chassis: 1.0 mm SECC ; Frontpanel: ABS Plastic
With Power Supply No
Motherboard Compatibility Micro ATX, Standard ATX, MP Dual CPU(12’x13′)
With Side Panel Window Yes
Expansion
External 5.25″ Drive Bays 5
External 3.5″ Drive Bays 1
Internal 3.5″ Drive Bays 6
Expansion Slots 7

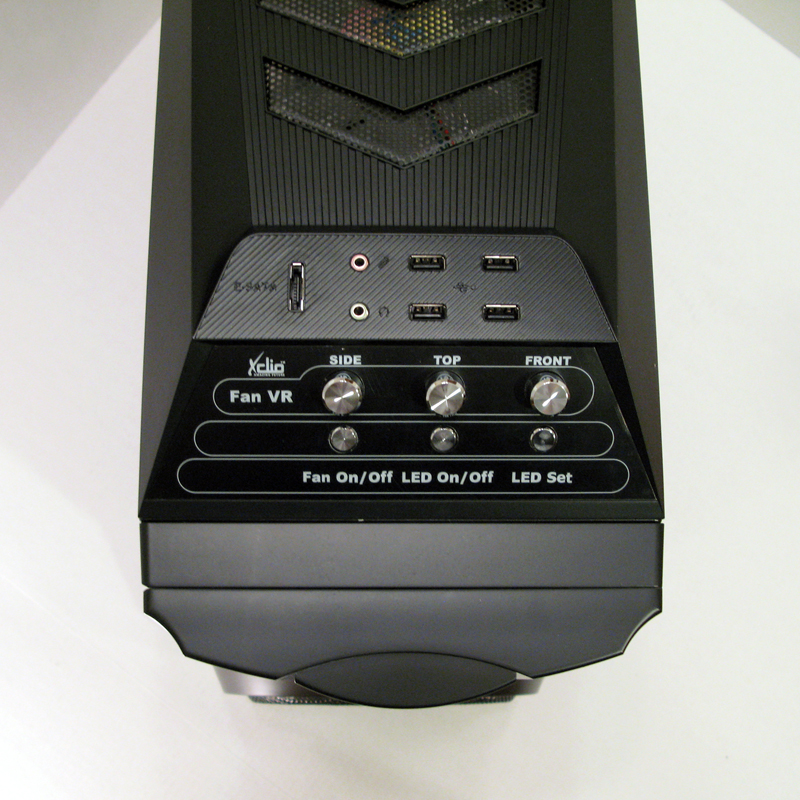

Top Panel
Top Ports USB2.0 * 2 + Audio & Speaker ports (AC97+HD audio)+E-SATA
Cooling System
Case Chassis – Top 18cm * 2
(with 256Color LED, VR fan speed control, ON/OFF Switch)
Case Chassis – Front 25cm * 1
(with 256Color LED, VR fan speed control, ON/OFF Switch)
Case Chassis – Side 25cm * 1
(with 256Color LED, VR fan speed control, ON/OFF Switch)
Case Chassis – Rear 12cm * 1 (fixed speed)
Physical Spec
Dimensions 570 x 205 x 563mm (D*W*H)
