Antec Six Hundred v2 Case



Already figured out what you are going to get for your new gaming rig, but can’t decide on a case? Take a look at what we just got from Antec. The Antec Six Hundred v2. This mid-tower can hold up to six 3.5″ HDDs, three 5.25″ drives, and has a bottom mount for 2.5″HDD/SSD as well as front-loading 2.5″/SSD hot-swap bay for quick drive changes. Not only that, but the Antec Six Hundred can hold up to an 11.5″(292mm) video card which should fit all but the most extreme video cards. Still interested? Good. Read on to find out more about the Antec Six Hundred v2.

Features & Specifications

  • Bottom-mounted power supply isolates heat and noise
  • Front-loaded hot swap 2.5″ drive caddy
  • Perforated front bezel delivers maximum air intake
  • CPU cutout allows for easy installation of CPU coolers
  • Windowed top panel for unique “moonroof” visibility
  • Windowed side panel with optional fan mount
  • Cable management compartment organizes cables discreetly
  • Front-loaded HDD cage for up to 6 hard disk drives
  • Cable management ties help keep your case tidier
  • 11 drive bays
    – 6 x internal 3.5″ HDDs
    – 3 x external 5.25″ HDDs
    – 1 x external front-loaded hot swap 2.5″ SATA HDD caddy
    – 1 x internal bottom-mounted 2.5″ SSD drive
  • 7 expansion slots
  • Cooling system
    – 1 x top 200mm TriCool™ blue LED fan
    – 1 x rear 120mm TwoCool™ blue LED fan
    – 2 x front 120mm fans for HDDs (optional)
    – 1 x side 120mm fan for graphics cards (optional)
  • Front ports
    – 3 x USB 2.0
    – Audio (AC’97 and HDA compatible) In and Out
  • Washable air filters for quick, easy cleaning
  • Maximum video card size: 11.5″/292mm (Note: some video cards may block access to the adjacent hard drive bay)
  • Motherboards: Mini-ITX, microATX, Standard ATX
  • Power supply not included
  • Unit dimensions
    – 491 mm (H) x 212 mm (W) x 492 mm (D)
    – 19.3″ (H) x 8.3″ (W) x 19.4″ (D)
  • Package dimensions
    – 565 mm (H) x 273 mm (W) x 559 mm (D)
    – 22.2″ (H) x 10.7″ (W) x 22.0″ (D)
  • Net weight: 15.3 lbs / 6.9 kg
  • Gross weight: 18.7 lbs / 8.5 kg

Closer Look

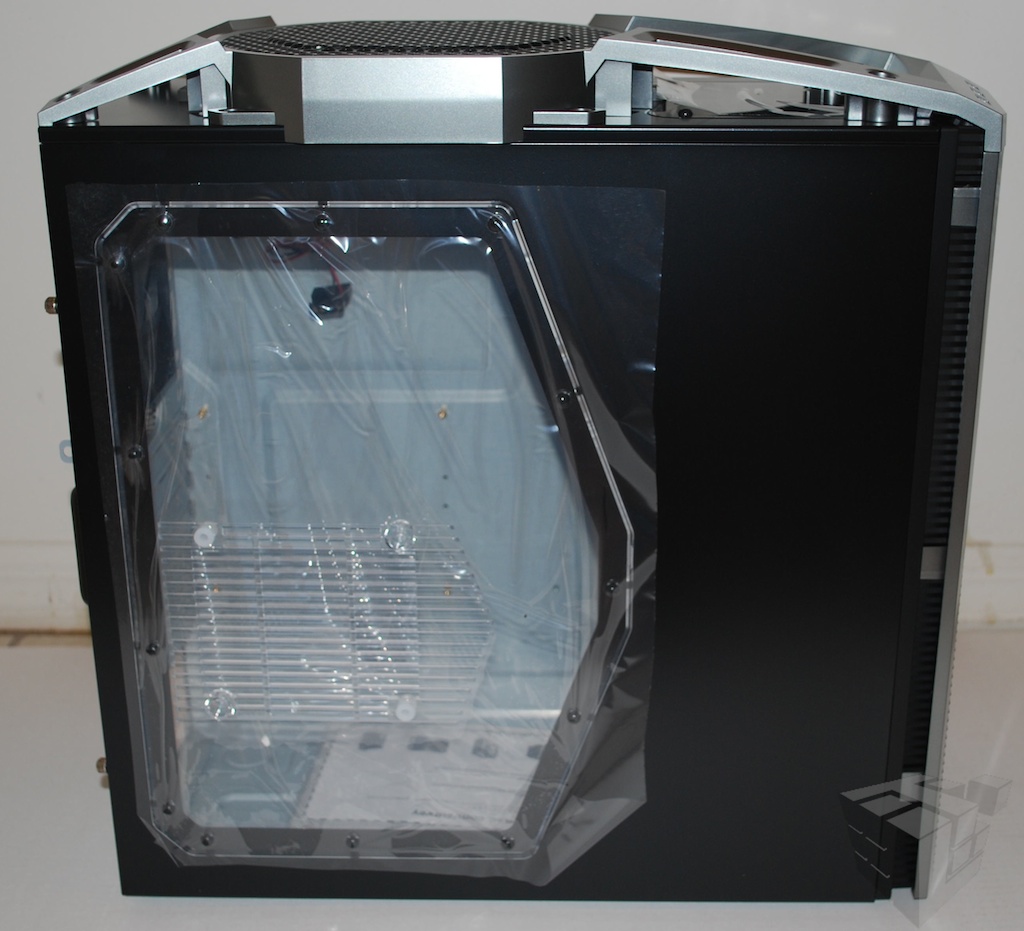

The Antec Six Hundred comes boxed in the usual fashion with Styrofoam and plastic, so you shouldn’t worry about this shipping to you damaged. All the screws and manuals come in a zip-top bag. The manual does not differentiate between screws, but most of them have the same threading and there are enough to match for various parts of the rig.

antec600 antec6001

(continued next page…)
