ASRock Z68 Extreme7 Gen3 Intel Motherboard

Features and Specifications

The ASRock Z68 Extreme7 Gen3 motherboard features some of the highest quality components and latest innovations on the motherboard scene. Some of the most notable features include:

• Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
• Digi Power, Advanced V8 + 4 Power Phase Design – to put power where you need it and scale back for power savings when you don’t
• NVIDIA^® NF200 Chip Onboard – This enables true dual VGA cards at PCI-E x16/x16 speeds and three VGA cards at x16 / x8 / x8 speeds.
• Integrated PLX PEX8608 chip onboard to offer sufficient bandwidth for the next generation of PCI-E 3.0 lane.

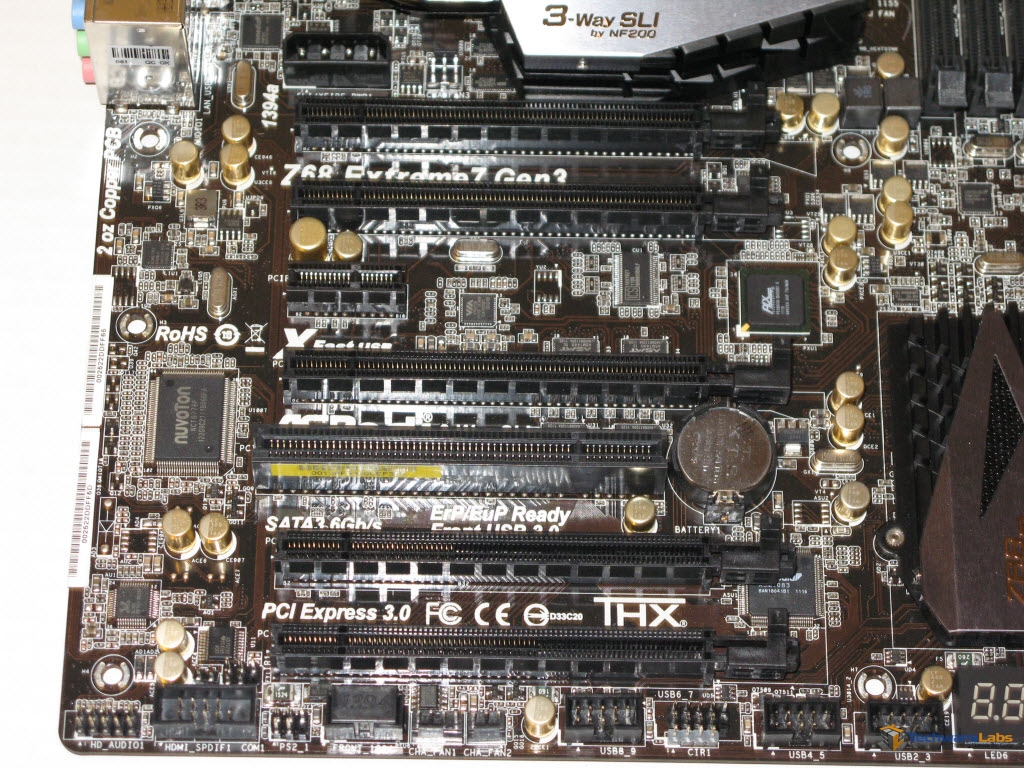

• 1x PCIe 3.0 x16 Slot, 4 PCIe 2.0 x16 Slots, Supports AMD 3-Way CrossFireX™ and NVIDIA^® 3-Way SLI™
• Supports the latest Sandy Bridge Intel^® HD Graphics Built-in Visually Smart on-board graphics.

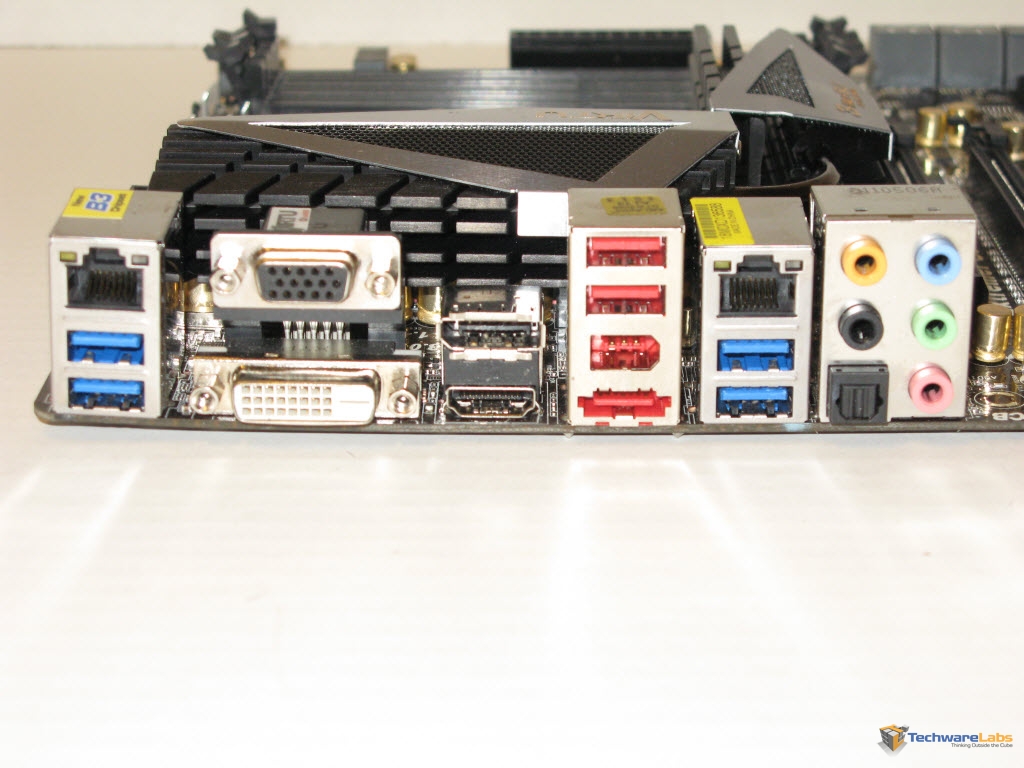

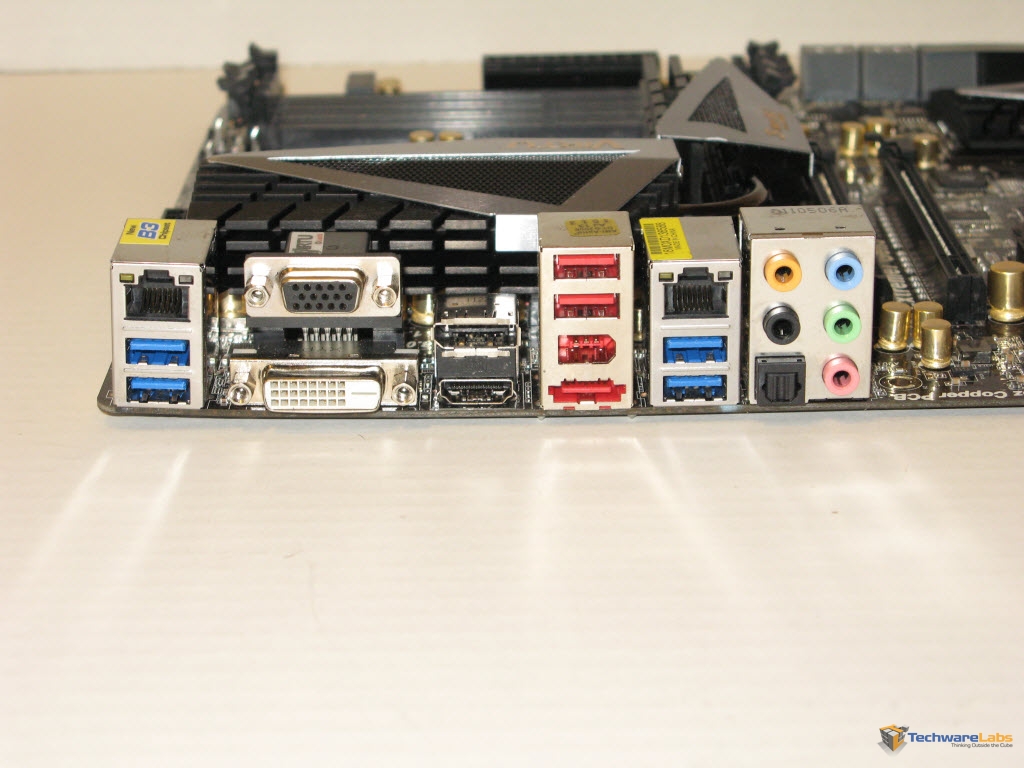

• Multi VGA Output : D-Sub, DVI-D, HDMI, and DisplayPort all on-board.
• Supports Dual Gigabit LAN with Teaming function (802.3 ad link aggregation)
• Dr. Debug, Smart Switch Design: Power/Reset/Clear CMOS Switch with LED on the motherboard – perfect for testing during the building process and finding those pesky problems that can arise during a custom build.
• Support Intel^® Smart Response technology uses SATA SSDs to accelerate standard rotational hard drives.
• Lucid Virtu Switchable Graphics assigns task dynamically to offer the best real time power and performance from your setup.
• ASRock XFast Charger Technology enabling charging of high power draw devices such as Apple iPad and other BC 1.1 standard smart devices.
• ASRock XFast USB and XFast LAN Technologies are software applications that work to maximize the potential of the USB and LAN hardware.
• ASRock On/Off Play application along with the included 3.5mm stereo audio cable enable use of PC speakers connected to the motherboard even when your system is powered off (ACPI S5 mode)
• BIOS features an easy to use graphical UEFI and provided ASRock Extreme Tuning Utility (AXTU Windows) enable simple overclocking and adjustments at the click of a mouse.
• Combo Cooler Option (C.C.O.) means you can still use your favorite cooler from your previous 1156 or 775 socket based system.
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio™ audio experience
• Free Bundle : Front USB 3.0 Panel, Rear USB 3.0 Bracket, 3.5mm Audio Cable, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
