Channel Master

Subscription-Free Antenna DVR: Watch, Pause and Record Live TV

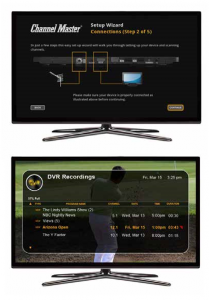

Channel Master GUI

  • 16GB model requires external USB hard drive – $249
  • 1TB model includes internal hard drive – $399

Subscription-free, over-the-air DVR that integrates online streaming services directly into the 14-day program guide and lets you choose your recording capacity. Without an Internet connection, consumers still enjoy a full DVR experince with an abbreviated 2-day program guide.

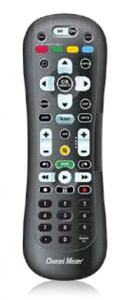

What’s Included Channel Master Remote

  • DVR+ Receiver/Recorder
  • Quick Start Guide
  • IR Universal Backlit Remote
  • (2) Lithium 3V CR2032 Batteries
  • External Power Supply
  • 1 year Limited Warranty

Optional

  • USB WiFi Adapter (MSRP $39)

Channel Master DVR



Features

  • Two ATSC tuners
  • No fan – silent operation
  • Works with all TV antennas
  • Uncompressed HD programming
  • SD and HD video resolutions up to 1080i and 1080p
  • 14-day program guide with Internet connection
  • 2-day program guide without Internet connection
  • Easy installation with on-screen setup wizard
  • Automatic software updates via Internet connection or USB download
  • Dolby® Digital Plus surround sound
  • Ultra-low power consumption (ENERGY STAR 3.0 compliant)
  • Universal IR remote control with built-in device database

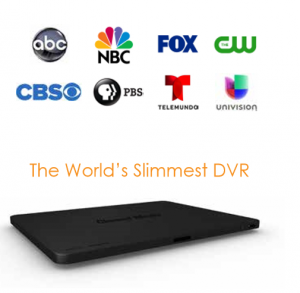

Channel Master Listing DesignFront Panel

  • User-dimmable bi-color power/status LED
  • Wide range IR sensor
  • Power/Standby button











Rear Panel

  • Tuner Input Connector – 75ohm
  • Two USB – 2.0 ports – Type A
  • HDMl-1.3a port (with HDCP 1.3)
  • Mini TOSLINK – S/PDIF (Optical)
  • RJ45 – 10/1 OOBase – T Ethernet Port
  • 3.5mm jack (TRS) – IR Extension Port

Channel Master Ports

Specifications:

  • 0°C-45°C operating temperature
  • 8 x 10.5 x .5 in
  • 1.14 lb
