Overclock
Select 2nd Gen Core family processors delimited with a ‘K’ in the product identification are unlocked meaning the multiplier can be adjusted to change the overall CPU speed. Basically CPU speed = CPU Ratio (or multiplier) times Base clock frequency (or BCLK). Although the BCLK is able to adjust -/+ 10% it is best practice to leave it at the default and specified 100MHz.
Benchmarks – Overclocked to 4.40 Ghz

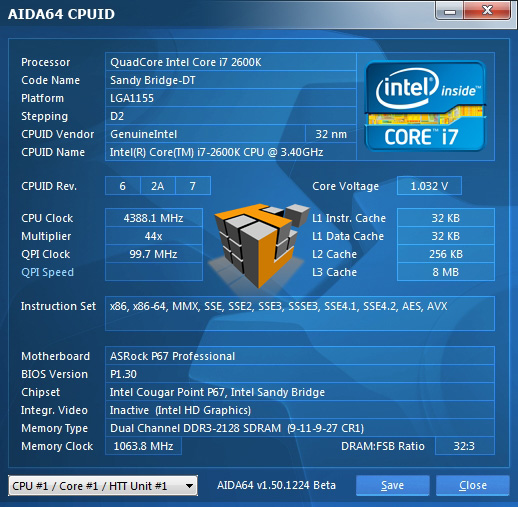

With a multiplier of 44 and a base clock of 100Mhz 44 x 100Mhz = 4400Mhz or 4.40 Ghz. With a 29% increase in clock speed the CPU averaged about 36C/97F doing basic word processing and web browsing. Now to put the processor to the test at 4.40 Ghz.
AIDA64 v1.50.1230
 |
 |

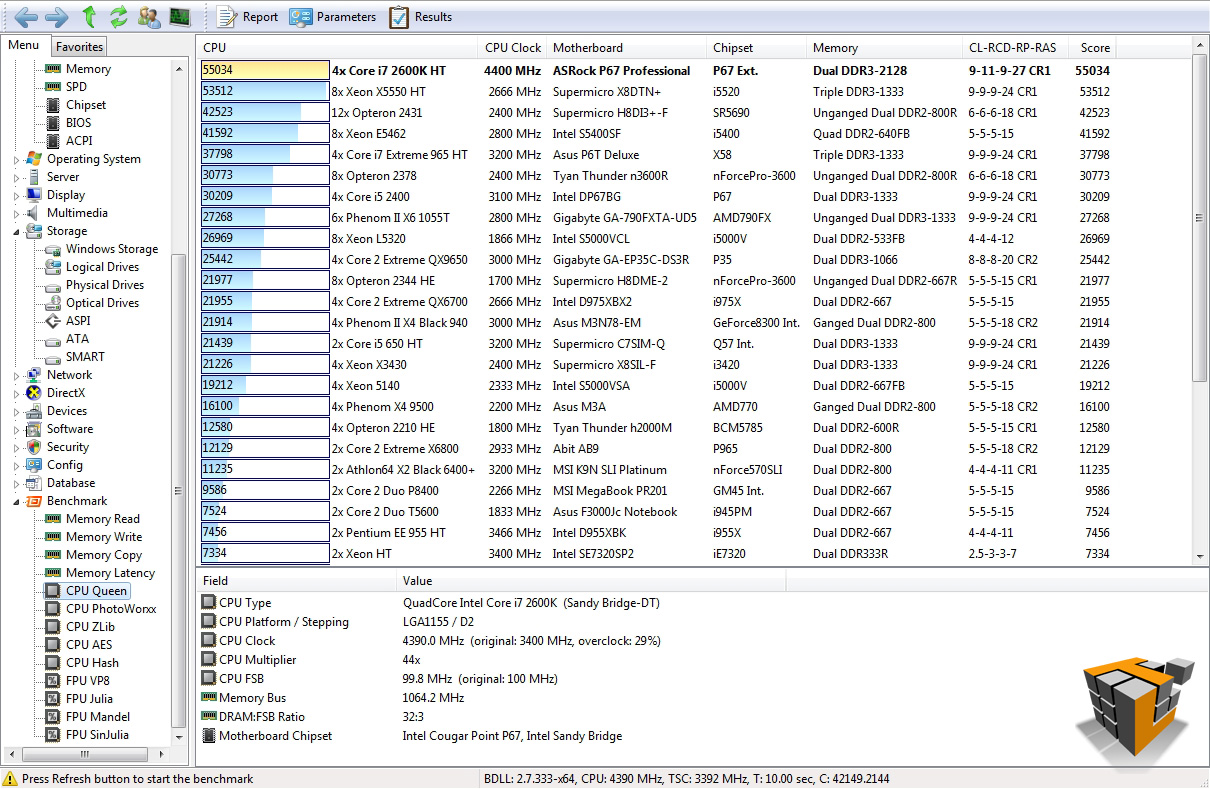

| CPU Queen – 1st
[2600K] 555034 vs 37775 [2500K] |

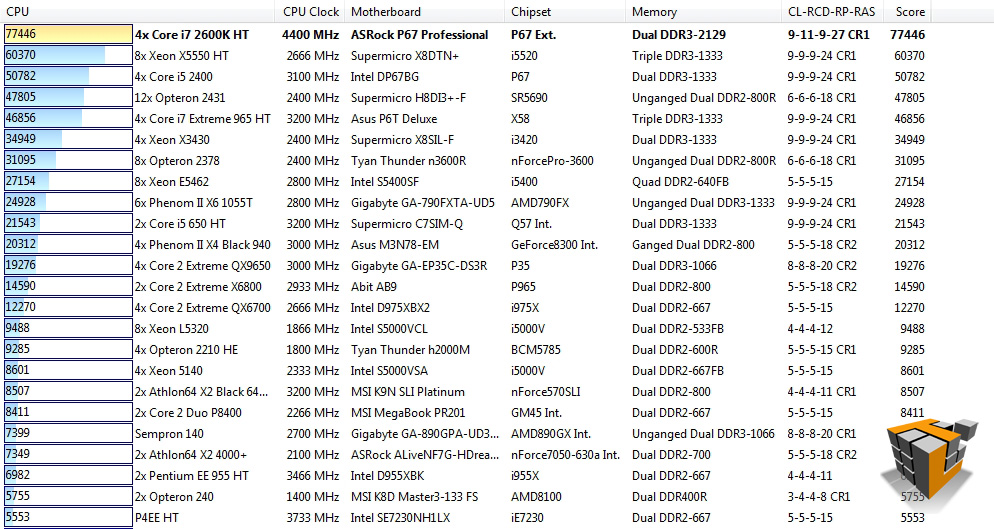

CPU PhotoWorxx – 1st
[2600K] 77446 vs 69903 [2500K] |
 |
 |

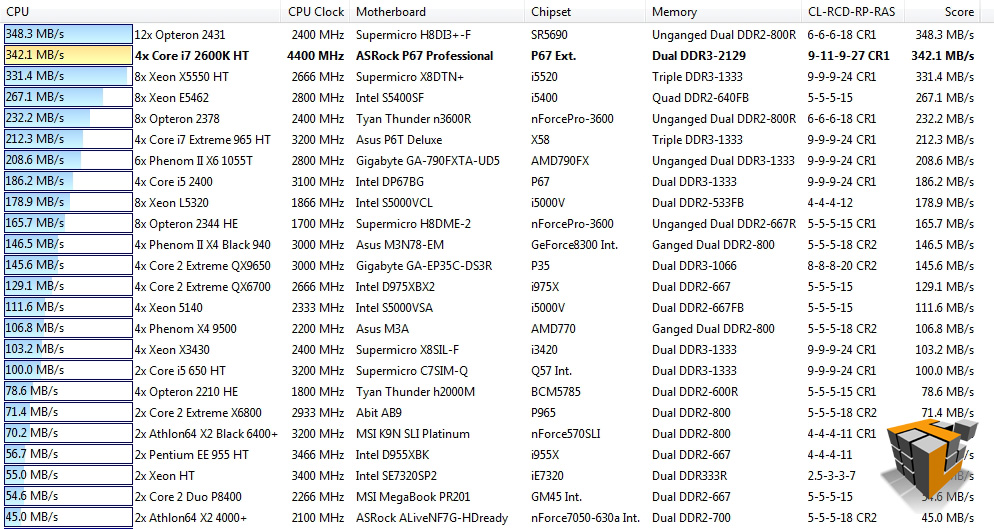

| CPU Zlib – 2nd
[2600K] 342.1 MB/s vs 233.6 MB/s [2500K] |

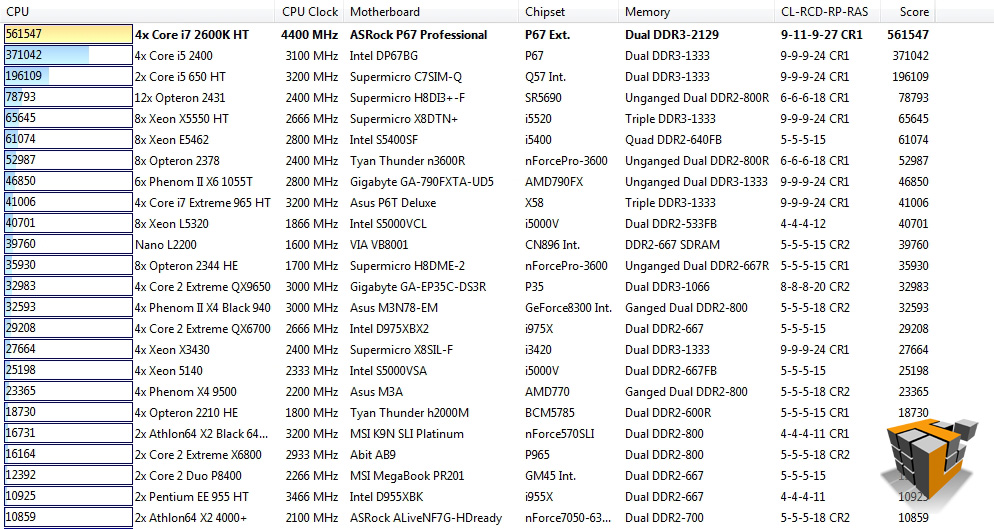

CPU AES – 1st
[2600K] 561547 vs 575612 [2500K] |
 |
|

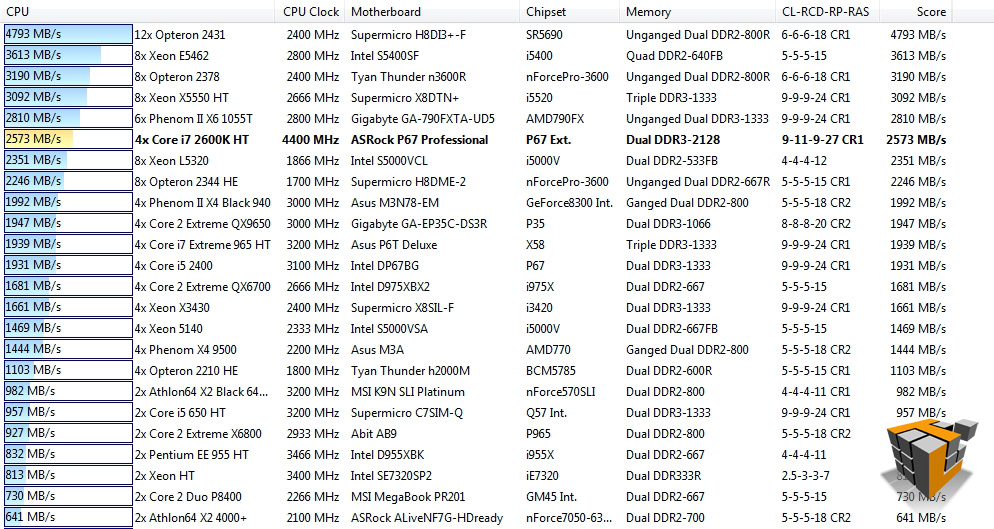

| CPU Hash – 6th
[2600K] 2573 MB/s vs 2316 MB/s [2500K] |
|
In our AIDA64 benchmarks we find improvements in scores in all 5 tests. Results in all tests move the i7-2600K to 1st place in all but 1 test, CPU Hash. The over-clocked 2600K remains a distance ahead of the over-clocked 2500K in all tests.
PCMark Vantage x64
 |
 |
| How the test was setup to run | Results – 13711 Marks; up from 12220 stock |
The 2600K overclock to 4.40 GHz gains ~1500 Marks in the PCMark Vantage test suite showing that even this small overclock will squeeze extra juice from the i7-2600K.

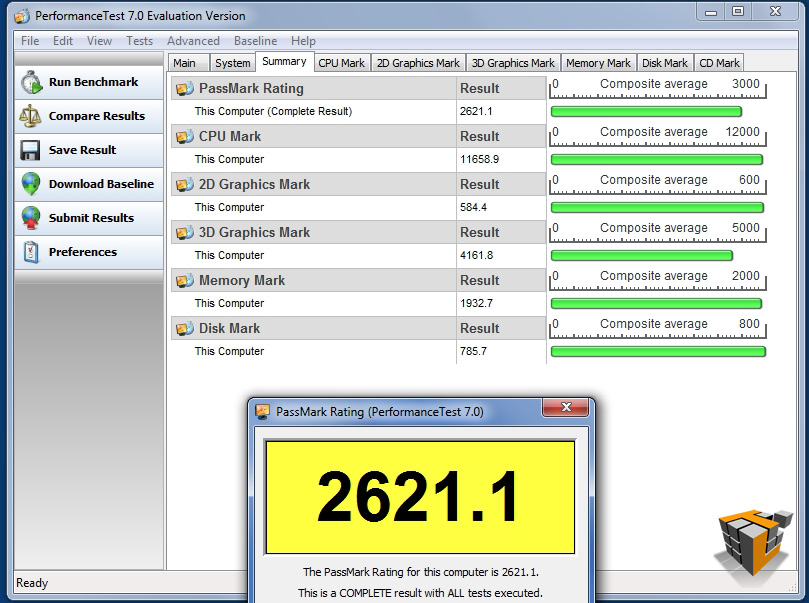

PerformanceTest v7.0
 |
 |
| PassMark Rating – 2621.1; up from 2297 .2 stock |

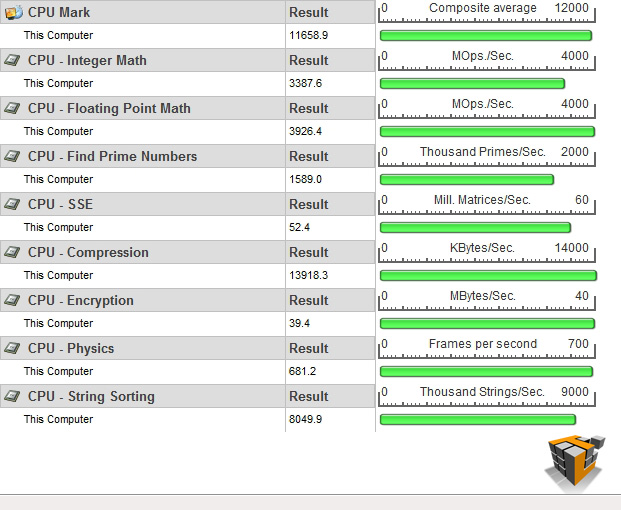

CPU Rating – 11658.9; up from 9390.8 stock |
| [2500K 8287.8] | |
 |
|
|

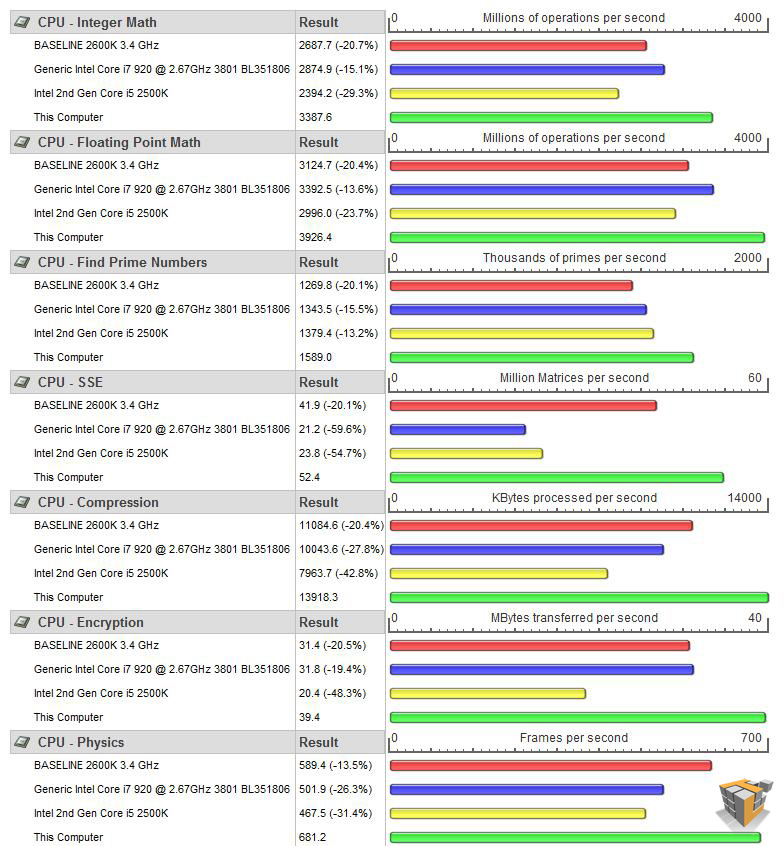

Detailed CPU comparison to i7 920, i5-2500K, i7-2600K Stock The OC Core i7-2600K is in green 1st in all categories, severely passing in some!
|
|
Overall we see about 14% increase in performance indicated by the PerformanceTest suite, not bad for a 29% overclock.
SiSoftware Sandra 2011c
 |
 |
 |

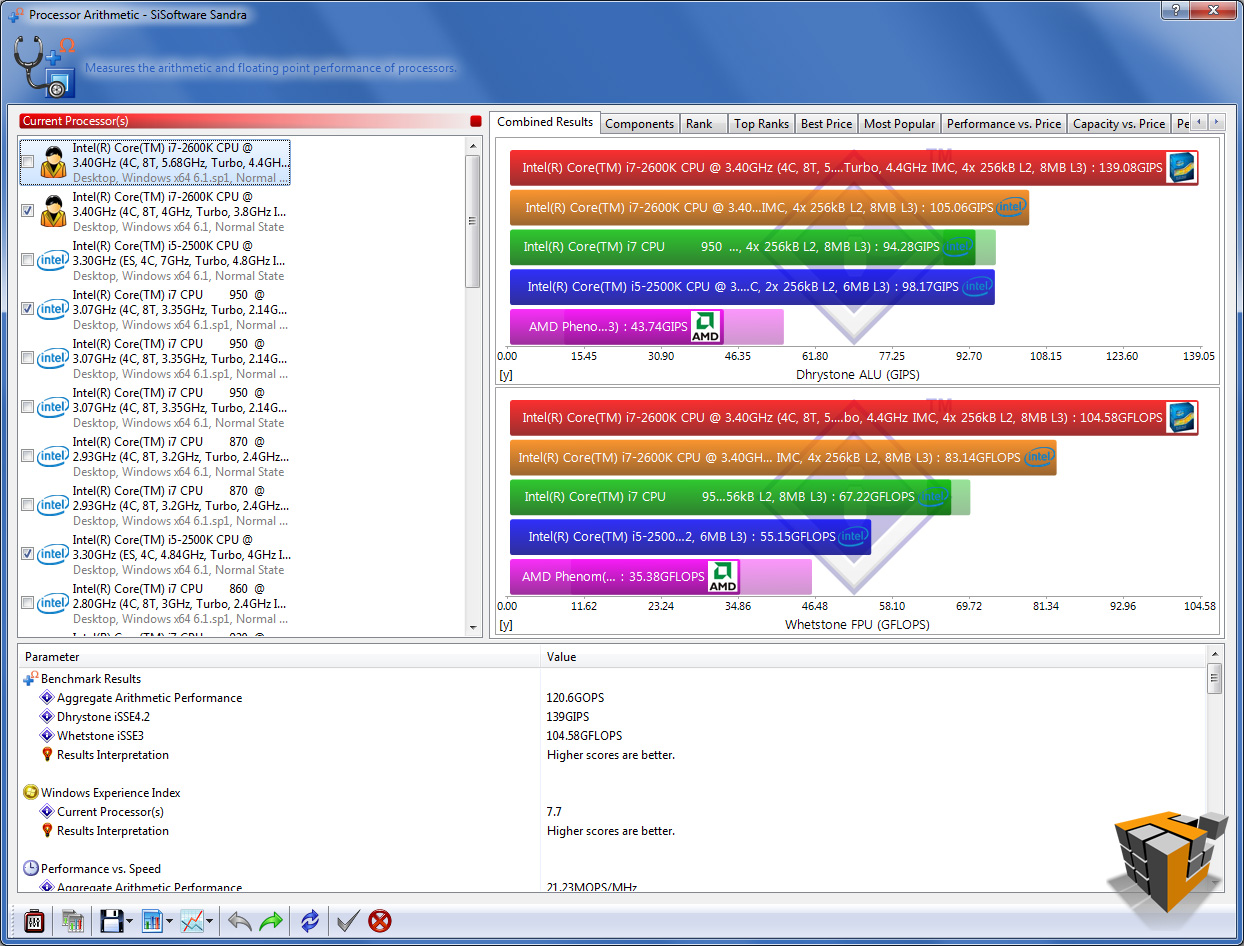

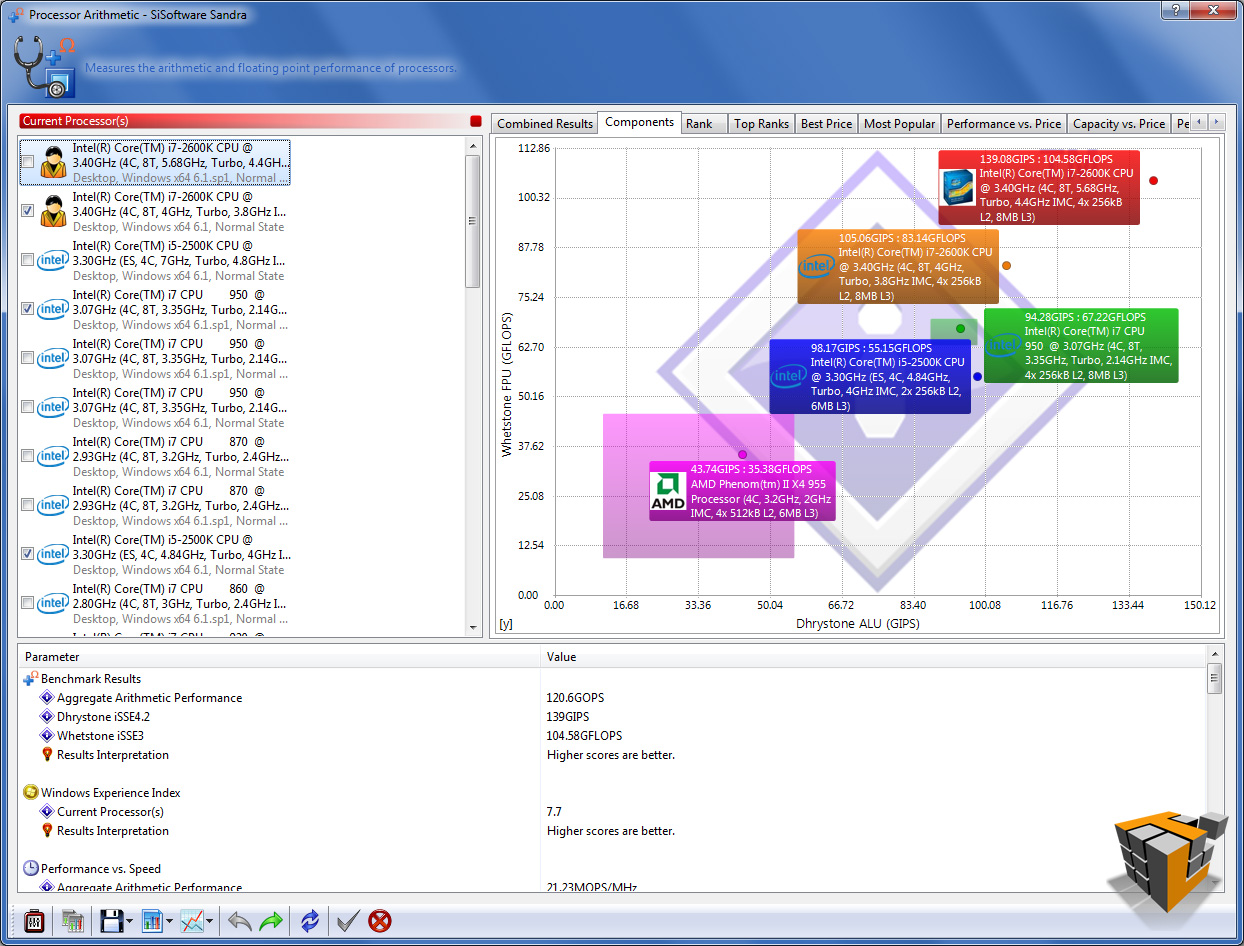

| Processor Arithmetic | ||
 |
 |
 |

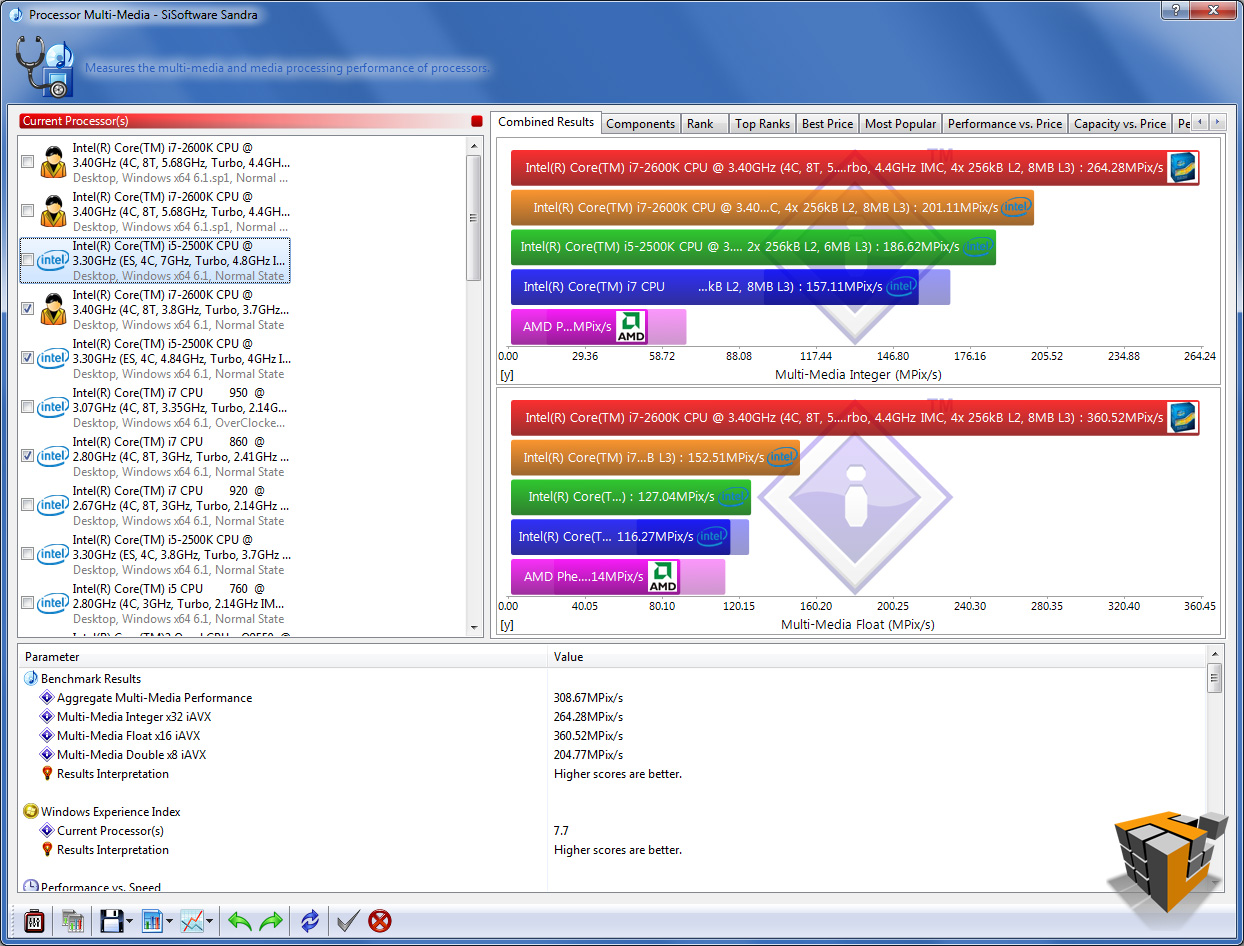

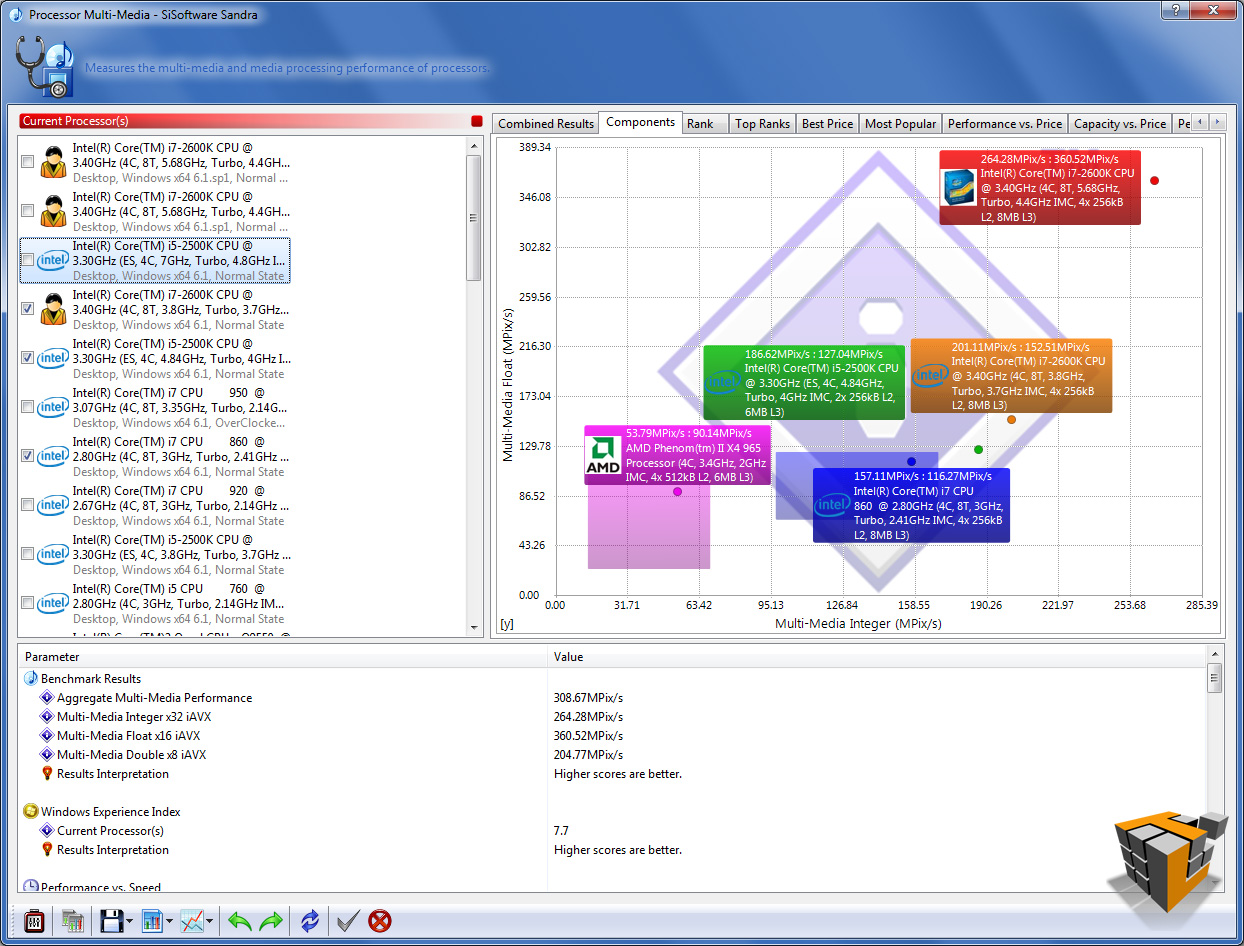

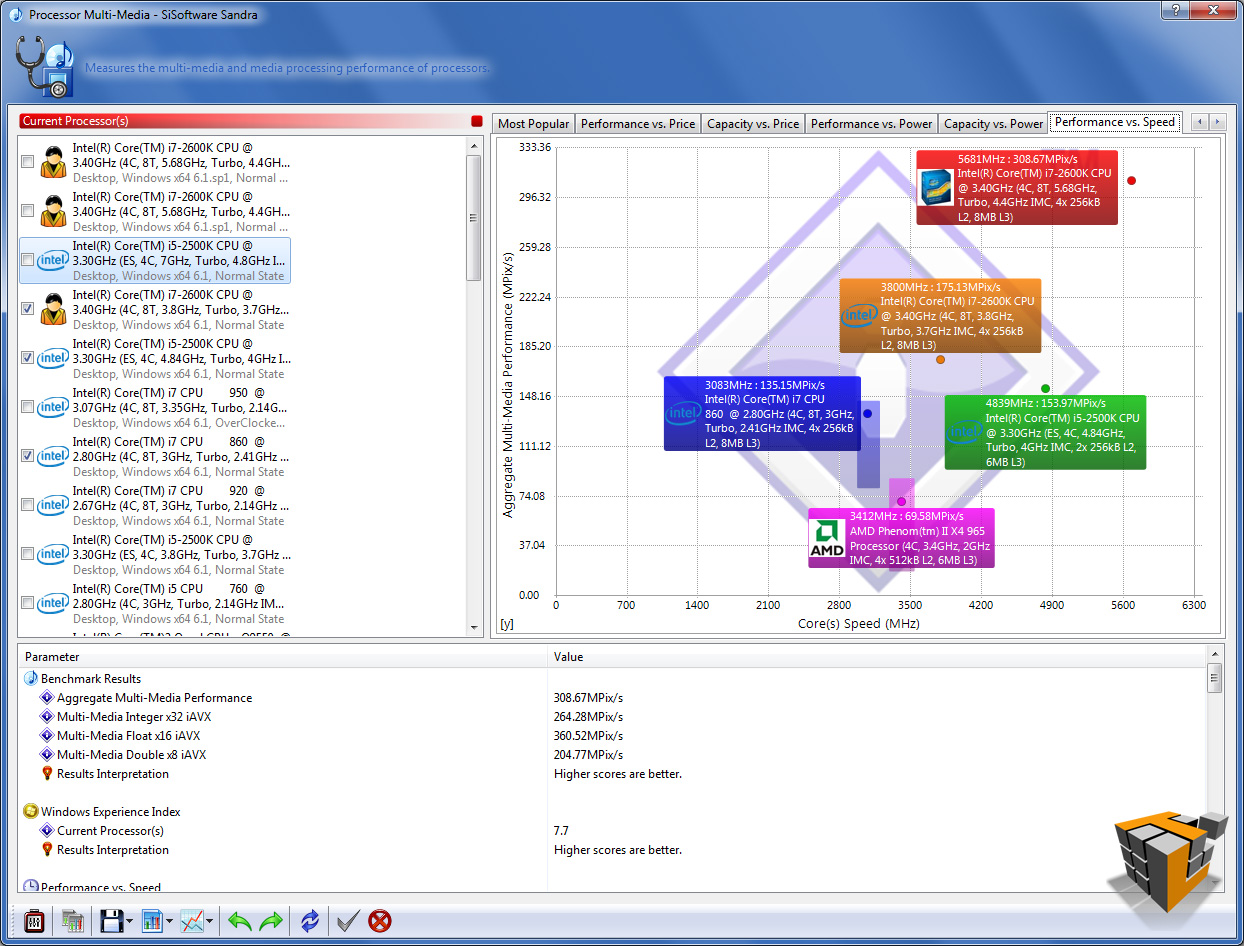

| Processor Multi-Media | ||
 |
 |
 |

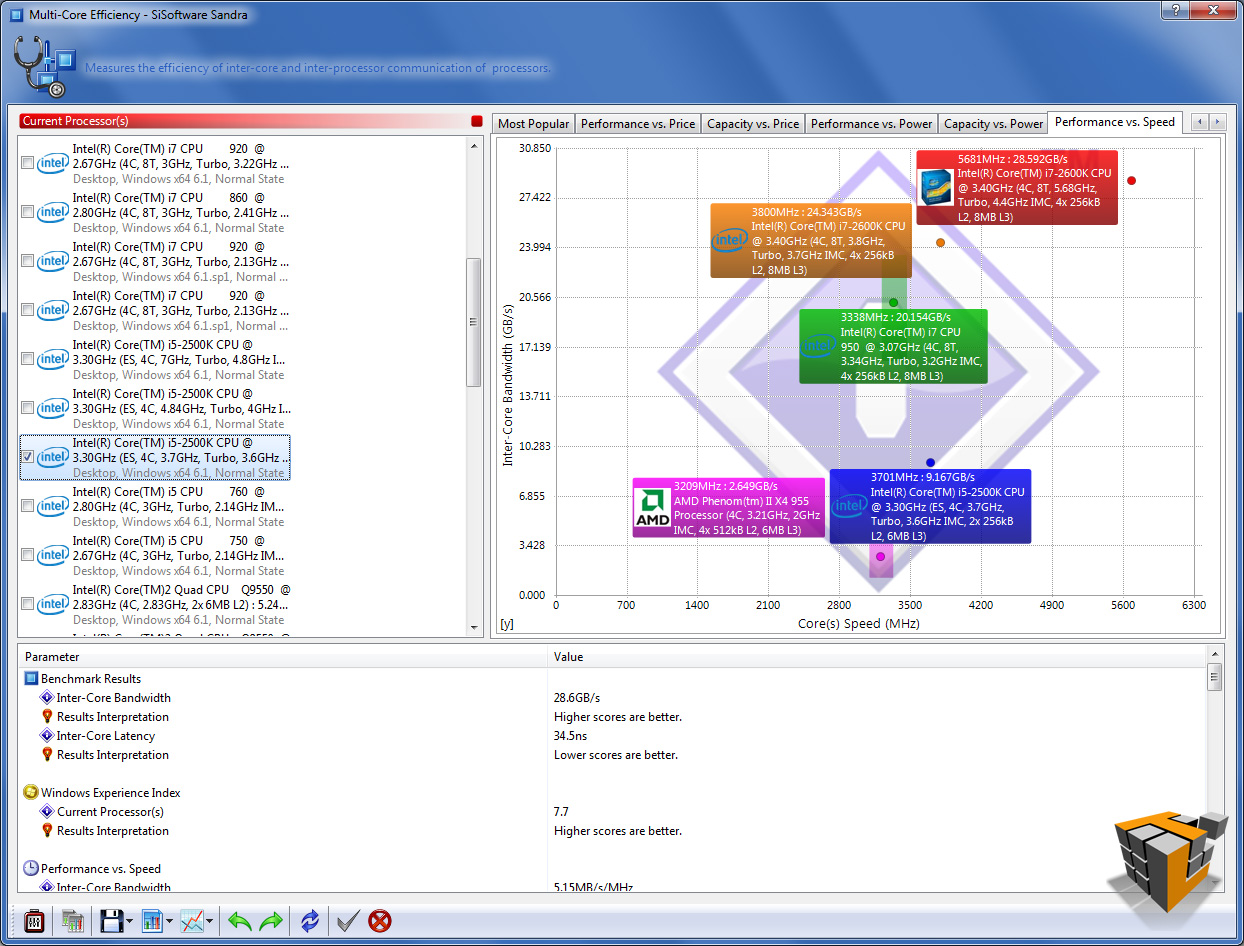

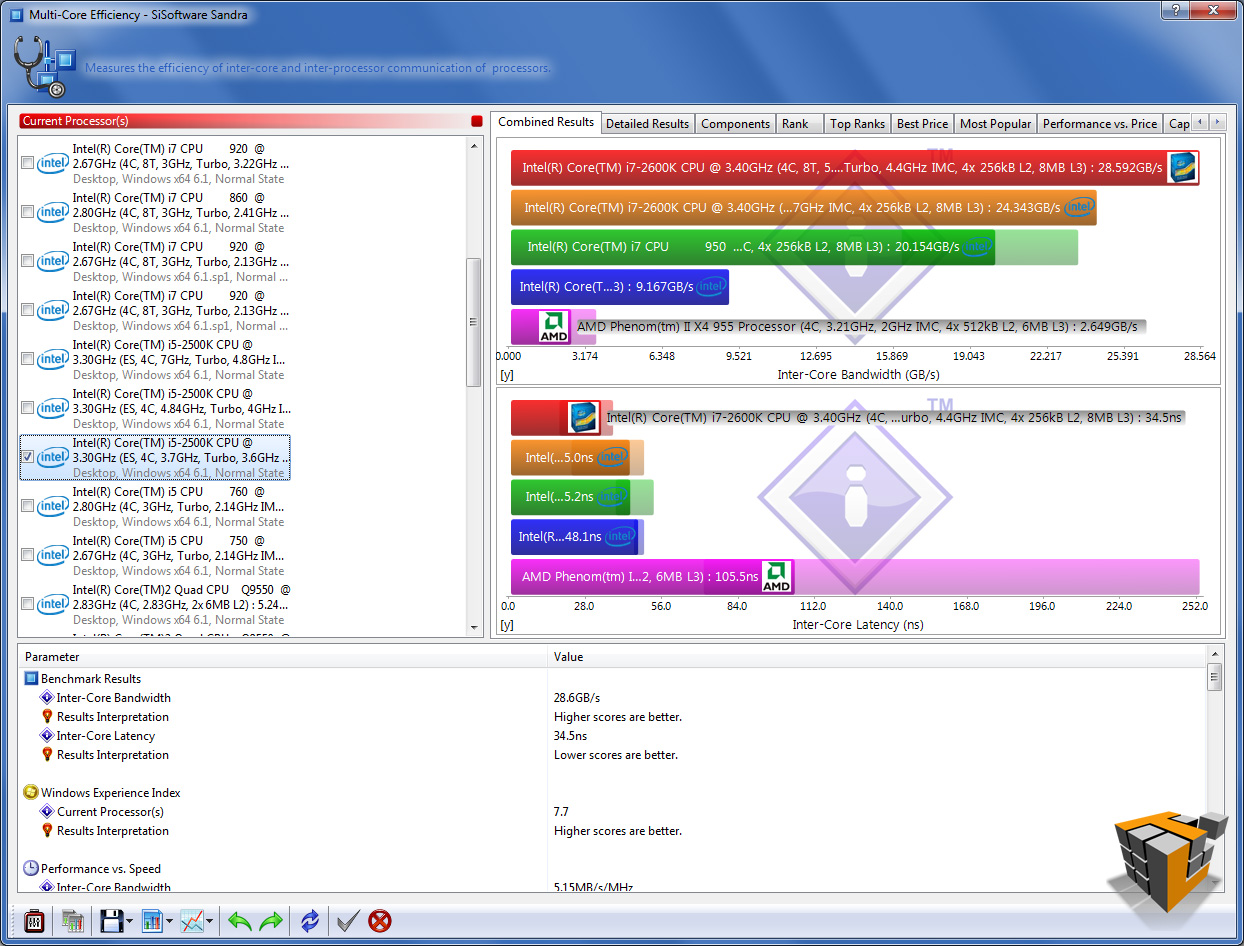

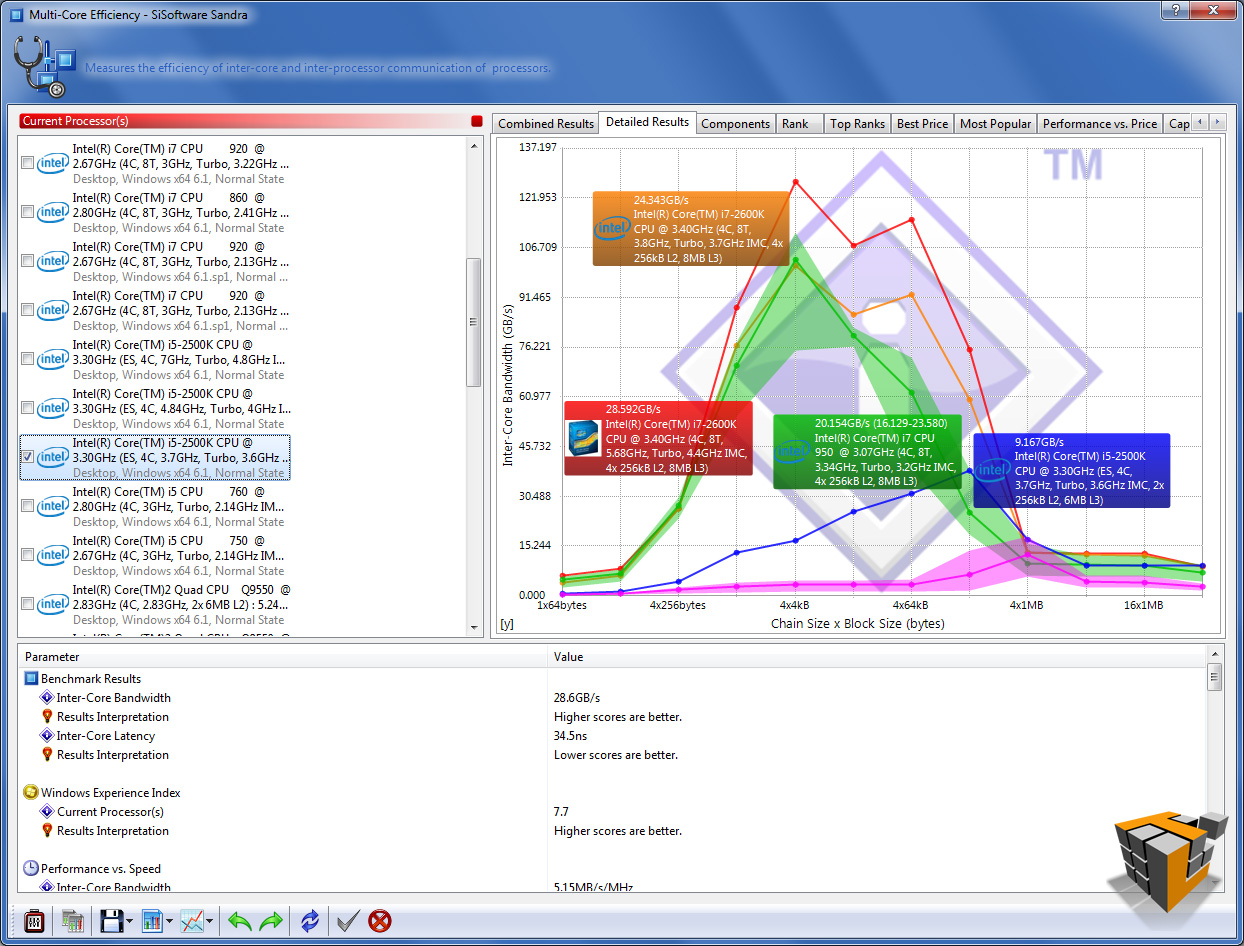

| Multi-Core Efficiency | ||
 |
 |
 |

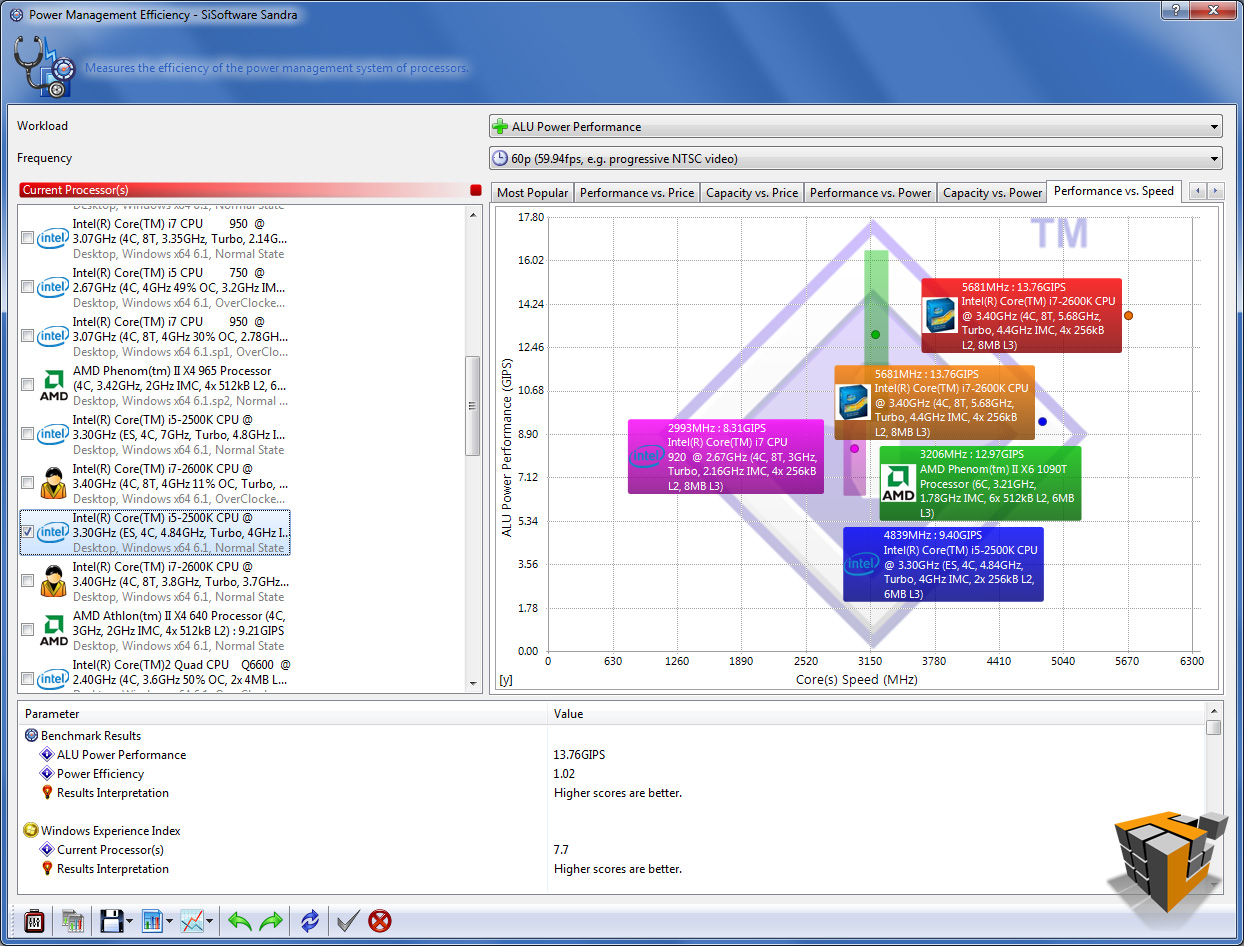

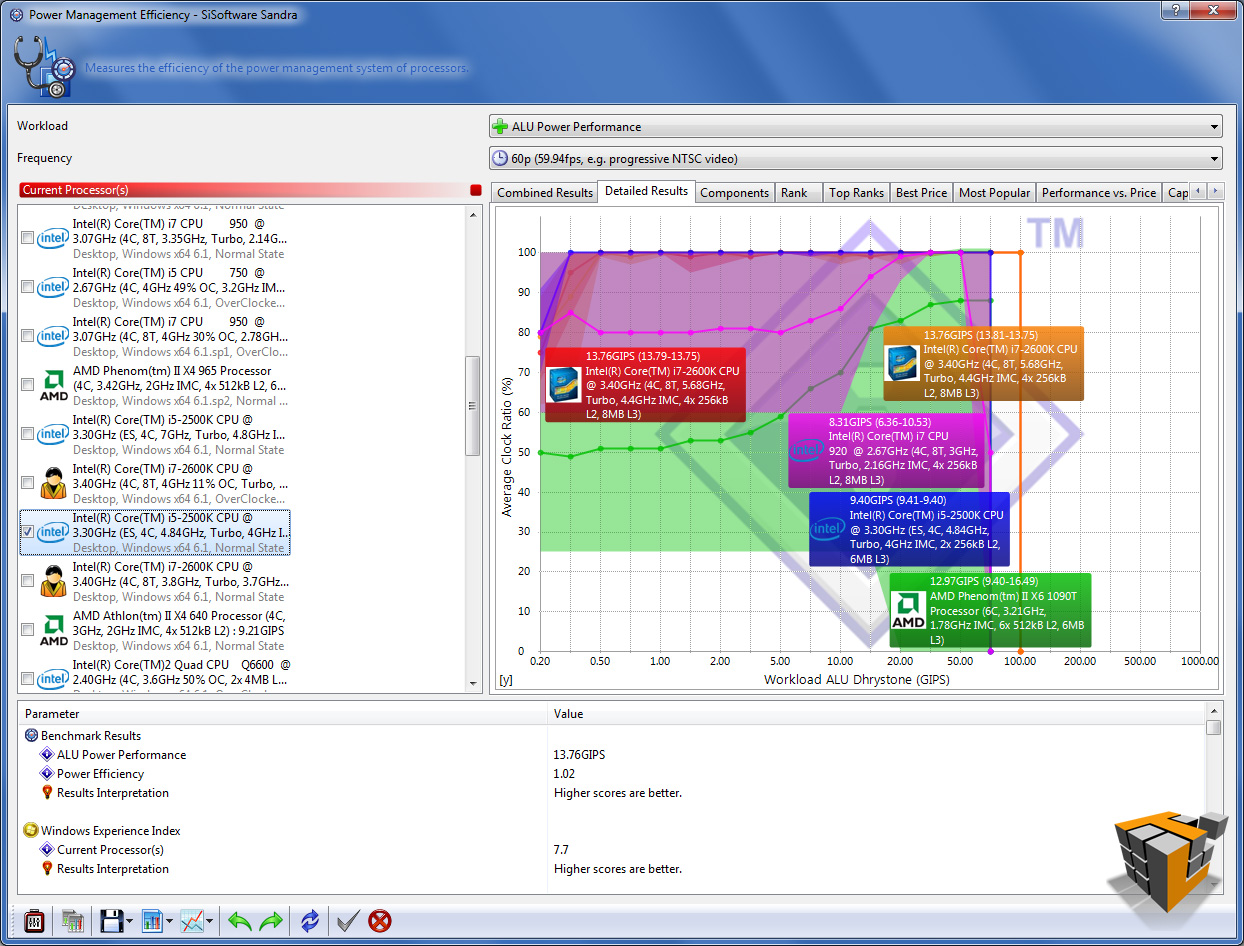

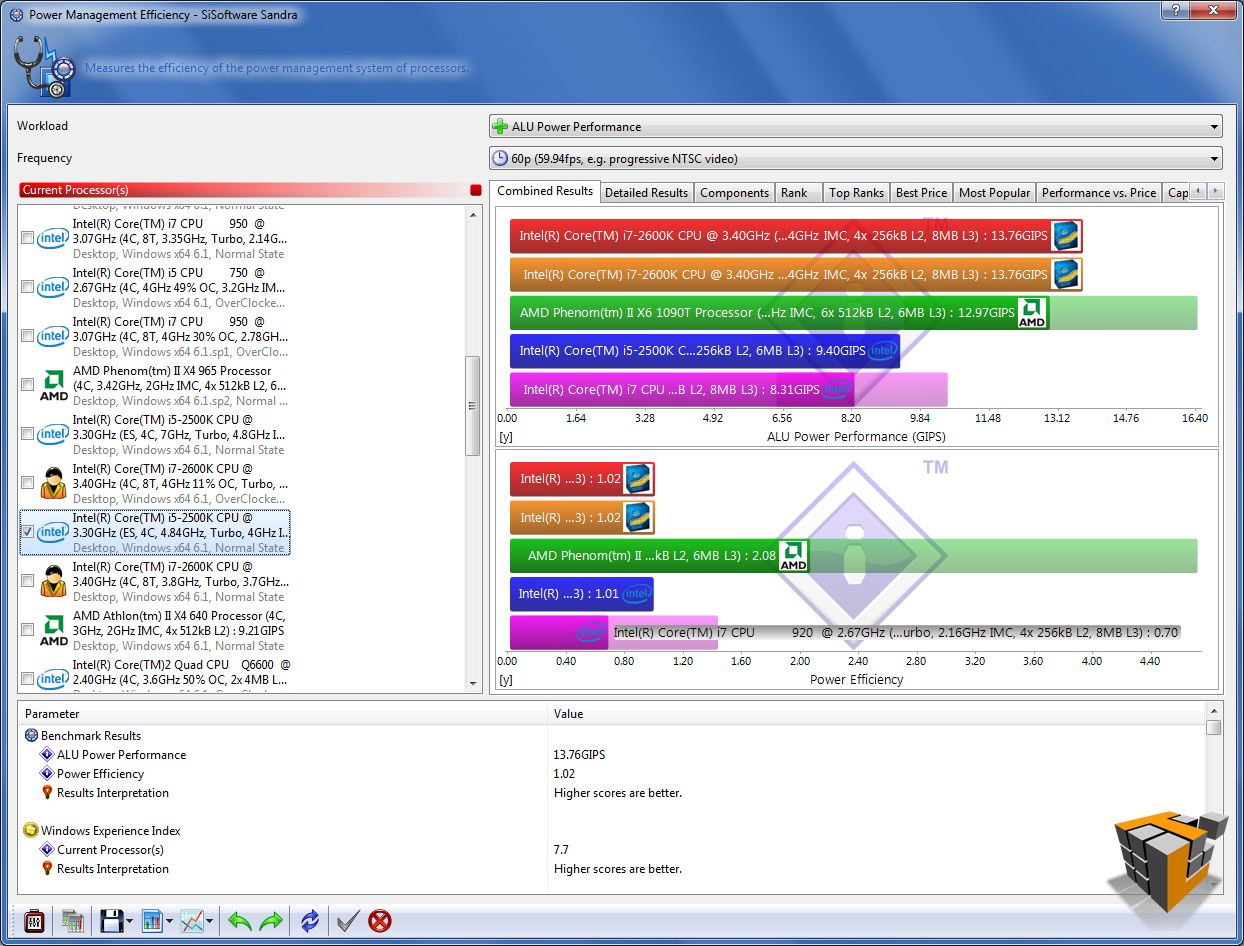

| Power Management Efficiency | ||
 |
 |
 |

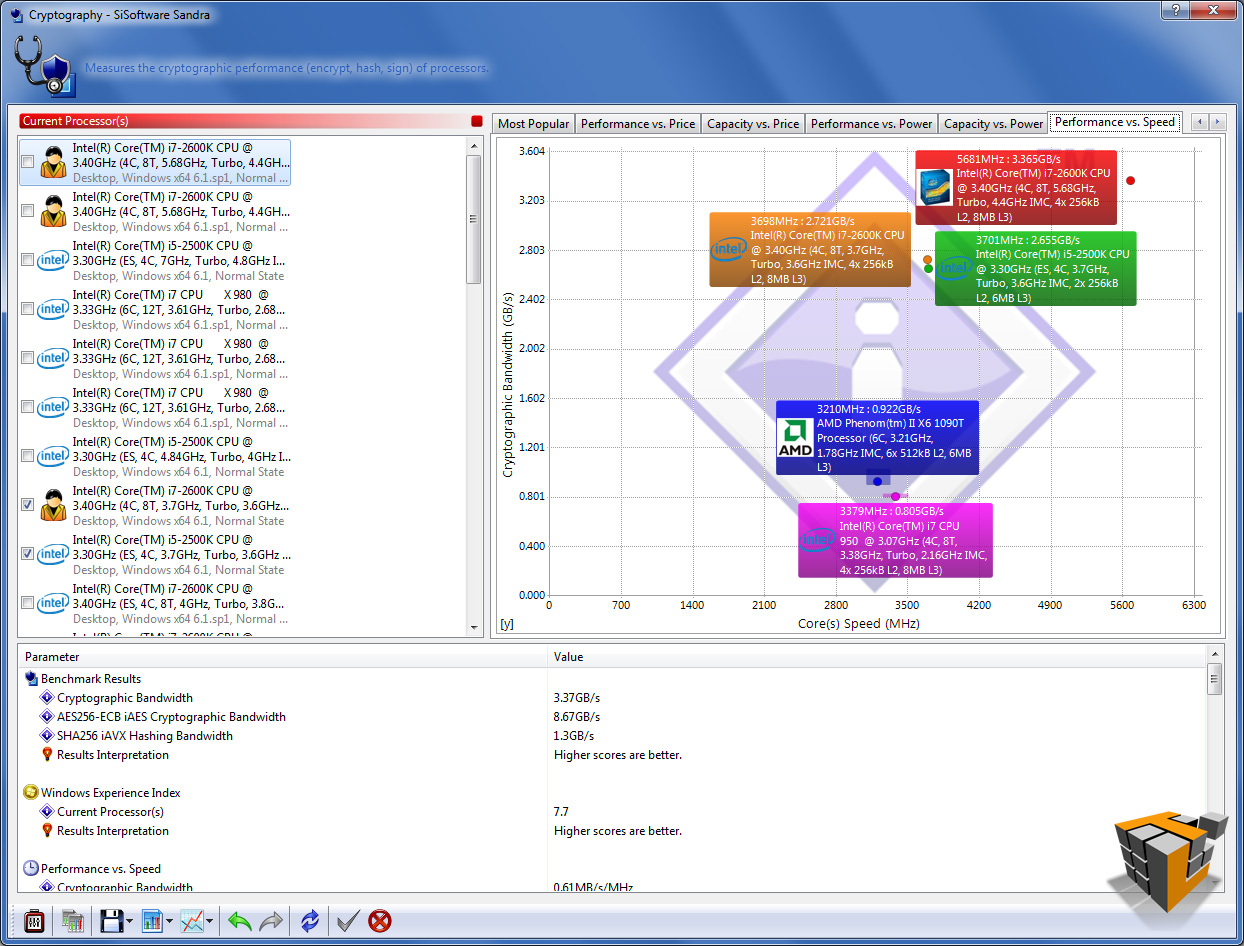

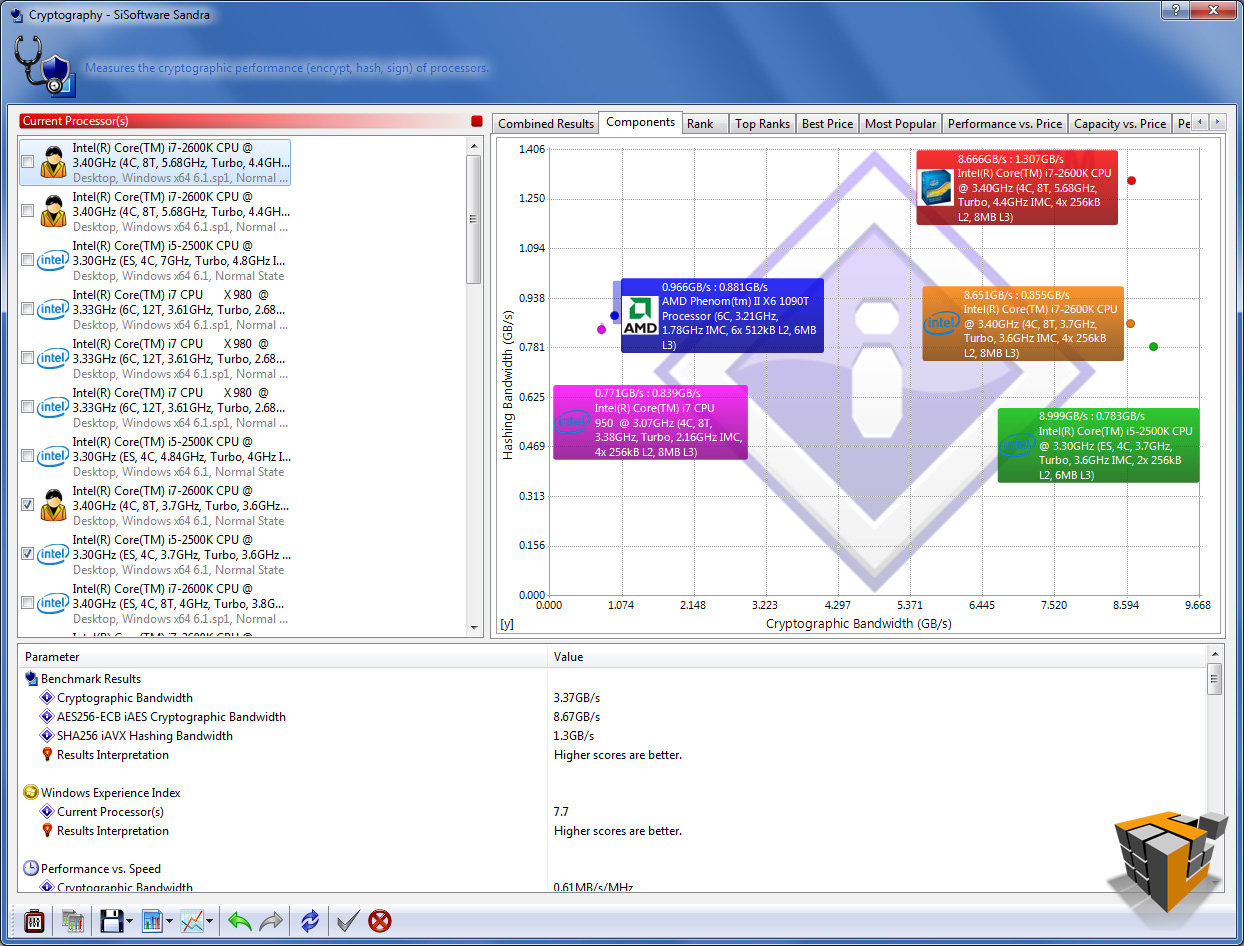

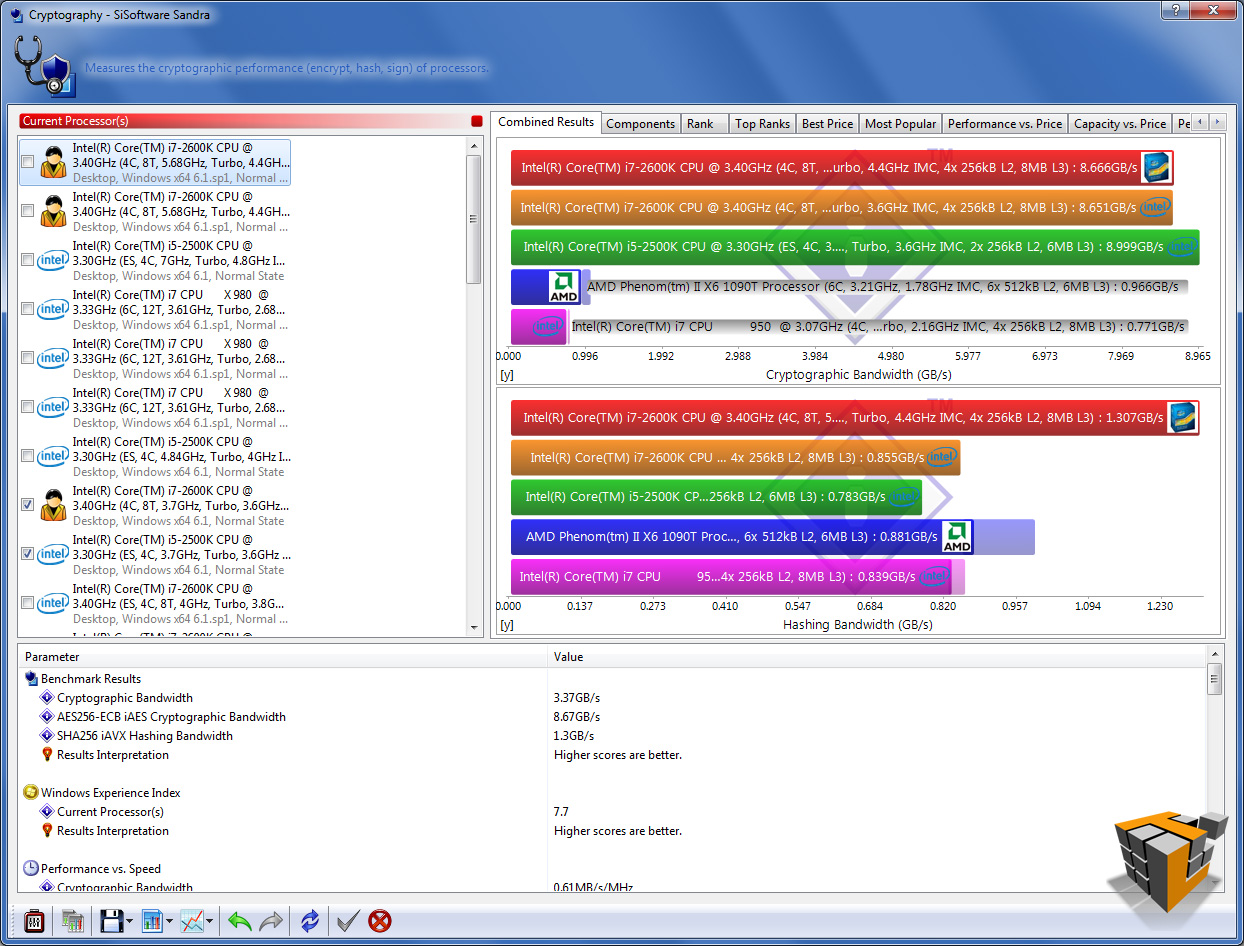

| Cryptography | ||
