Specifications
| Display Support | supports up to 3 display monitor(s) without DisplayPort 4 x Maximum Display Monitor(s) support |
| Output | 1 x HDMI (with 3D) 1 x DisplayPort 1.2 2 x Dual-Link DVI-D |
| GPU | 1040 MHz Core Clock 28 nm Chip 2816 x Stream Processors |
| Video Memory | 4096 MB Size 512 -bit GDDR5 5200 MHz Effective |
| Dimension | 305(L)X113(W)X38(H) mm Size. 2.2 x slot |
| Software | Driver CD |
| Accessories | 8 PIN to 4 PIN Power Cable 6 PIN to 4 PIN Power Cable HDMI 1.4a high speed 1.8 meter cable(Full Retail SKU only) |
Features
- SAPPHIRE Tri-X Cooling Technology – Sapphire exclusive Triple fan design pushes out the heat more efficiently than standard dual fan.
- HDMI (with 3D) – Support for Deep Color, 7.1 High Bitrate Audio, and 3D Stereoscopic, ensuring the highest quality Blu-ray and video experience possible from your PC.
- DisplayPort 1.2 – Doubling the effective bandwidth of previous DisplayPort implementations, DisplayPort 1.2 now includes support for Multi-Stream, allowing you to drive up to four separate monitors from a single DisplayPort 1.2 connector (requires DP1.2 monitors or Multi-Stream compatible hub), Stereoscopic 3D monitor support and adds support for high quality, lossless, 7.1 channel audio formats.
- Advanced GDDR5 Memory Technology – GDDR5 memory provides twice the bandwidth per pin of GDDR3 memory, delivering more speed and higher bandwidth.
- 28 nm GCN (Graphic Core Next) Architecture – The new 28nm GCN Architecture’s more efficient process technology puts more transistors in less space, enabling a dramatic increase in processing power.
- DirectX® 11.2 – The tessellation performance on AMD Radeon R7/ R9 series is up to 2X faster than the previous generation, and DirectCompute performance is also faster to accelerate advanced post-processing, filtering, and anti-aliasing techniques. Direct X11 games has never looked this good.
- Cutting-edge Quad HD display support (4K Support) – The display resolution on AMD Radeon HD7000 series is quadrupled to the resolution of 4KX2K( 4096X2160 ) from the outputs of DisplayPort 1.2 and HDMI.
Packaging and Accessories
 |
 |
 |
Like all Sapphire products, the packaging is pretty straight forward. Inside the outer cover, which lists all of the key features and necessary info, is a plain box holding the graphics card and accessories.

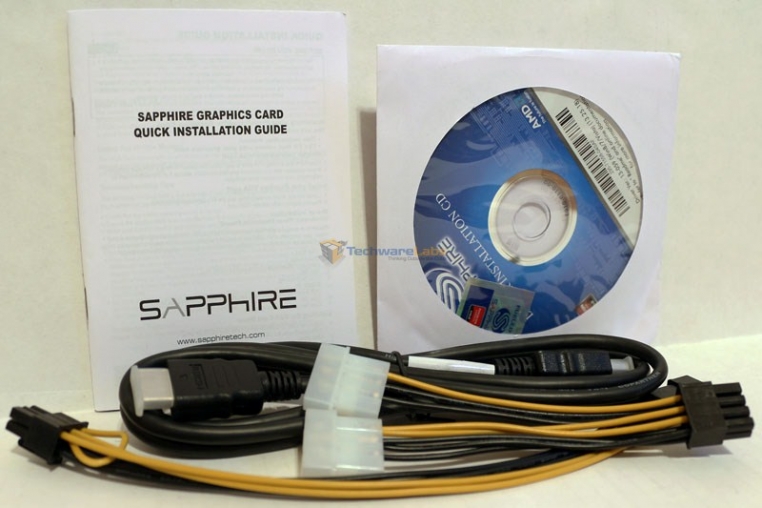

Included with the card itself is your standard assortment of accessories including the driver CD, installation guide, power adaptors, and a 6 foot HDMI cable, which was a nice little bonus.
