Thermaltake Core X1 ITX Case Review

Thermaltake Core X1 ITX Case: Specifications

Product Number CA-1D6-00S1WN-00
Form factor ITX Cube Case
Dimensions 426 x 280 x 471 mm
(16.8 x 11 x 18.5 inch)
Weight 9 kg / 19.9 lb
Side Panel Transparent Window
Finish Exterior & Interior : Black
Material SPCC
Included Fans Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Bays -Accessible : 2 x 5.25’’
-Hidden : 3 x 3.5’’ or 2.5’’ (HDD Cage), 1 x 2.5’’ (M/B Tray)
PCI Slots 3
Motherboard Tray 6.7” x 6.7” (Mini ITX)
I/ O USB 3.0 x 2, HD Audio x 1
Power Supply Standard PS2 PSU (optional)
WC Tube Support Supports 1/2”、3/8”、1/4” water tube
Optional Fan Placements Front:
3 x 120mm
2 x 140mm
1 x 200mm
3 x 120mm
2 x 140mm
2 x 200mm
1 x 120mm or 1 x 140mm
1 x 120mm
Optional Radiator Placements Front:
1 x 120mm or 1 x 240mm
1 x 140mm or 1 x 280mm
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
1 x 120mm or or 1 x 140mm
CPU cooler height limitation:
VGA length limitation:
280mm(with ODD Cage)
400mm(without ODD Cage)
PSU length limitation:
220mm (With Bottom Fan)

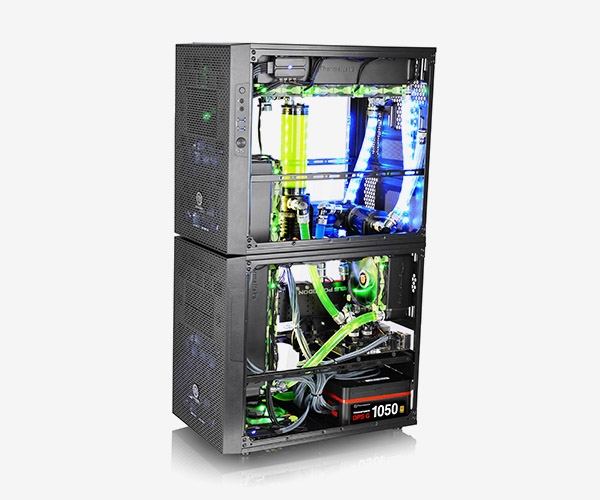

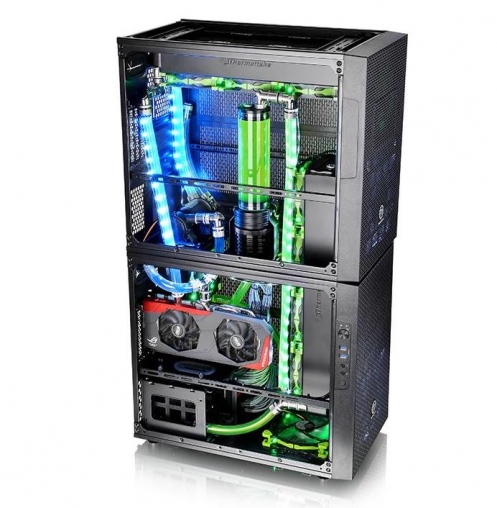

I won’t delve again into the sheer staggering number of potential radiator and fan configurations possible with the Core X1, instead on a more practical note, the Core X1 supports 3 PCI slots for your graphics cards up to 400MM in length, and up to 200MM tall CPU coolers. Storage wise you can have up to six drives in the X1 at the same time, and if you really need more the Core X1 is STACKABLE!

 pic1  pic10

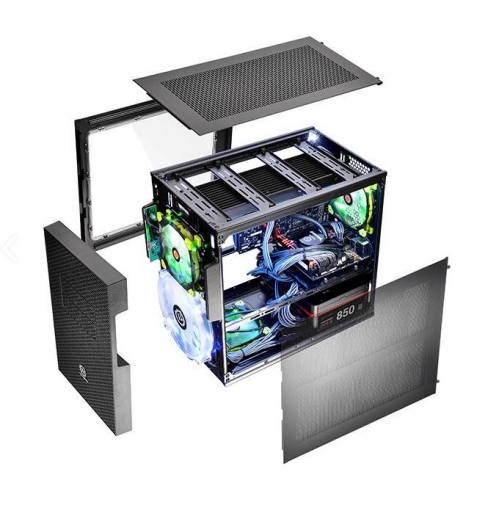

As a fully modular case each of your storage and peripheral brackets is removable and is nearly tool less. A full breakdown of the included brackets and bays is blow:

pic5 pic14



Keeping in line with the fully modular concept the case window and I/O front panel are also interchangeable.
