A closer look:
|
The front of the box as you would see it on a retail shelf. |
The bottom of the box contains the full list of specifications that this switch supports. I have posted this info later in the review. |
Additional information:
The TE100-S24g was built to meet increasing demands for lower power networking devices. It stands to reason the more power your server components draw then the more heat that will likely be produced. The switch itself draws a maximum under a full 24 port load 6.5 watts if you used this 24 hours a day every day you will use a total of 56.979 KWH per year, In my area I am paying about 7 cents per KWH this means my yearly cost would be about 4 dollars. which
Back of the box has a networking diagram and a brief marketing spat. |
A closer look at the diagram on the back. |
Overall the box comes with what you would expect from a current switch with one additional exception which is only used when rack mounting the switch. The switch comes with the side mounts and screws to mount it in a rack. Other than that the switch comes much as you would expect, inside the box you get the TE100-s24g switch, Power cable, rack brackets for rack mounting, and the manual.

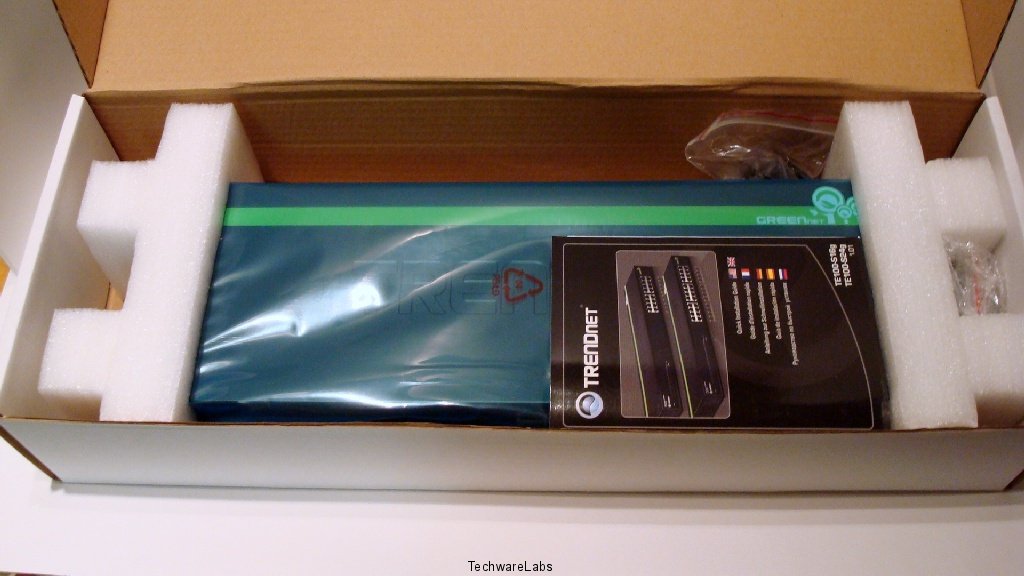

First opening, the unit is wrapped in light blue plastic and secured with Styrofoam
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control |
| Network Media – Also standard networking media though cat 5e and Cat 6 are also used for 100/1000 network switches. | Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m Fast Ethernet: UTP/STP Cat. 5, 5e, 6 up to 100m |
| Data Rate – Also standard for a 10/100 switch. | Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) |
| Protocol / Topology – standard network support | CSMA/CD, Star |
| Power Consumption | 6.5 watts (max.) |
| Switch Fabric – The number of packets per second that a device can be observed to transmit successfully to the correct egress interface in response to a specified offered load while the device drops none of the offered packets | 4.8Gbps forwarding capacity |
| Interface – standard ethernet ports | 24 x 10/100Mbps Auto-MDIX RJ-45 ports |
| RAM Data Buffer – smooths the transfer between multiple connections to ensure steady transfer | 1.25Mbits |
| Diagnostic LED – standard green/amber for status changes | Power, Link/ACT, 100Mbps |
| Power – Pretty standard power supply | 100~240VAC, 50~60Hz, 0.4A Internal Power Supply |
| Dimension | 440 x 140 x 44mm (17.3 x 5.5 x 1.7 in.) |
| Weight | 1.86kg (4.1lb) |
| Temperature-
Pretty standard operating temperature |
Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F) |
| Humidity | Operating: 10% ~ 90% (Non-Condensing) Storage: 5% ~ 90% (Non-Condensing) |
| Certifications – meets EU and US health or environmental requirements | CE, FCC |
All the accessories
 |
(left to right:) Manual, power cable, screws, rack mounting brackets |
