Warpia Easy Dock Pro SWP220

Packaging:

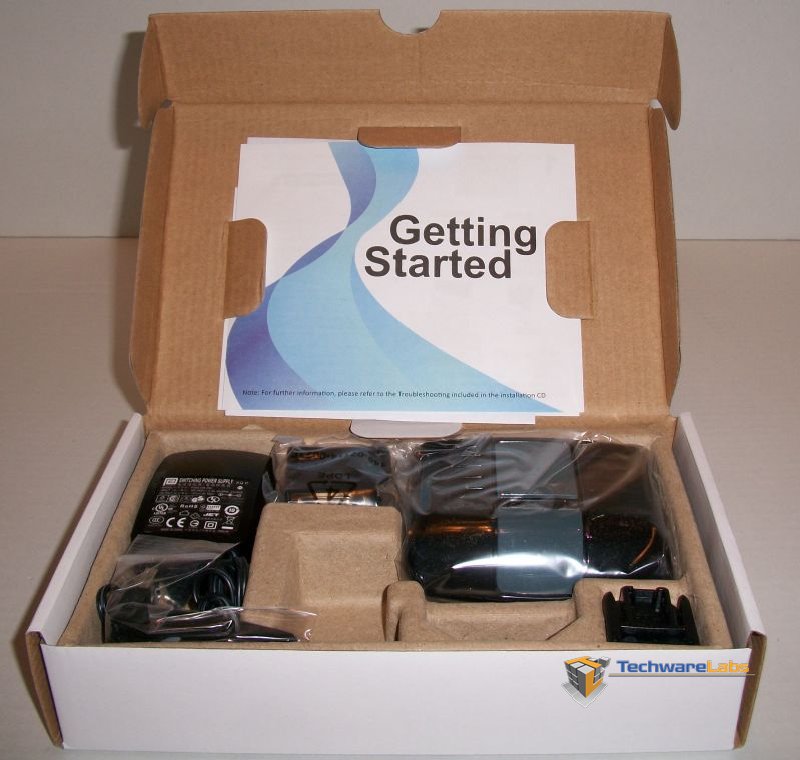

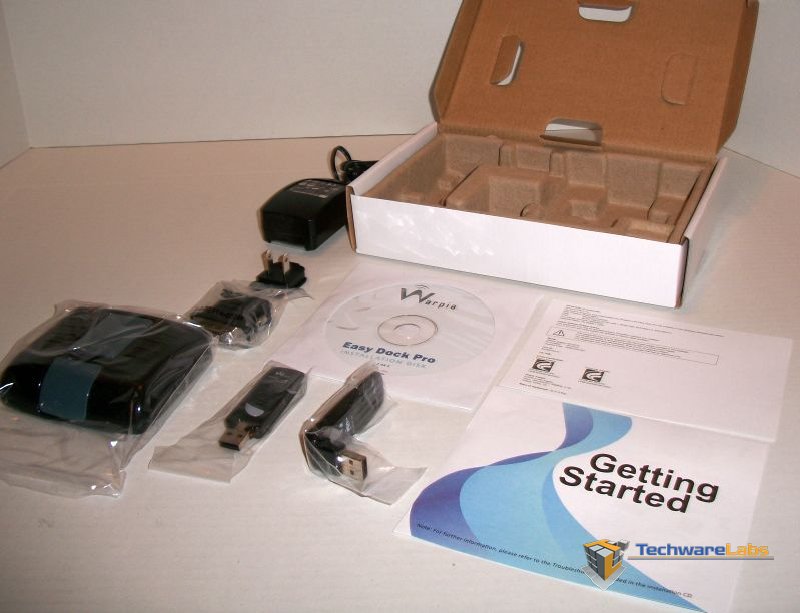

The packaging for the Easy Dock Pro SWP220 is simple and straightforward. Included in the box are the following items:

1 x wall power adapter

1 x outlet prong clip on for the aforementioned power adapter

1 x VGA to DVI adapter

1 x Wireless USB Dongle, for the Base

1 x Right Angle Wireless USB Dongle, for the Computer

1 x Base

1 x Installation Disc

1 x Getting Started Booklet

Features & Specifications:

Docking Base:

• DVI Video Output (convertible to VGA via included DVI to VGA adapter)
• Two USB inputs for use with Mouse, Keyboard, Printer, USB Memory Stick, etc
• 3.5mm stereo audio out jack
• 32-bit True Color support with display resolution of up to 1920 x 1080 (SXGA+)
• Capable of working in both Mirror Mode and extended Mode (TV/monitor as a second screen)
• Power Supply Unit 5VDC

PC and Device Adapters:

• USB type-A male
• Internal antenna
• Single LED – Power/traffic

Standards:

• Wireless USB 1.0, USB-IF certified
• Certified WiMedia PHY and MAC
• 3.168 to 4.752 GHz (WiMedia band group 1)

General

• Up to 30ft line of site range
• 128-bit AES security
• Regulation compliant to US, Japan, Europe, Korea
• Software drivers: Windows® 7/ Vista™SP2/ XP® SP3 and Mac OS X Leopard (10.5)/ Snow Leopard (10.6)
• Input voltage: 100-240V, 50/60Hz
• Operating temperature range: 0-40 C
