Jetway HA12-LF

thumbs jetwaylogo Jetway HA12 LF

Floating in a sea of boards…

As we near CES we see the final boards manufactures release prior to the big name companies changing the game once again, In order to survive the pre-CES rush a manufacture needs to release a product that stands above the rest. Jetway aims to stand above the rest by releasing the Hummer HA12-LF which is a ATX standard AMD AM3 board sporting the 890GX + SB850 chipset and packing both USB3 and SATA6Gbps connections for all your speedy peripherals. The big question is; is this board a bang or will it end up being a bust just in time for CES 2011, join me as I show you just what this board can do.

thumbs ha12 Jetway HA12 LF

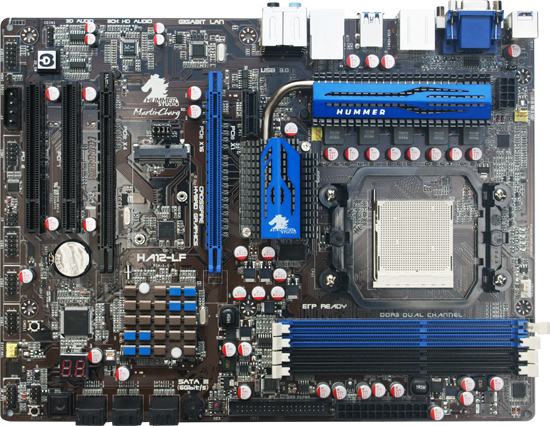

The slick HA12-LF

Testing the board will take place on a standard rig and will include overclocking as well as stability testing.

Specifications

CPU Supports AMD Socket AM3
AMD Athlon I & II and Phenom I & II
Chipset AMD 890GX Chipset + AMD SB850 Chipset
Hyper Transport Bus HT 3.0
Memory Dual Channel DDR3 memory technology 4X 240-pin DDR3 DIMM slots

Supports DDR3 1333/1066(OC 1600) non-ECC ,un-buffered memory

Max 16GB

Expansion slots 2x 32-bit PCI slots

2x PCI Express 2.0 x16 slots by 8-LANE

1x PCI Express x1 slot

1x Mini PCI Express slot

(PCI-E x1 slot and MINI PCI-E slot cannot be used at the same time)

Storage AMD™SB850 Southbridge Chipset :

6x Serial ATA3 6Gb/s connectors

Supports HDDs with RAID 0, 1,5,10,JBOD functions

1x Ultra DMA 133 IDE connector

Audio Realtek ALC883 HD Audio with 8-Channels
Ethernet LAN Realtek RTL 8111DL PCI express Gigabit LAN
USB Embedded 10x USB2.0 & 2x USB 3.0
Special Features Advanced power design that supports the latest Scoket-AM3 K10 CPU’s

Support ACPI S3 & G.P.I Technlogy & Core enchancer

3D audio Function and Debug port

Integrated DDR3 128mb sideport memory

Rear I/O 2x USB3.0 4x USB 2.0

1x PS/2 KB/MS port

1x VGA/ 1x DVI , 1x HDMI

1x RJ45

1x Optical out

Audio I/O ports

Internal I/O 3 USB 2.0 headers

CPU / Chassis fan connectors

1x 8pin ATX 12v connector

1x 24 Pin ATX power connector

1x COM headers

1x audio headers

BIOS 16mb SMTx1 Flash Rom
Form Factor ATX form factor ( 230mm x 305mm )  ( 9in x 12in)
  Previous Page                  Next Page
