IStarUSA S-9 Storm Series


Introduction:

Looking for a computer case is mostly a personal preference.  Now that there are so many choices on the market to pick from, such a small thing can become a big hassle.  When looking for a computer case there are three main things that people look for: functionality, air flow performance, and attractiveness.  This case, the S-9 Storm Series, has some degree of all of these key features.  It has an I/O panel located on the top of the computer, ventilation for processor and graphic cards, and also has a unique style.

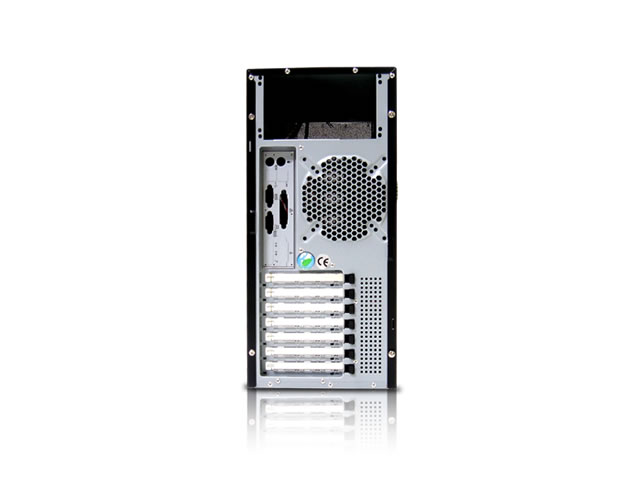

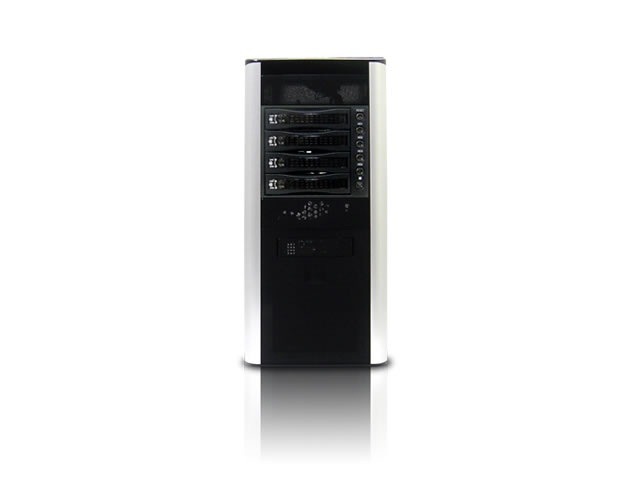

s9_2.jpg s9_3.jpg

IStarUSA Take:

“IStarUSA introduces a new modern, tool-less assembly design S-9-H34 Mid-Tower ATX chassis. It provides innovative features such as aluminum top mount USB2.0, Audio, Firewire 1394 for easy access, metal mesh bezel with air filter for great cooling, excellent thermal solution meets CAG 1.1 standard. S-9-H34 supports iStarUSA redundant power supply that keeps system running without any interruptions. With a 4-Bay hot-swappable SATA converter cage, it is best suited for storage server applications.”

Packaging and Contents:

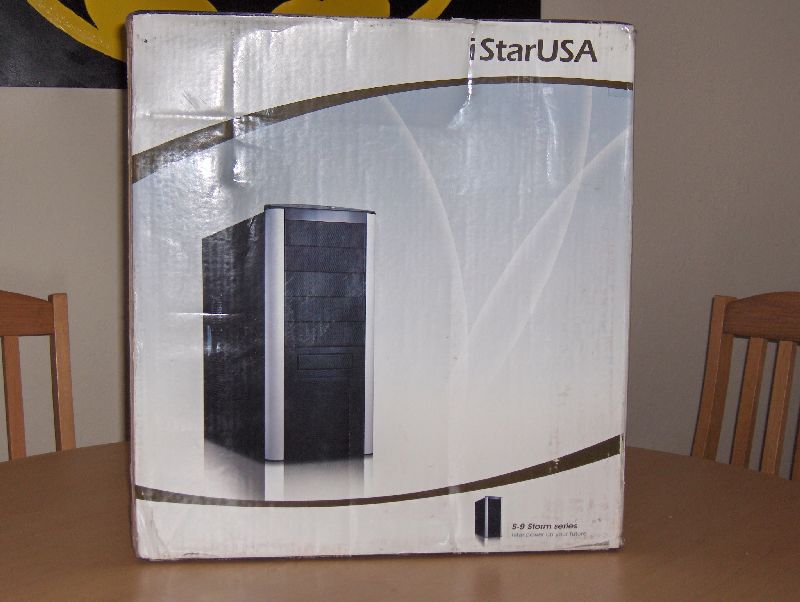

istarcase_1.jpg istarcase_7.jpg
istarcase_2.jpg istarcase_3.jpg

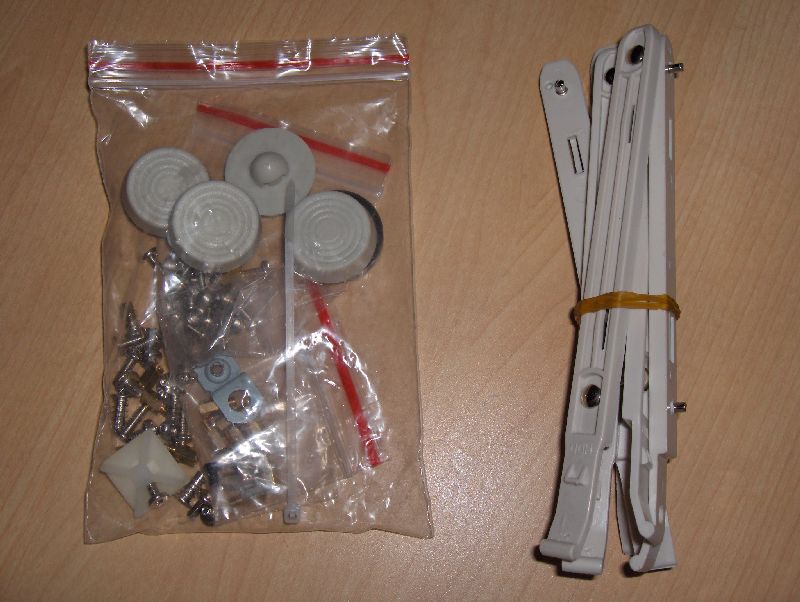

Contents:
S-9 Storm Case
Easy Assembly Drive Locks
4x Computer Feet
Motherboard Standoff
Screws

Features:

  • Tool-less Thumb Screws
  • Top Access I/O Panel
  • Aluminum Dash Plate
  • 4 Hot-Swappable SATA II Drive Bay
  • Meet CAG1.1 Intel Thermal Standard
  • Optional iStarUSA Mini Redundant Power Supply
  • Easy Assembling Drives
  • Easy Assembling Expansion Slots
  • Metal Mesh Bezel with Air Filter

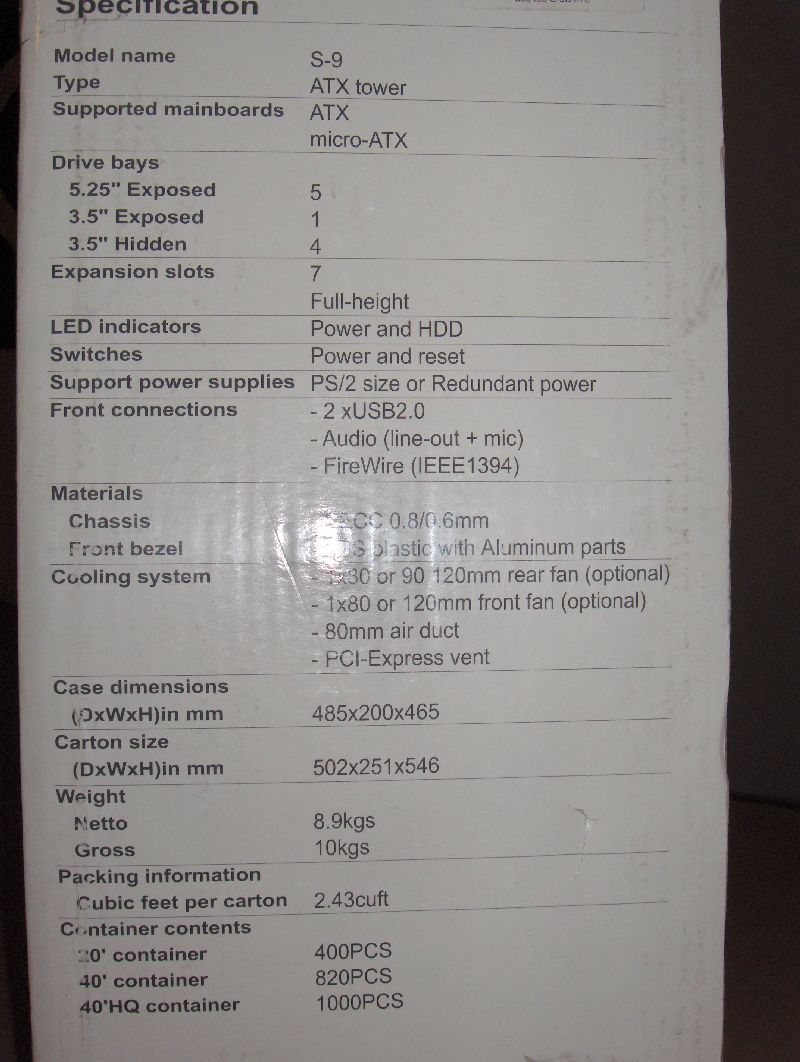

Specifications:

Model Number S-9-H34
RoHS Compliance Version Yes
Standard Drive Bays Hot-swap Drive: 4xSATA

3.5″ Drive: 1

3.5″ Drive (internal): 4

5.25″ Drive: 2

Cooling Fan [Option] [2x120mm]
Mainboard Size (inch) 12 x 10
Front Connector 2xUSB 2.0

1xIEEE1394

1xLine out

1xMicrophone

Indicators LEDs for Power ON/OFF, HDD
Switches Power ON/OFF, System Reset
Speaker 0.4W Built-In
Material of Front Bezel Aluminum
Material of Main Chassis 0.8/0.6 SECC/SGCC
Color of Front Bezel Black
Color of Main Chassis Black
Dimensions (W x H x D) 8.2 x 17.8 x 20.2 inch
